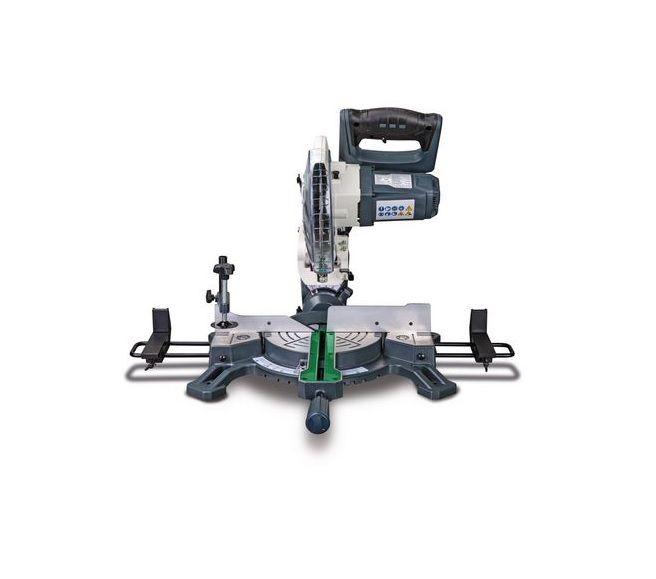

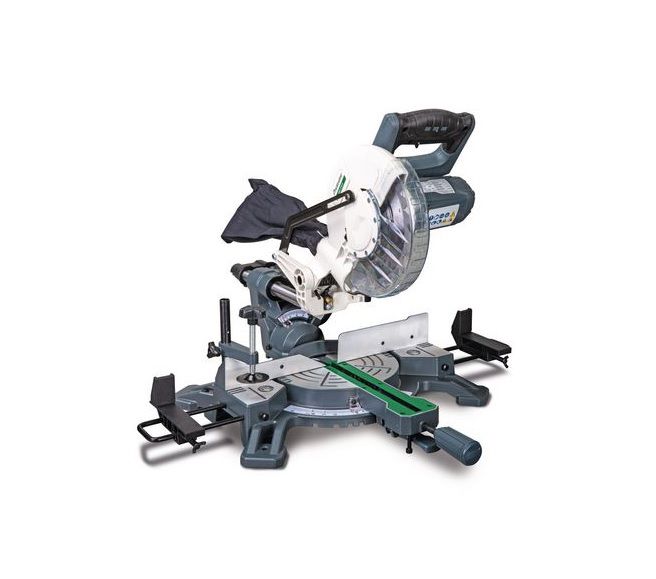

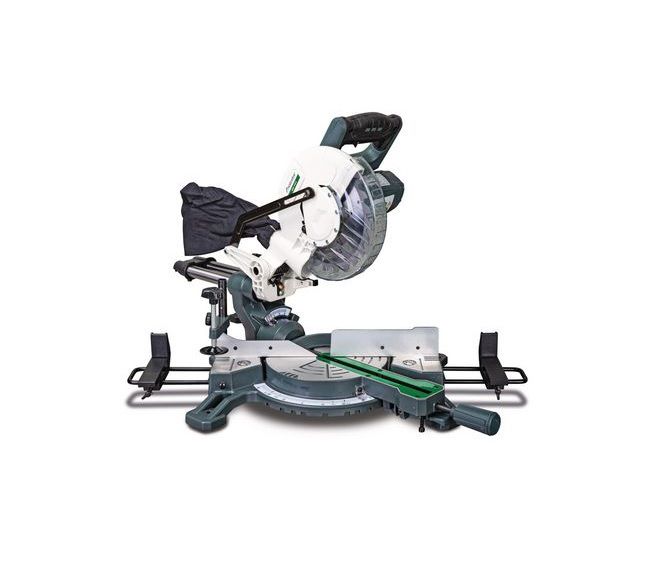

Sturmer Holzstar KGZ 210 E Sliding Crosscut Mitre Saw 210mm 1500W 230v
Product Code: STU/5702210
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£227.99 Inc. VAT
£189.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Holzstar

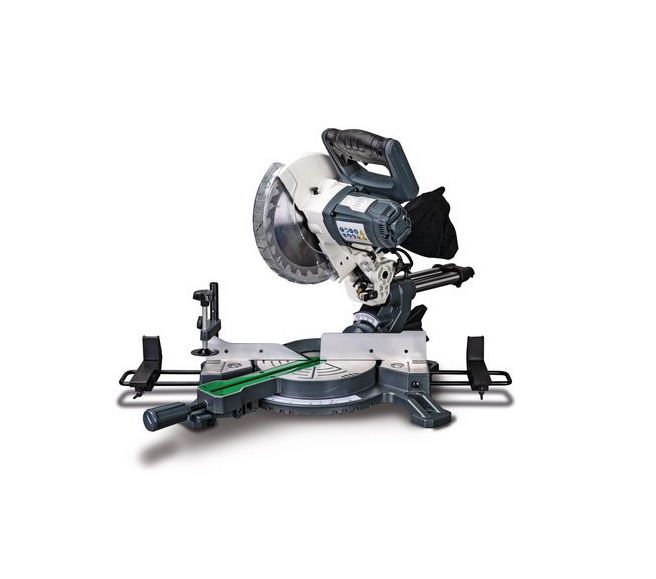

KGZ 210 E Sliding Crosscut Mitre Saw 210mm 1500W 230v
ref: 5702210
Key Features
- KGZ 210 E 210mm Sliding crosscut mitre saw + laser + 1500W motor 230v

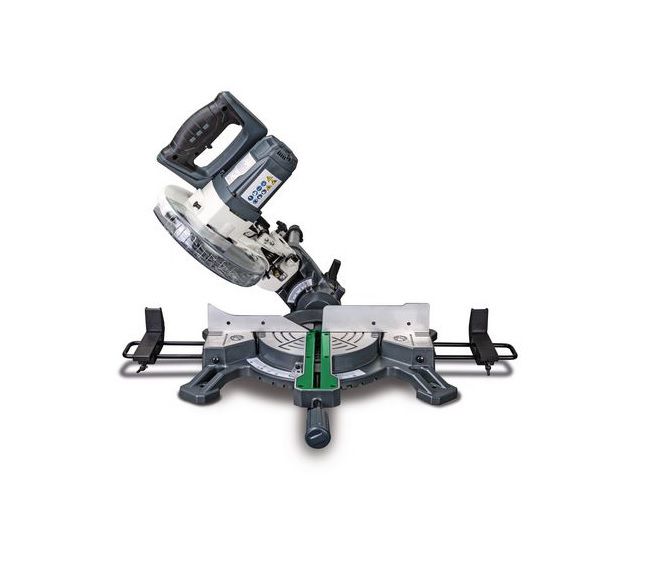

- Infinitely adjustable double mitre and tilt to the left

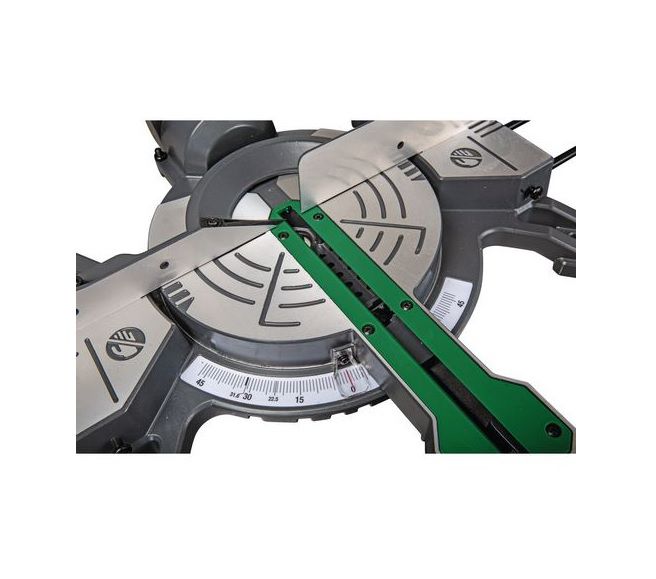

- Base plate and rotary table made of die-cast aluminium, at the same time compact, robust and easily transportable

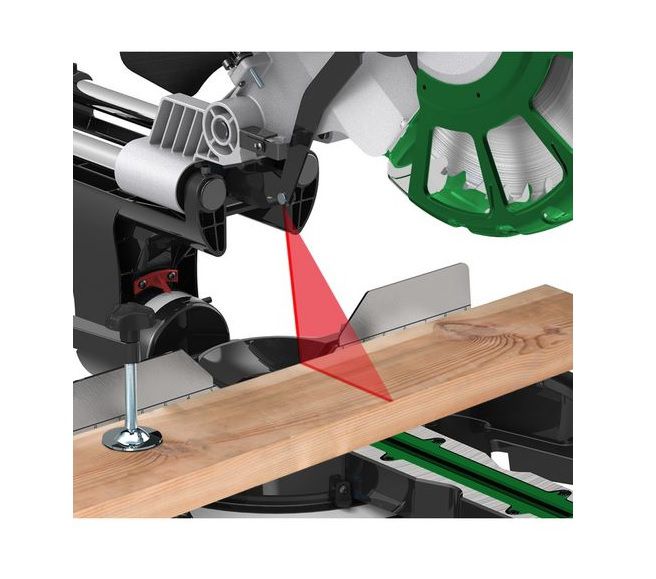

- Laser projection on the workpiece for precise control of the cutting position

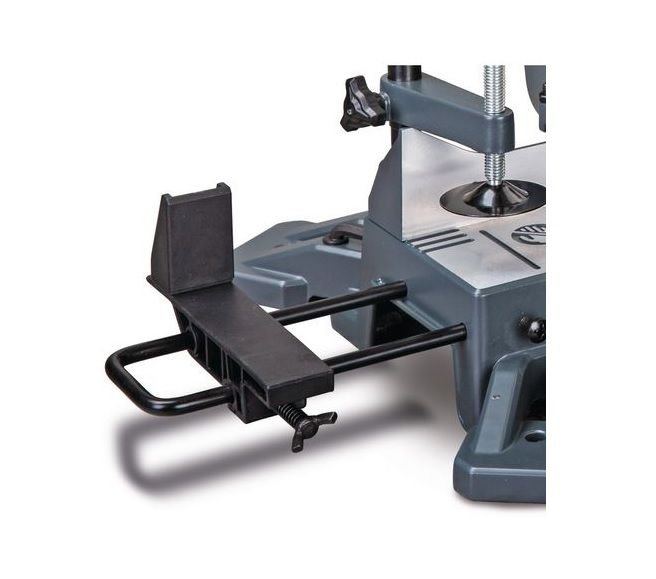

- Laterally extendable support aids for longer workpieces

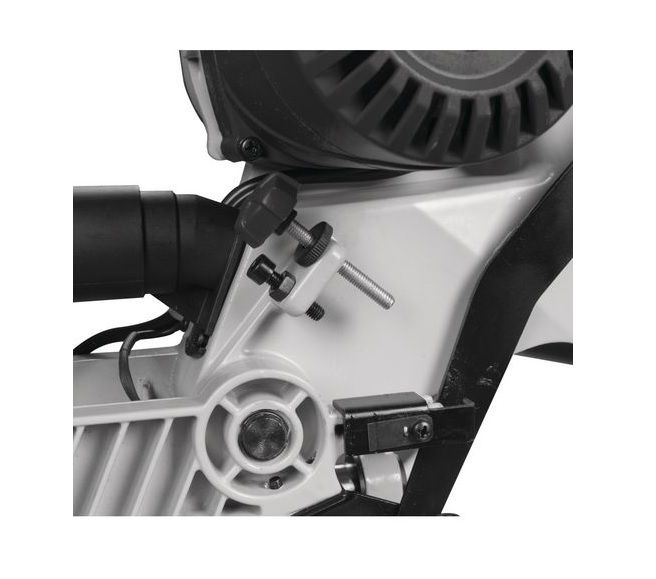

- Double adjustable cross-cut depth limiter
- Pull function for extended cutting range
- Standard with hold-down clamp for safe workpiece locking
- Extraction connection for dust collection bag or connection of an external extraction system
- Includes hold-down clamp, dust collection bag, blade
Technical details
- Saw band speed: 4500 min¯¹
- Saw blade diameter: 210 mm

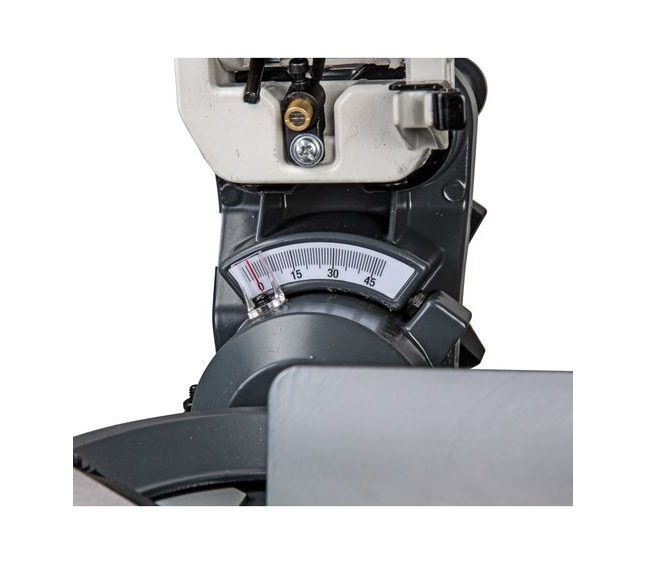

- Max. bevel angle range left: 45 °
- Max. mitre left: 45 °
- Max. mitre right: 45 °
- VPE: 1
Cutting capacity
- 0° inclination / 0° mitre: 220 x 70 mm
- -45° inclination / 0° mitre: 155 x 70 mm
- 0° inclination / -45° mitre: 220 x 35 mm
- -45° inclination / -45° mitre: 155 x 35 mm
Dimensions and weights
- Length approx.: 650 mm
- Width/depth approx.: 450 mm
- Height approx.: 430 mm
- Weight approx.: 10.5 kg
Electrical Data
- Main motor: 1,5 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
