For Finding eXcellent Tools ..... look no further than Westcountry Machinery 4 Wood

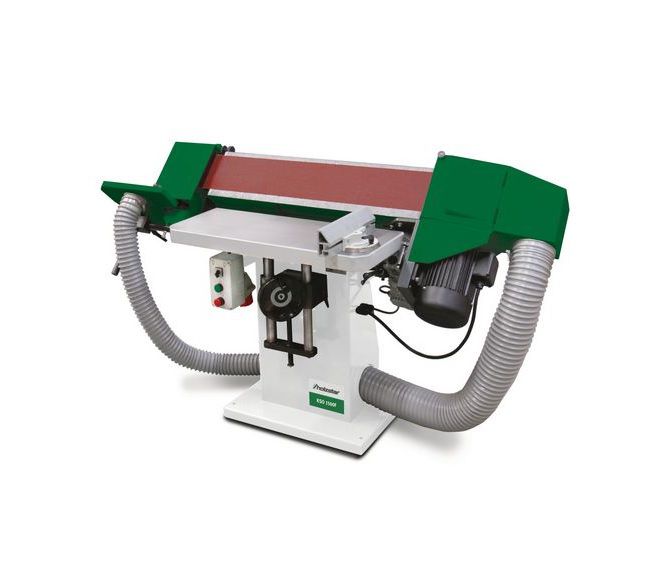

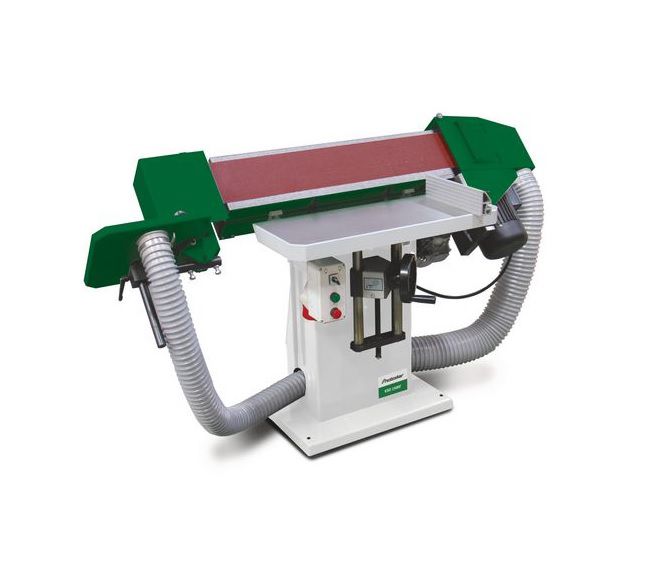

Sturmer Holzstar KSO 1500 F Osc' Tilting Belt and Spindle Sander 3000W 415v

X
Product Code: STU/5901500
Brand: Stuermer
Stock Expected
Delivery typically within 2-3 weeks
£3,599.99 Inc. VAT
£2,999.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Holzstar

KSO 1500 F Osc' Tilting Belt and Spindle Sander 3000W 415v

ref: 5901500



Key Features

  • KSO 1500 F 152mm Osciallating tilting belt & spindle sander + handwheel R&F work table + mitre att + welded steel base + 3000W motor 415v
  • With swiveling sanding unit and oscillating sanding belt for perfect sanding results
  • Machine stand made of welded steel guarantees high torsional rigidity and vibration-free working
  • sanding unit can be swiveled up to 45 ° via lever for sanding straight and bevelled edges
  • Oscillating sanding belt with separate gear motor for better sanding results
  • Oscillation optionally switchable
  • sanding sole with graphite coating for a longer service life of the sanding belt
  • Height-adjustable additional table with suction for sanding radii
  • Automatic compensation of belt length differences due to spring-loaded belt tension
  • Includes mitre, sanding belt K100.



Technical details

Dimensions and weights

  • Length approx.: 1720 mm
  • Width/depth approx.: 700 mm
  • Height approx.: 1030 mm
  • Weight approx.: 180 kg

Drive output

  • Oscillation motor: 0.25 kW

Electrical Data

  • Supply voltage: 400 V
  • Mains frequency: 50 Hz

Extraction port

  • Extraction port diameter: 120/80 mm

Sanding machine

  • Sanding belt length: 2600 mm
  • Sanding belt width: 150 mm
  • Circumferential belt speed(s): 20 m/s
  • Sanding surface length: 850 mm
  • Sanding surface width: 200 mm

Work top(s)

  • Work table height adjustment: 180 mm
  • Longitudinal table length: 750 mm
  • Longitudinal table width: 300 mm
  • Longitudinal table height adjustment: 180 mm
  • Min. cross table height: 740 mm
  • VPE: 1
