Sturmer Holzstar KSO 850 Osc' Tilting Belt and Spindle Sander 2200W 230v

X
Product Code: STU/5900851
Brand: Stuermer
Stock Expected
Delivery typically within 2-3 weeks
£1,619.99 Inc. VAT
£1,349.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Holzstar

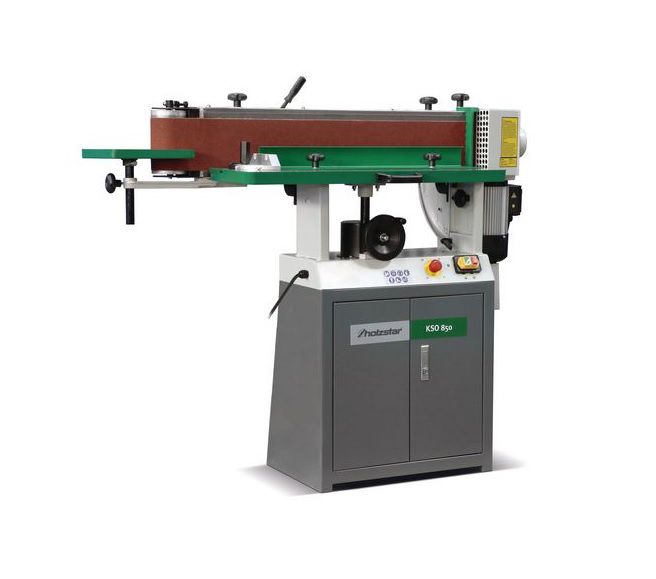

KSO 850 Osc' Tilting Belt and Spindle Sander 2200W 230v

ref: 5900851



Key Features

  • KSO 850 15mm Osciallating tilting belt & spindle sander + handwheel R&F work table w T slots + mitre att + cabinet base + 2200W motor 230v 16 Amp
  • With oscillating sanding belt for a good removal rate, a clean sanding pattern and a longer service life of the sanding belt
  • With height-adjustable sanding table

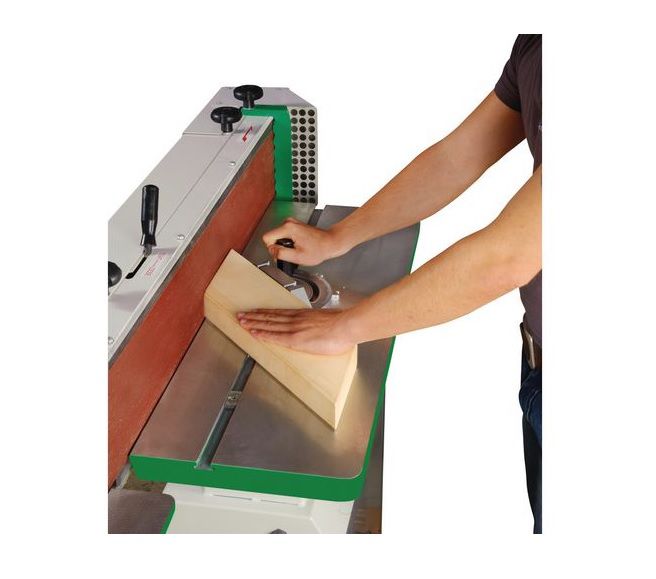

  • Standard with -45 ° to + 45 ° infinitely adjustable miter and workpiece stop

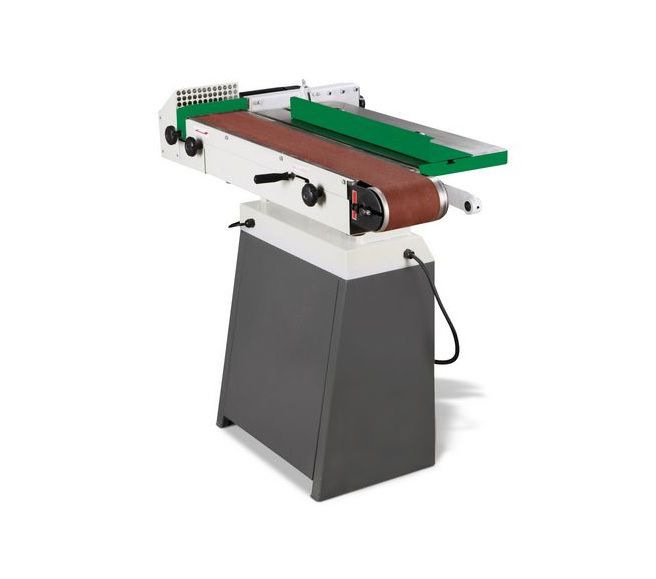

  • Infinitely tiltable sanding unit (0 ° -90 °) for vertical and horizontal sanding

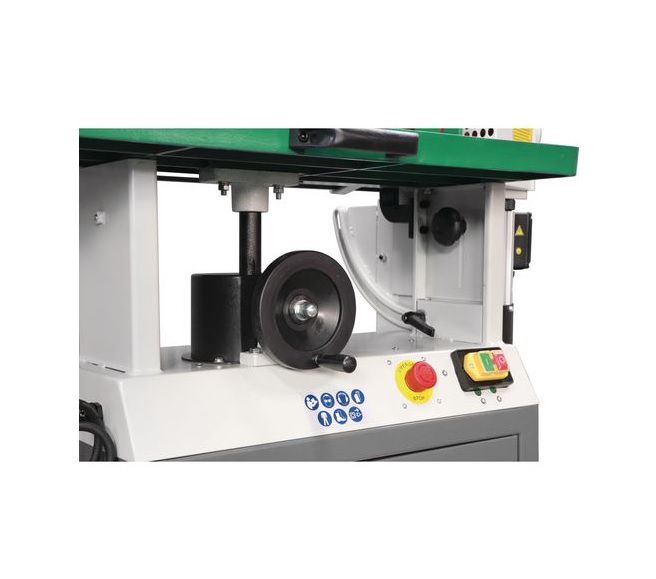

  • Table height adjustment by handwheel
  • Robust gray cast iron work table with T-slots, stable machine stand when working

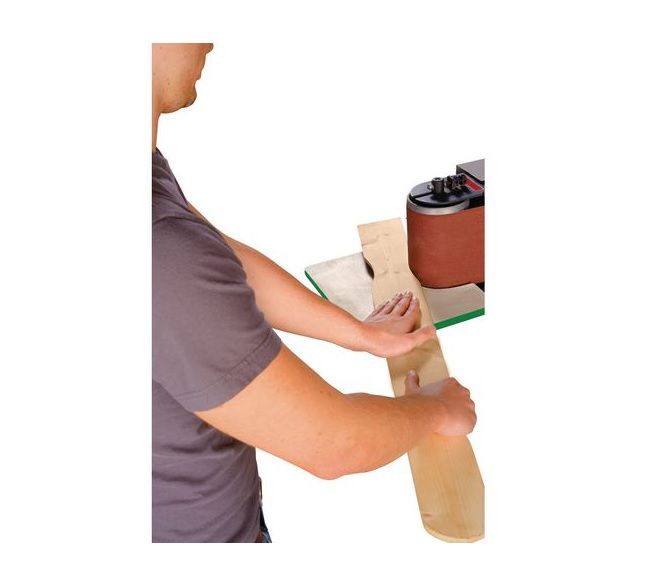

  • With height-adjustable additional table for contour sanding
  • Quick and easy sanding belt change via quick clamping system
  • Spring-loaded clamping device for a uniform belt tension
  • Sanding sole with graphite coating as standard
  • Extraction nozzle Ø 100 mm
  • With lockable storage option in the standard substructure



Technical details

Dimensions and weights

  • Length approx.: 1430 mm
  • Width/depth approx.: 600 mm
  • Height approx.: 1250 mm
  • Weight approx.: 187 kg

Electrical Data

  • Absorbed power drive motor: 2.2 kW
  • Mains frequency: 50 Hz

Extraction port

  • Extraction port diameter: 100 mm

Sanding machine

  • Sanding belt length: 2515 mm
  • Sanding belt width: 150 mm
  • Circumferential belt speed(s): 16 m/s
  • Sanding surface length: 950 mm
  • Sanding surface width: 180 mm

Work top(s)

  • Work table height adjustment: 80 mm
  • Longitudinal table length: 850 mm
  • Longitudinal table width: 300 mm
  • Longitudinal table height adjustment: 80 mm
  • Min. cross table height: 965 mm
