Sturmer Holzstar OBSS 100 Oscillating Spindle and Belt Sander 450W 230v
Product Code: STU/5903501
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£299.99 Inc. VAT
£249.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Holzstar

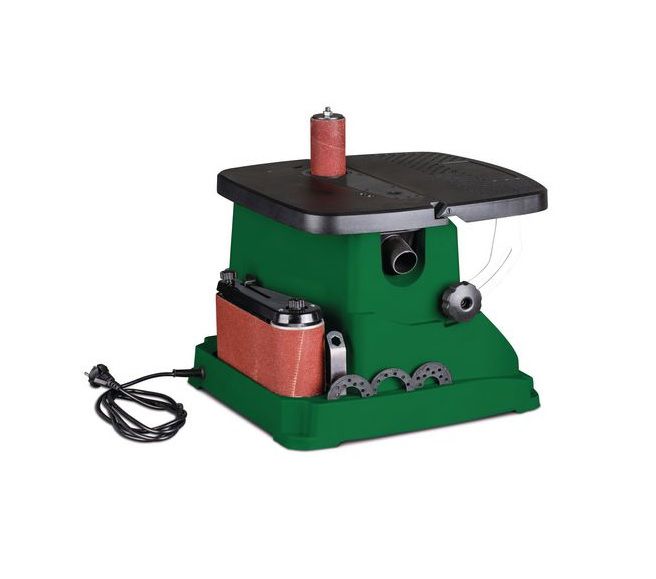

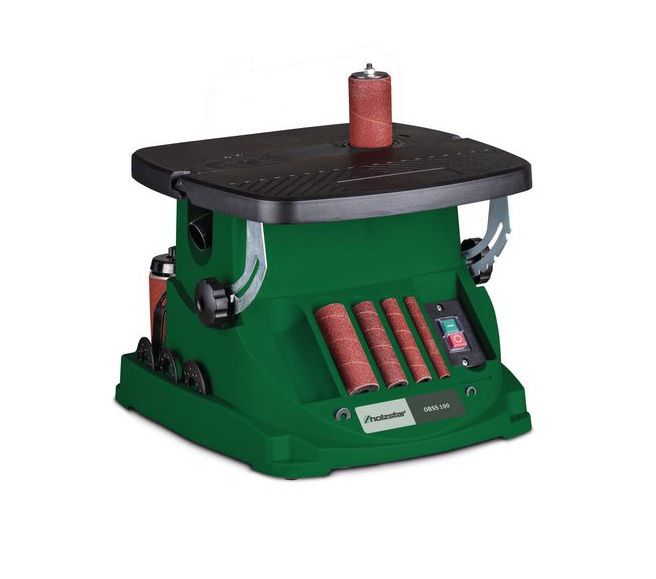

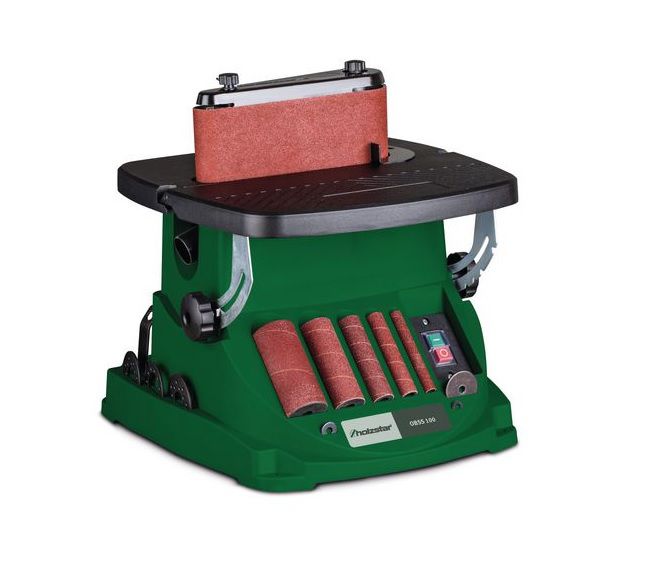

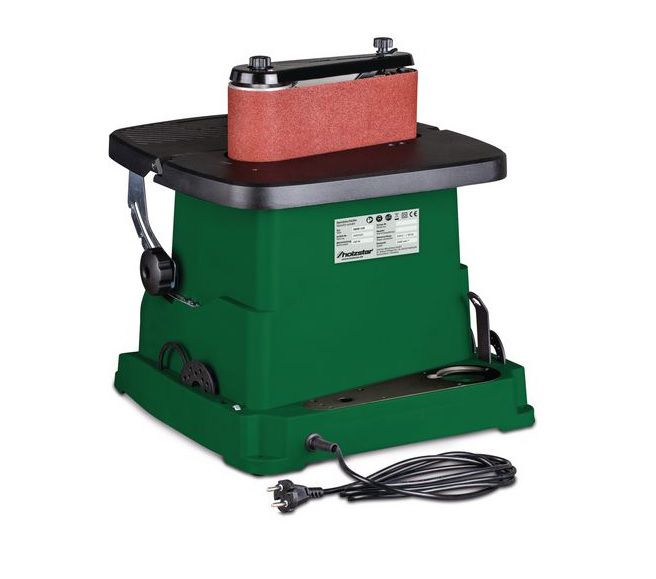

OBSS 100 Oscillating Spindle and Belt Sander with Accessories 450W 230v
ref: 5903501
Key Features
- OBSS 100 Oscilating belt & bobbin sander + cast iron table + generous accy kit + 450W motor 230v
- For sanding shaped parts, inner radii, round and straight edges, recesses or cut-outs

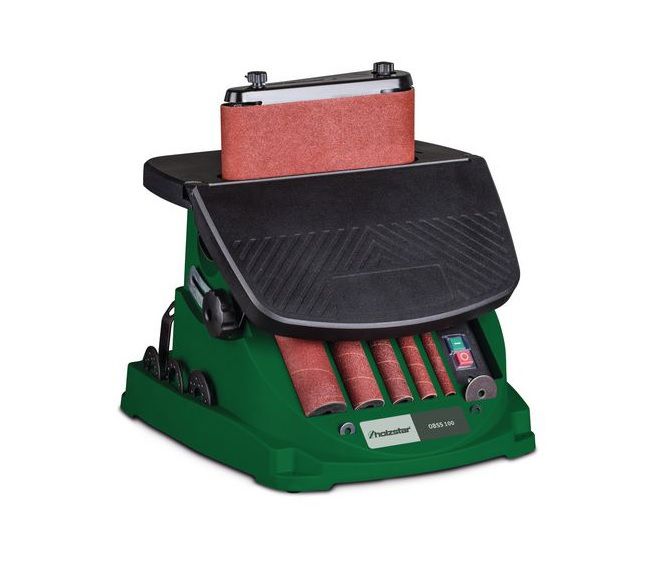

- Tilting work table continuously adjustable from 0 ° to 45 °. Additionally fixed angle steps at 0 °, 15 °, 22.5 °, 30 ° and 45 °
- Safe and clean working thanks to integrated extraction nozzle for connection of an external suction unit
- Practical storage for accessories and assembly tools

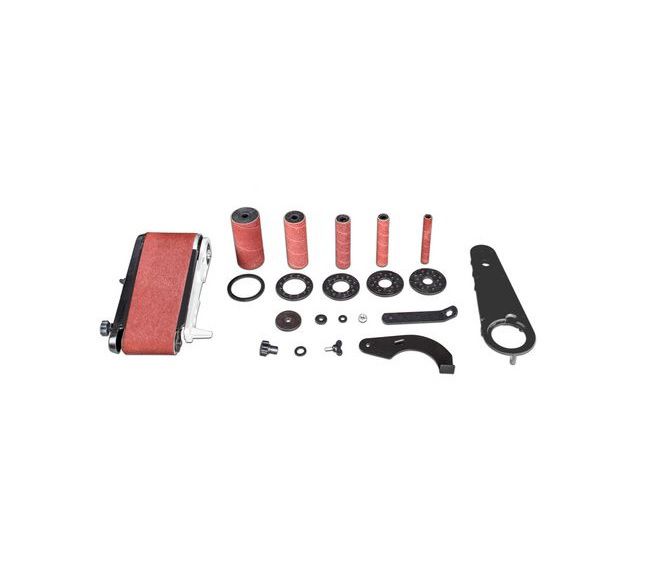

Items included
- 5 sanding sleeves K80, Ø 13/19/26/38/51 mm
- 4 rubberized sanding rollers, length 115 mm, Ø 19/26/38/51 mm
- 5 table inserts Ø 13/19/26/38/51 mm
- 3 spindle discs Ø 16/22/44 mm
- Sanding belt attachment
- Cover for sanding belt attachment
- Workpiece stop
- Assembly tool
- Sanding belt
- 3 Spindle discs Ø 16/22/35
Technical details
Dimensions and weights
- Length approx.: 530 mm
- Width/depth approx.: 480 mm
- Height approx.: 480 mm
- Weight approx.: 12 kg
Electrical Data
- Absorbed power drive motor: 0,45 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter: 38 mm
Sanding machine
- Sanding belt length: 610 mm
- Sanding belt width: 100 mm
- Circumferential belt speed(s): 8 m/s
- Sanding surface length: 220 mm
- Sanding surface width: 100 mm
- Max. sanding height: 98 mm
- Sanding sleeves diameter: 13, 19, 26, 38, 51 mm
- Spindle diameter: 12.7 mm
- Oscillation stroke: 16 mm
- Oscillation: 58 min¯¹
Work top(s)
- Work table length: 430 mm
- Work table width: 410 mm
- VPE: 1
