Sturmer Holzstar TF 170 E Spindle Moulder 4-Speed 1500W 230v Package

Product Code: STU/5901917-PK

Brand: Stuermer

Stock Available

Delivery typically 3-4 days

Was £1,871.86 Inc. VAT

Now £1,829.86!

£1,524.88 Exc. VAT

✗ COLLECTION

✓ DELIVERY

Check out our Fair Deal on Delivery Promise

Sturmer Holzstar

TF 170 E Spindle Moulder 4-Speed 1500W 230v Package

ref: 5901917

Spindle Moulder Package Deal

Package Includes:

Sturmer Holzstar TF 170 E Spindle Moulder 4-Speed 1500W 230v
Charnwood CB9830 Cutterblock with Straight Knives & 6 Profiles
Charnwood W030SD Sanding Drum Kit with 3 Sizes of Drum
Charnwood W522: Universal Wheel Base
CMT Aluminium Cutter Head with Limiters

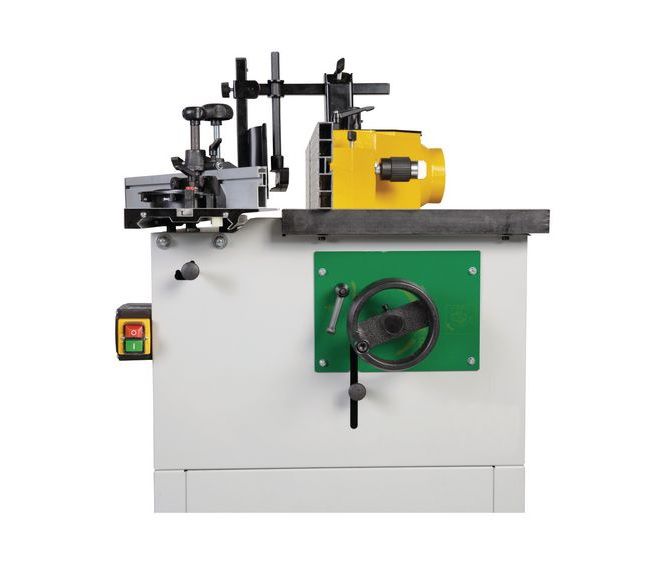

Sturmer Holzstar - TF 170 E Spindle Moulder

Key Features

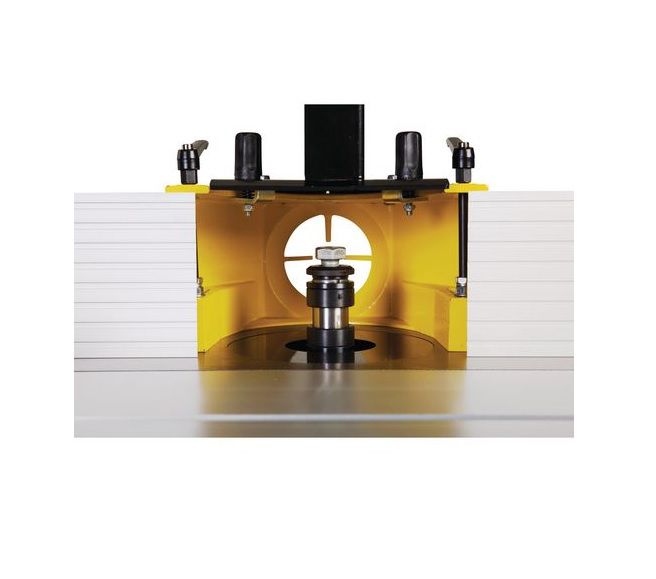

TF 170 E 4 Speed spindle moulder (1400-9000 rpm) + alu sliding table beam w mitre att + cast iron table + Shaw type safety guard + 1500W motor 230v

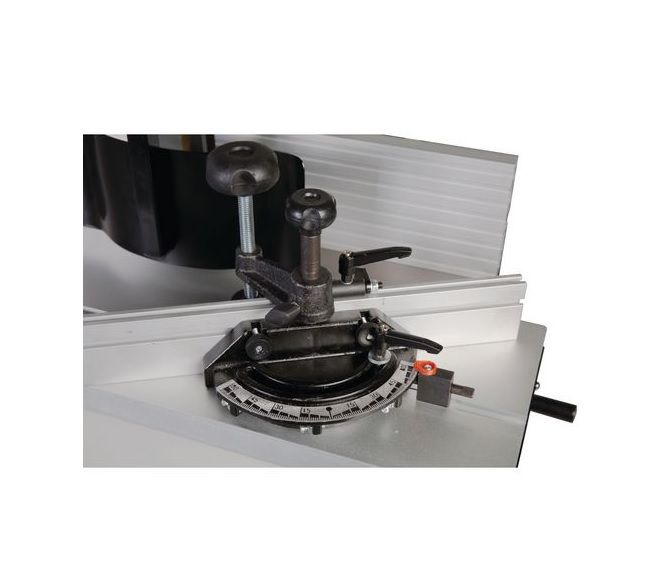

Smooth-action sliding carriage for precise workpiece guidance
Milling stop with finely adjustable aluminium stops
Quick and easy change of the speed by means of splined belts
Large work surface with torsion-free cast-iron table
Milling unit made of grey cast iron
Downholder for precise workpiece guidance

Technical details

Dimensions and weights

Max. length: 1000 mm
Max. width/depth: 950 mm
Max. height: 1170 mm
Length approx.: 1000 mm
Width/depth approx.: 900 mm
Height approx.: 1140 mm
Weight approx.: 96 kg

Electrical Data

Drive motor output: 1,1 kW
Absorbed power drive motor: 1,5 kW
Total rated value: 1,5 kVA
Mains frequency: 50 Hz

Milling cutter diameter max.

Max. tool diamter: 160 mm

Milling spindle

Stroke: 105 mm
Max. protrusion over the table: 105 mm
Speed(s): 1400/4000/6000/9000 min¯¹
Arbor diameter: 30 mm

Work table

Length: 600 mm
Width: 400 mm
Table height: 850 mm
Sliding carriage length: 1000 mm
Sliding carriage width: 218 mm
Sliding carriage height: 850 mm

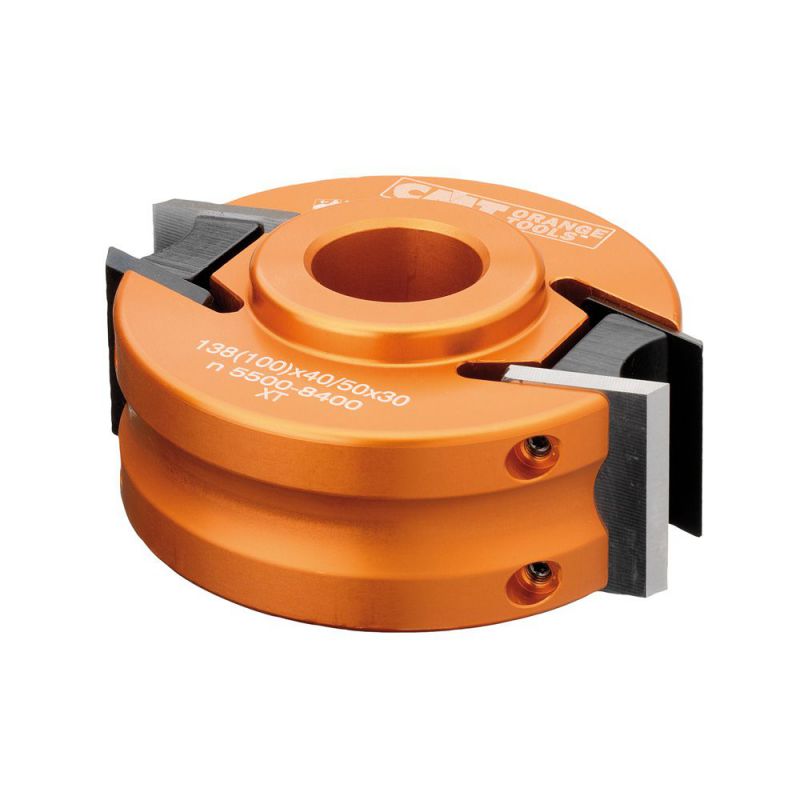

CMT Aluminium Cutter Head with Limiters 100m dia, 30mm bore

ref: 693.100.30

Key Features

CMT cutter heads guarantee perfect executions of all your projects.
DESIGNED TO COMPLY WITH THE EUROPEAN NORMATIVE EN 847-1.
Supplied in a solid plastic box to contain up to 12 couples of knives
Tool for manual feed
Two cutting edges
Anti-kickback

Suitable for use with

All types of moulder and spindle moulder machines.

Technical details

Made from aluminium. Cutter head with limiters, highly resistant to tensile and yield stress.
Pair of universal straight knives and limiters included.
Tools for manual feed (MAN).
Pins for the automatic positioning of the knives.
Possibility to use knives with a height of 40mm (1-37/64") or 50mm (1-31/32") (order no. 690) and limiters (order no. 691).

Specification

Aluminium body
(D) Diameter: 100mm
(I) Cutting length: 40 - 50mm
(B) Bore: 30mm
RPM: 5500 - 8400
(Z) Number of cutting edges: 2

Cutter Head Safety Sheet

Cutter Head Usage Guide

Charnwood Spindle Moulder - Cutterblock Set - CB9830

Key Features

Spindle Moulder cutterblock with limiters. This steel block is compatible with all 40mm Euro pattern cutters. The set includes straight knives plus 6 popular profiles and is supplied in a foam lined aluminium storage case.
Cutters for spindle moulders tend to be known by numbers rather than descriptions. The profiled cutters included in this set are numbers 001, 002, 003, 004, 005 & 006

Specification

Diameter: 98mm
Height: 40mm
Bore: 30mm
Maximum speed: 8,000rpm
Pin Diameter: 6mm
Pin Centres: 24mm
Weight: 3kg
Rating: Trade

The cutters used in this block are compatible with those from Trend, Freud & CMT.

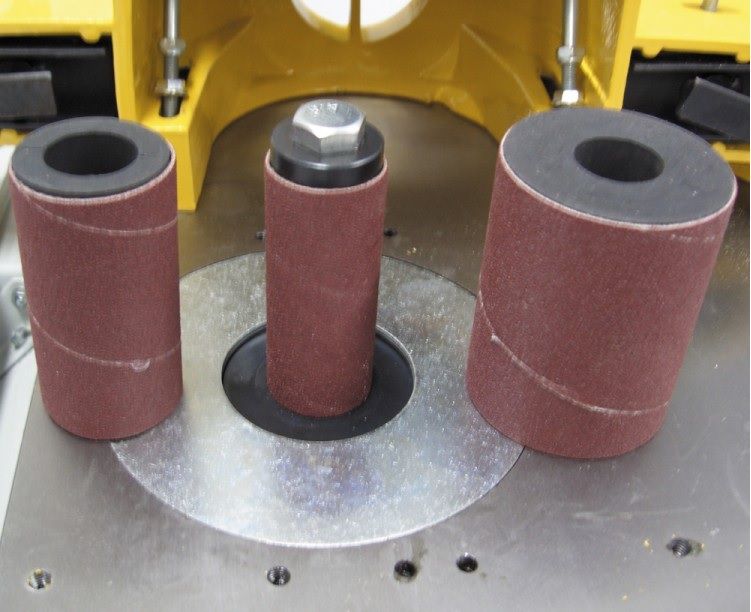

Charnwood Spindle Moulder Sanding Drum Kit - (Ref: W030D)

Key Features

Set of 3 rubber sanding drums.
Each drum is 100mm (4") in height, the outisde diameters are 40mm, 52mm, & 78mm.
This is suitable for a 30mm diamter shaft.
Supplied with one 80 grit sleeve for each size.
Please note these can only be used with the Charnwood W030 and W040 spindle moulders, 4 speed versions, running at the lowest speed 1400rpm.
May be compatible with other spindle moulders, providing a low enough speed can be set.

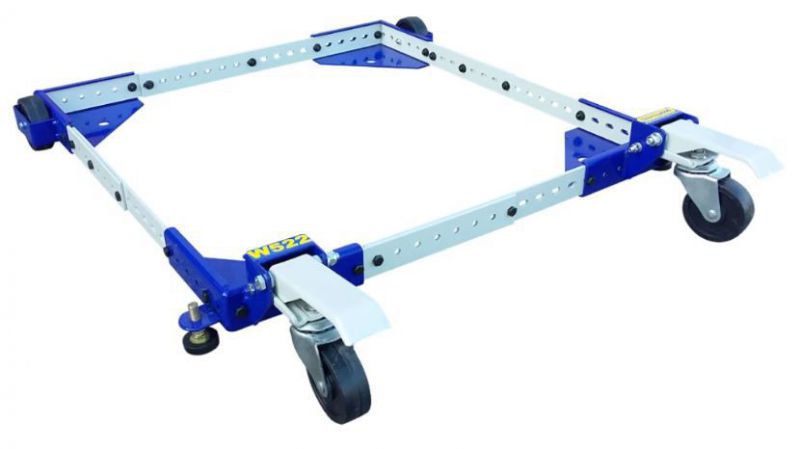

Charnwood W522 - Universal Wheel Base

Strengths and benefits

Constantly having to push one machine to the back of the workshop to make space to bring another one forward ?
Convert your machines into portable units by adding this highly adaptable wheel base. There are two fixed wheels and two steering wheels allowing excellent manoeuvring across a relatively flat floor surface. Step on the two foot plates to lower the wheels for moving the machine, then raise the two foot plates to lower the base back onto the adjustable rubber feet.
The base can be assembled either as a square shape or a rectangle shape to suit the footprint of the machine being mounted.
It can be used with a huge variety of machines including Planer Thicknessers, Table Saws, Bandsaws, Spindle Moulders and Lathes.

Specification

Minimum square size 340mm x 340mm
Maximum square size 930mm x 930mm
Maximum rectangle size 520mm x 1340mm
Maximum weight load 295kg
Rating Light trade
Warranty 1 Year

Charnwood W522 Owners Manual
