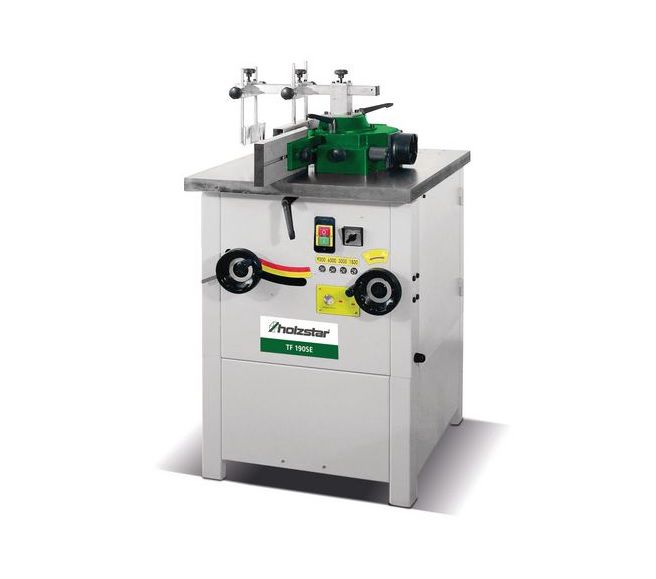

Sturmer Holzstar TF 190 SE Spindle Moulder 4-Speed 2800W 230v

X
Product Code: STU/5901931
Brand: Stuermer
Available to Order Please Call
01726 828 388
£2,399.99 Inc. VAT
£1,999.99 Exc. VAT
Check out our Fair Deal on Delivery Promise
Stuermer

Sturmer Holzstar

TF 190 SE Spindle Moulder 4-Speed 2800W 230v

ref: 5901931



Key Features

  • TF 190 SE 4 Speed tilting spindle moulder (+5 -30dg) + LED displays + select switch for L of R spindle rotation + triple pressure roller safety device + 2800W motor 230v 16 Amp
  • Milling stop with finely adjustable aluminum stops
  • Quick and easy changing of the speed using multi-V-belts
  • Display of the speed setting by LED lights
  • Large work surface due to the solid and torsion-free gray cast iron table
  • Large milling unit made of gray cast iron, swiveling from +5 to -30°
  • Selector switch for clockwise/counterclockwise rotation of the milling spindle
  • Hold-down device for precise workpiece guidance



Technical details

Dimensions and weights

  • Length approx.: 750 mm
  • Width/depth approx.: 660 mm
  • Height approx.: 1200 mm
  • Weight approx.: 174 kg

Electrical Data

  • Drive motor output: 2,2 kW
  • Absorbed power drive motor: 2,8 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Extraction port

  • Extraction port diameter: 100 mm

Milling cutter diameter max.

  • Max. tool diamter lowerable: 200 mm

Milling spindle

  • Angle: -5 to +30 °
  • Usable length: 100 mm
  • Stroke: 100 mm
  • Max. protrusion over the table: 100 mm
  • Speed(s): 1800/3000/6000/9000 min¯¹
  • Speed regulation: Strap
  • Speed display: LED on the machine front
  • Arbor diameter: 30 mm

Work table

  • Length: 710 mm
  • Width: 640 mm
  • Table height: 900 mm
  • Sliding carriage length: 1200 mm
  • Sliding carriage width: 700 mm
  • Sliding carriage height; 500 mm
  • VPE: 1
