Sturmer Holzstar TKS 254 PRO Table Saw with Sliding Carriage 254mm 2100W 230v
Product Code: STU/5902027
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£1,679.99 Inc. VAT
£1,399.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Holzstar

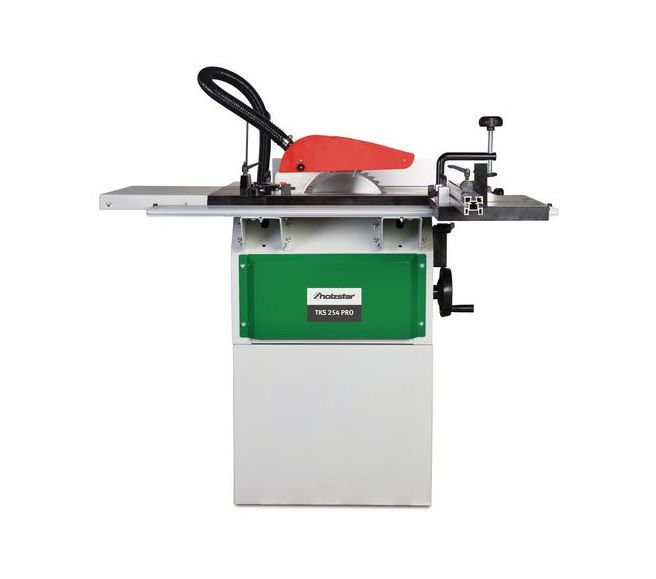

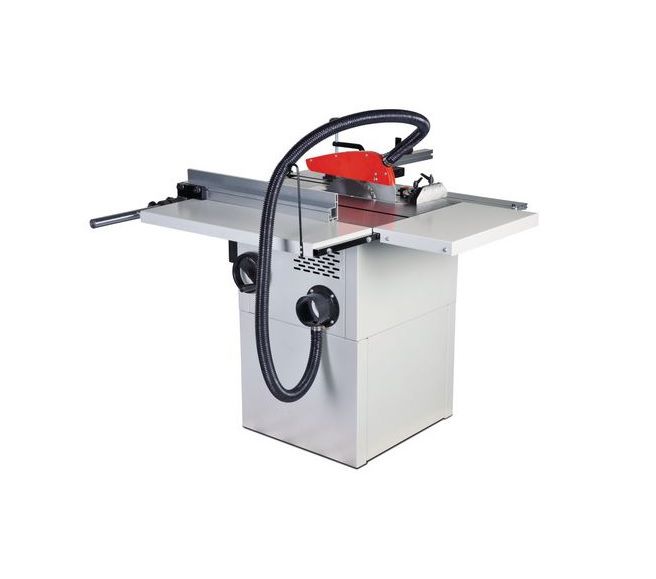

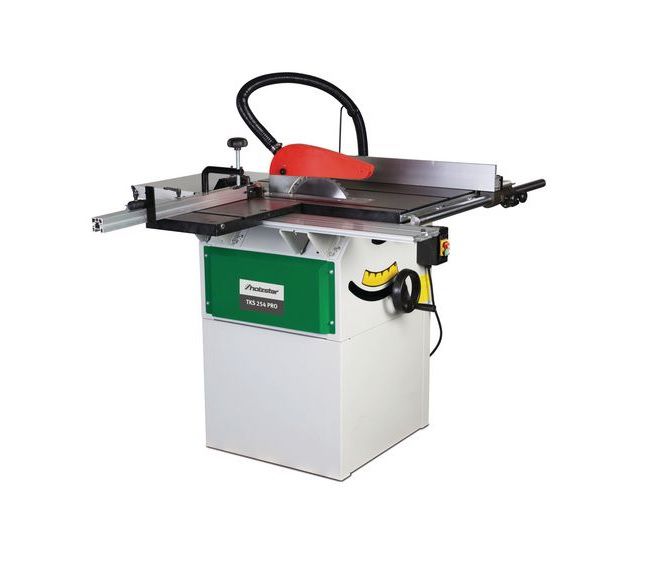

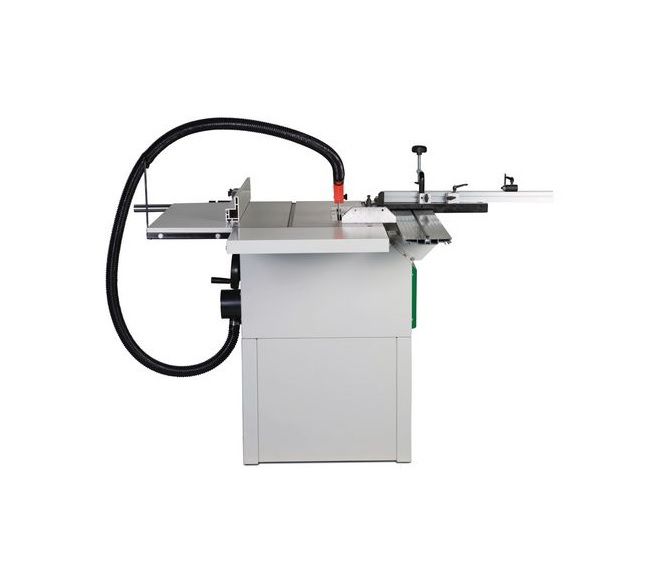

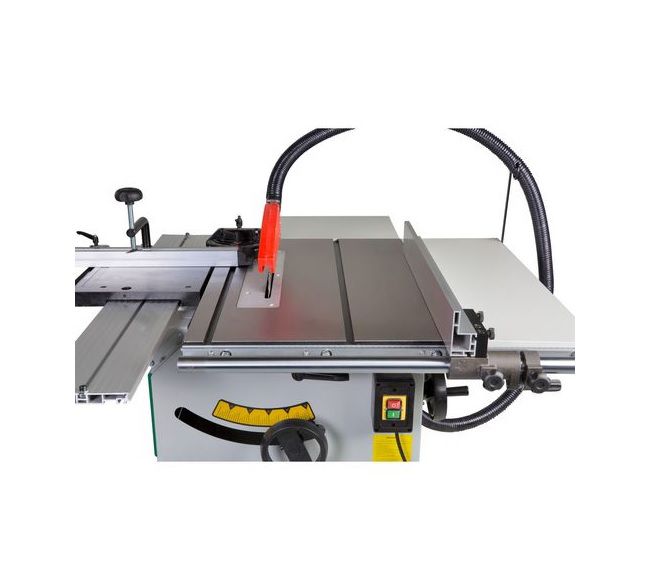

TKS 254 PRO Table Saw with Sliding Carriage 254mm 2100W 230v
ref: 5902027
Key Features
- TKS 254 PRO 254mm Dia sawbench package + 80mm max depth of cut + sliding table carriage + table width & length extentions + mitre att + 2.1 kW motor 230v
- Large dimensioned cast iron table

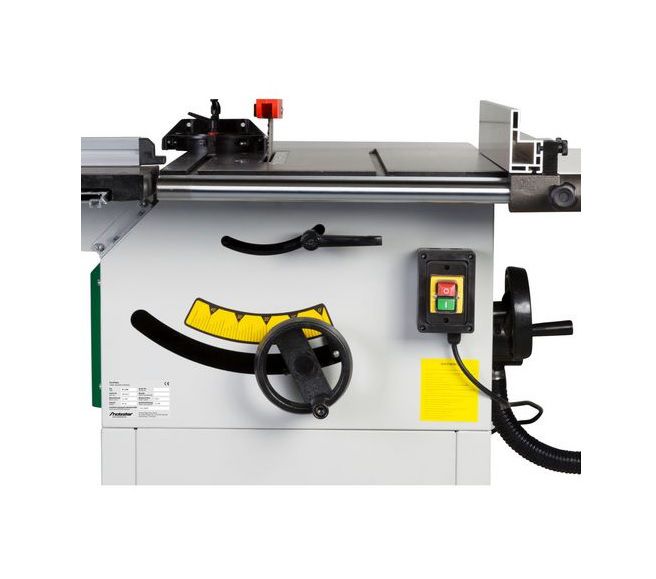

- Saw blade tilt from 0° to 45°, precise, accurate to the degree and conveniently adjustable via handwheel and scale
- Large central suction connection Ø 100 mm
- The saw blade height adjustment is also carried out via a hand wheel from the operator's front panel
- The stable suspension of the saw unit at the front and rear enables precise cuts to be made
- Equipped with powerful motor and thermal overload protection
- Incl. saw blade protection hood with integrated suction connection
- With standard table extension
Items included
- Substructure
- Sliding table
- Table extension
- Rip fence
- Saw blade 254 x 30 x 3.0 mm Z40
- Saw blade guard with suction hose

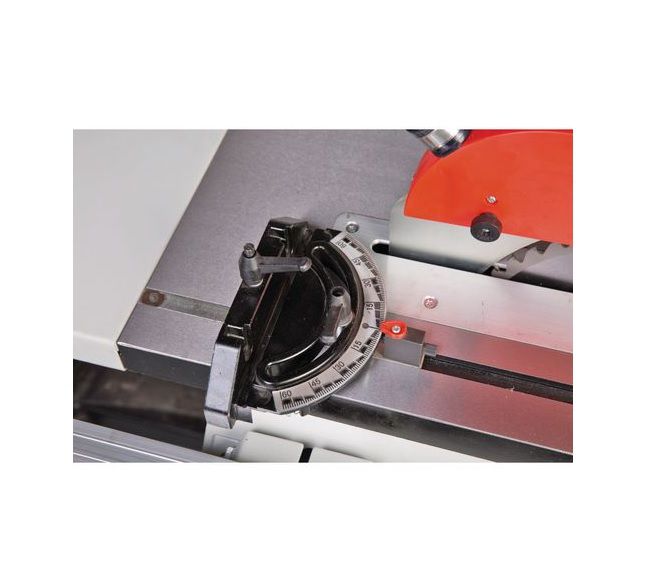

- Angle stop
Technical details
Circular saw unit
- Max. cutting width with rip fence: 610 mm
- Max. cross cut width left from saw blade: 550 mm
- Saw blade angle: 90 – -45 °
- Max. cutting height 90°: 80 mm
- Max. cutting height -45°: 54 mm
- (Main) saw blade diameter: 254 mm
- (Main) saw blade speed: 4000 min¯¹
Dimensions and weights
- Length approx.: 1430 mm
- Width/depth approx.: 1000 mm
- Height approx.: 1030 mm
- Weight approx.: 131 kg
Electrical Data
- Drive motor output: 1,5 kW
- Absorbed power drive motor: 2.1 kW
- Total output: 2.1 kW
- Total rated value: 9.3 A
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter bottom: 100 mm
- Saw blade protection extraction port diameter: 30 mm
Noise emission
- Sound pressure level: 84.2 dB(A)
Sliding carriage and table
- Sliding carriage length: 400 mm
- Sliding carriage width: 250 mm
- Table length: 720 mm
- Table width: 480 mm
- Work height: 835 mm
- VPE: 1
