Sturmer Holzstar TKS 316 E Table Saw 315mm 2200W 230v
Product Code: STU/5902316
Brand: Stuermer
Low Stock - Please Call For Availability
£515.99 Inc. VAT
£429.99 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Sturmer Holzstar

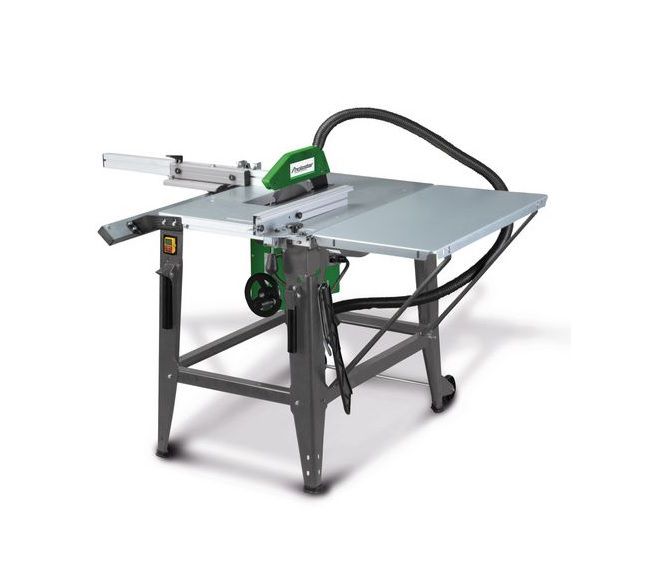

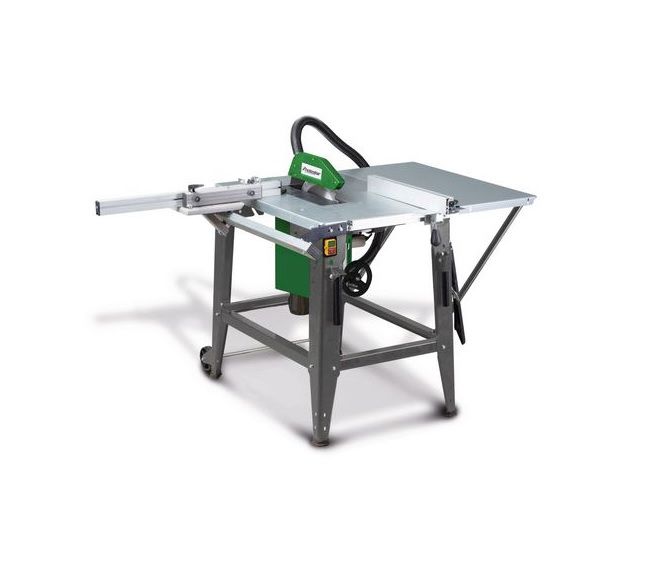

TKS 316 E Table Saw 315mm 2200W 230v
ref: 5902316
Key Features
- TKS 316 E 315mm Dia tilt arbor sawbench package + 83mm max depth of cut + sliding table carriage + table width extension + 2200W motor 230v
- Mobile DIY machine for trimming boards, for cutting cuts, bevel and angle cuts
- Inclination of the saw blade from 0 to 45°, adjustable without tools

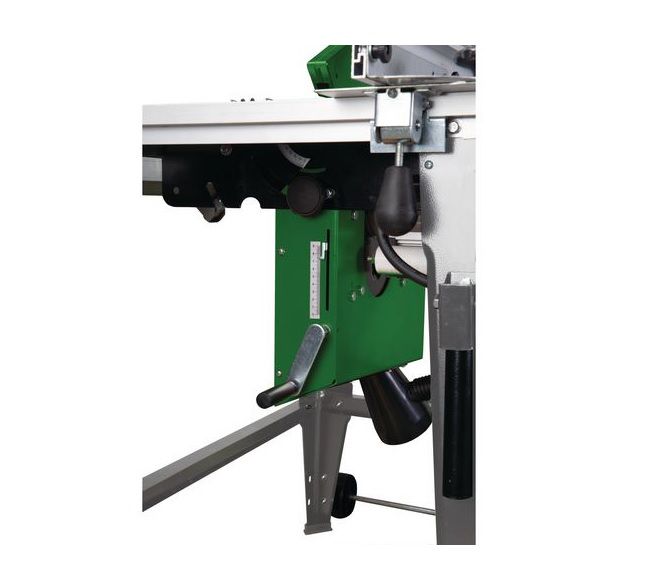

- Height adjustment of the saw blade via hand crank and scale

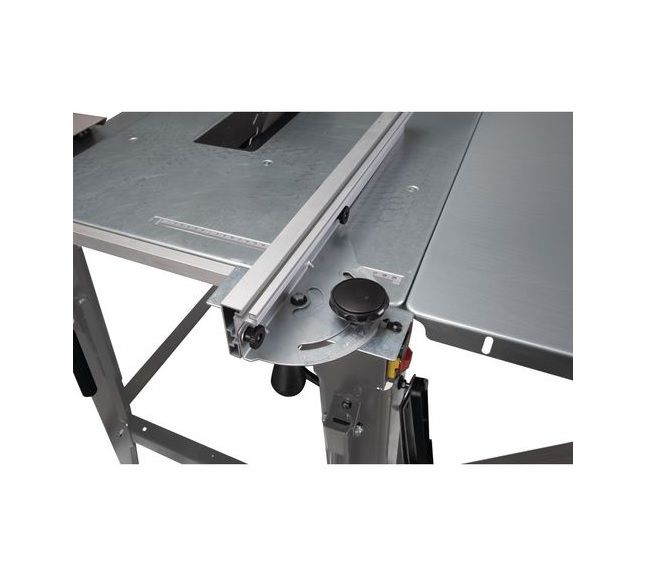

- Large aluminum rip fence with eccentric quick release, can be used as a miter fence as well
- Large, galvanized steel machine table

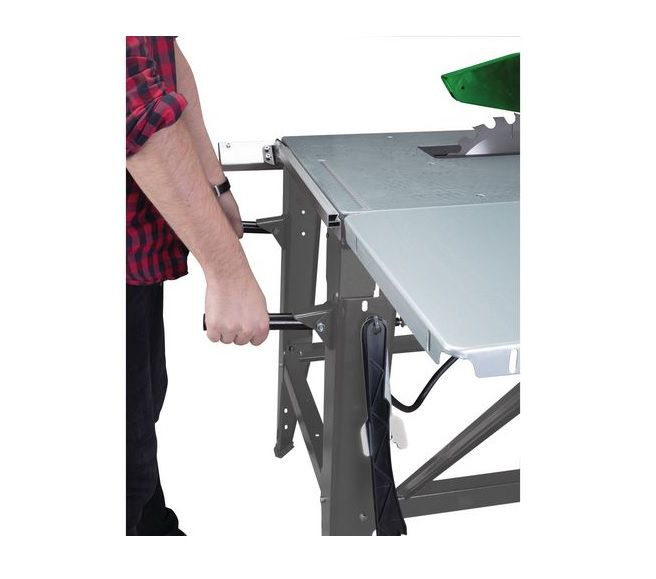

- Easy to move thanks to integrated chassis with two wheels and foldable transport handles
- Delivered unmounted
Items included
- Chassis

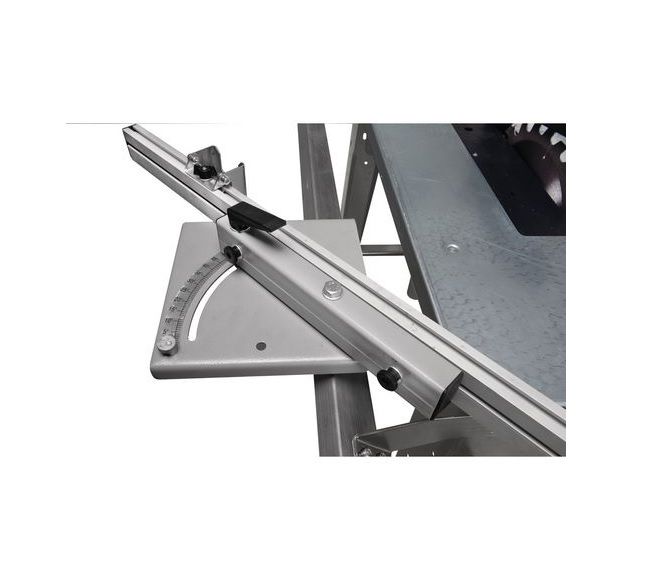

- Sliding table with miter gauge
- Table extension
- Combined parallel and miter fence
- Carbide Blade Ø 315 x 3,6 x Ø 30 mm Z24
- Saw blade guard with suction hose
- Push stick
Technical details
Circular saw unit
- Max. cutting width with rip fence: 290 mm
- Saw blade angle: 90 – 45 °
- Max. cutting height 90°: 83 mm
- Max. cutting height 45°: 60 mm
- (Main) saw blade diameter: 315 mm
- (Main) saw blade speed: 2800 min¯¹
Dimensions and weights
- Length approx.: 1600 mm
- Width/depth approx.: 600 mm
- Height approx.: 1050 mm
- Weight approx.: 53 kg
Electrical Data
- Absorbed power drive motor: 2,2 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter bottom: 100 mm
- Saw blade protection extraction port diameter: 35 mm
Sliding carriage and table
- Table length: 800 mm
- Table width: 550 mm
- Work height: 850 mm
- VPE: 1
