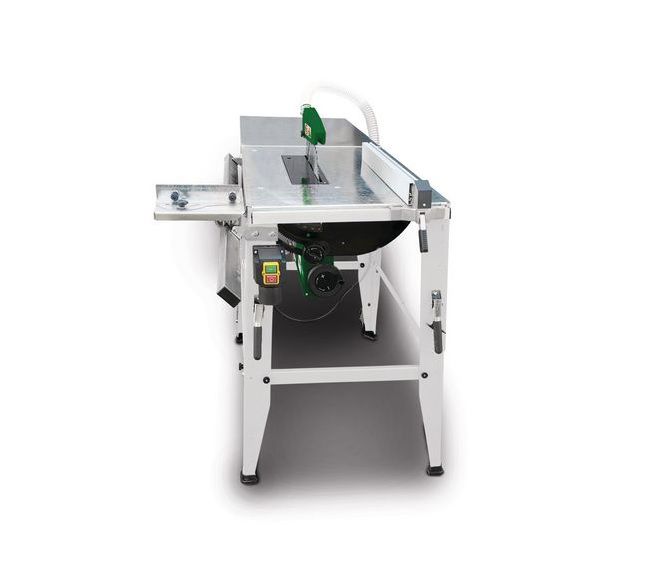

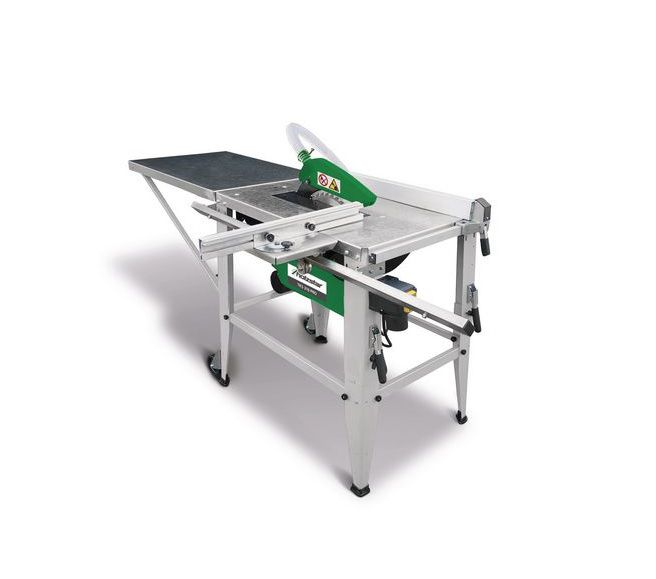

Sturmer Holzstar TKS 316 PRO Collapsible Table Saw 315mm 2800W 230v

X
Product Code: STU/5902321
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£779.99 Inc. VAT
£649.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Check out our Fair Deal on Delivery Promise
Stuermer

Sturmer Holzstar

TKS 316 PRO Collapsible Table Saw 315mm 2800W 230v

ref: 5902321



Key Features

  • TKS 316 PRO 315mm Dia tilt arbor sawbench package + 90mm max depth of cut + dual side or table length extension + sliding table carriage + collapsible legs for easy transport + 2800W motor 230v 16 Amp
  • Large machine table made of galvanized steel

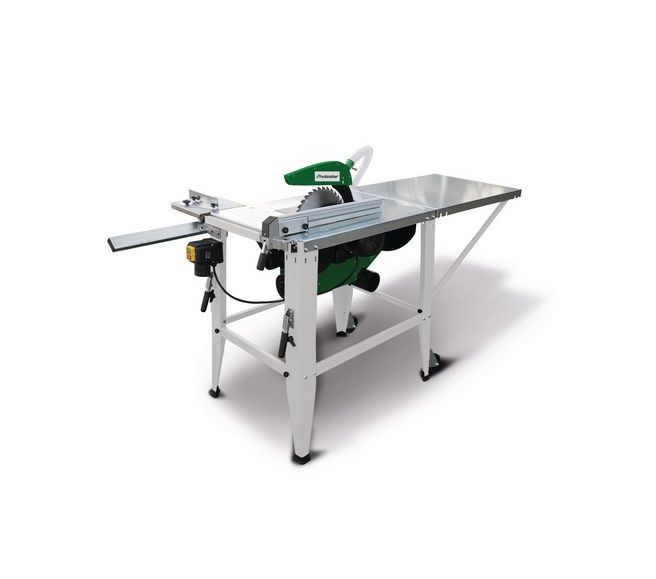

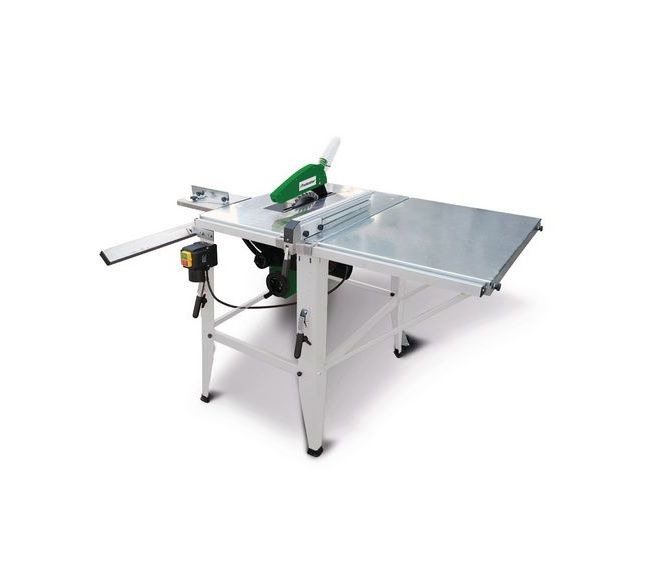

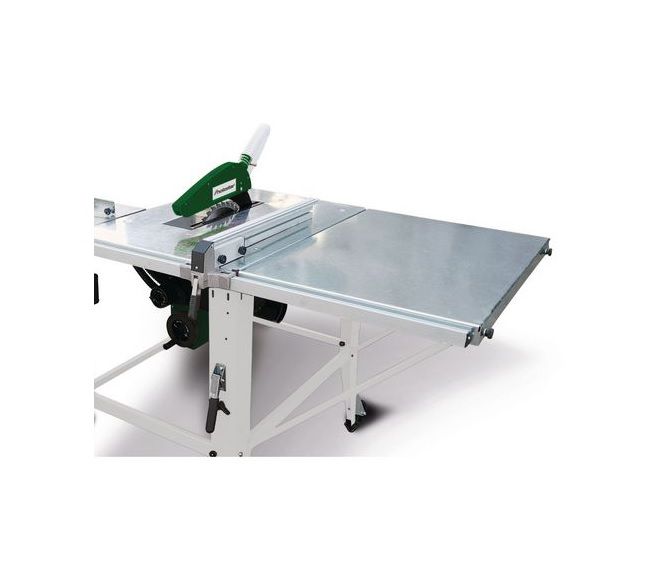

  • Standard table extension can also be mounted as table widening right

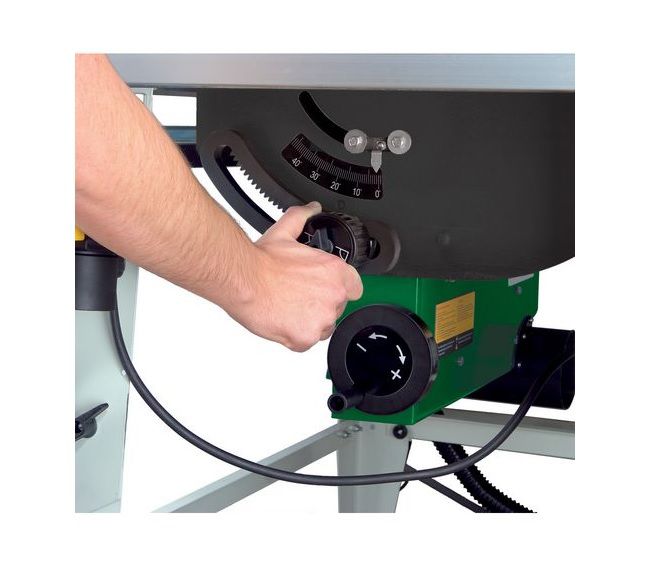

  • Precise sawmill swing over hand wheel with scale
  • Saw blade height adjustable via easy-to-reach hand wheel
  • Precise cuts due to stable, double suspension of the sawing unit

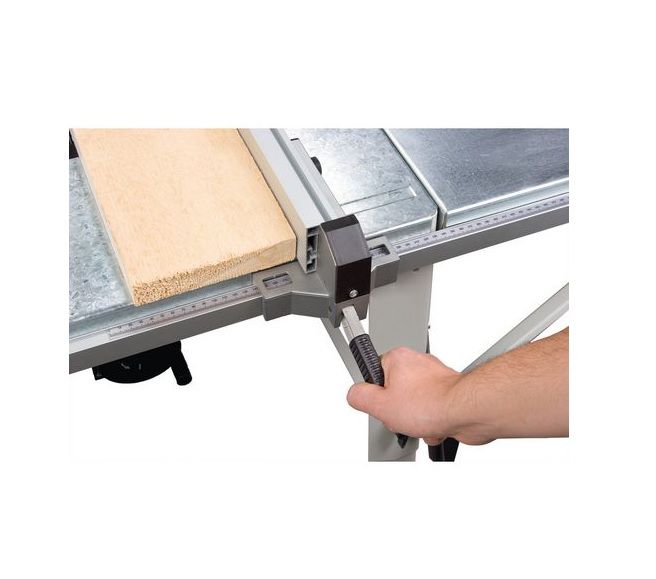

  • Rip fence allows the lining of boards, thicknaces, fiber and angle cuts
  • Easily drivable through integrated landing gear and foldable transport handles

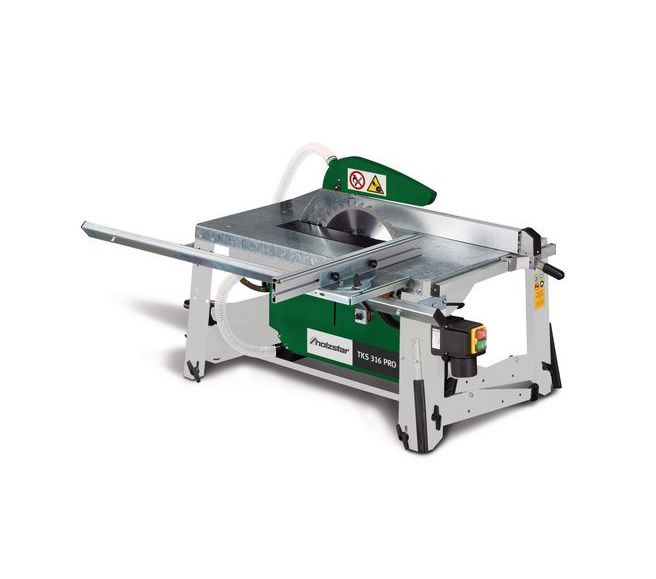

  • For easy transport or space-saving storage table feet can be folded easily



Items included

  • Chassis
  • Sliding sleighs
  • Table extension tat, 800 x 550 mm
  • Rip fence
  • HM saw blade 315 mm/36 Z
  • Saw blade cover with suction hose

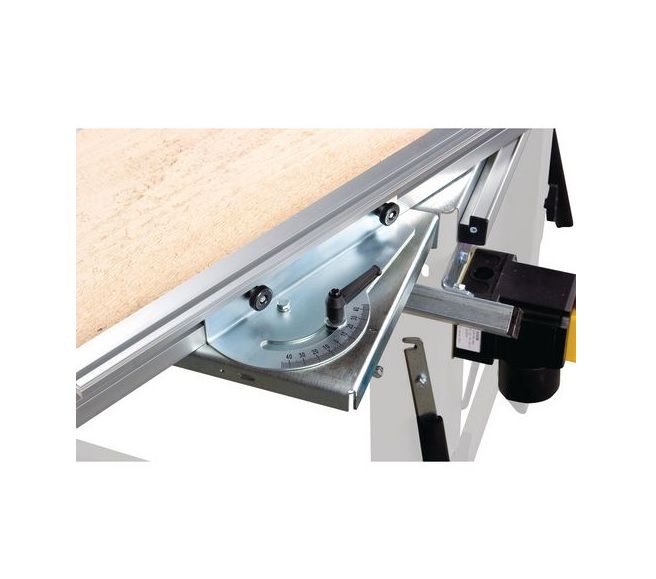

  • Miter fence without aluminium profile



Technical details

Circular saw unit

  • Max. cutting width with rip fence: 200 mm
  • Max. cross cut width left from saw blade: 245 mm
  • Saw blade angle: 90 – 45 °
  • Max. cutting height 90°: 90 mm
  • Max. cutting height 45°: 50
  • Max. cutting height -45°: 50 mm
  • (Main) saw blade diameter: 315 mm
  • (Main) saw blade speed: 2800 min¯¹

Dimensions and weights

  • Length approx.: 1350 mm
  • Width/depth approx.: 1250 mm
  • Height approx.: 1000 mm
  • Weight approx.: 60 kg

Electrical Data

  • Absorbed power drive motor: 2,2 kW
  • Total rated value: 10.3 A
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Extraction port

  • Extraction port diameter bottom: 100 mm
  • Saw blade protection extraction port diameter: 30 mm

Sliding carriage and table

  • Table length: 800 mm
  • Table width: 550 mm
  • Work height: 850 mm
  • VPE: 1
