Sturmer Holzstar ZAA 1353 Cyclone Dust Extractor 2200W 415v
Product Code: STU/5924135
Brand: Stuermer
Stock Expected
Delivery typically within 2-3 weeks
£1,559.99 Inc. VAT
£1,299.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Holzstar

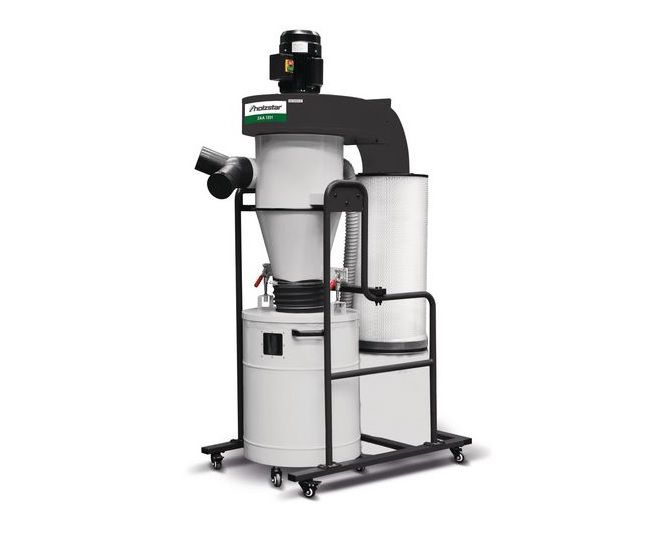

ZAA 1353 Cyclone Dust Extractor 2200W 415v
ref: 5924135
Key Features
- ZAA 1353 Clean exhaust cyclone extractor + fine dust filter system + rotary crank handle for manual filter cleaning + 2200W motor 415v
- Effective cyclone technology with 2-stage filtration
- Separation of larger impurities in the waste container and fine dust in the cartridge filter
- Sight glass for checking the fill level in the container
- Manual filter cleaning via rotary crank for consistently high extraction performance
- Flexible maneuvering thanks to swivel castors on the extraction unit and filling container
- Easy emptying of the mobile filling container thanks to quick-release fastener
- Includes: filter cartridge, flex hose
Technical details
Dimensions and weights
- Chip collection volume: 118 l
- Extraction duct inlet outside nominal width: 1 x 150, 2 x 100 mm
- Length approx.: 1145 mm
- Width/depth approx.: 654 mm
- Height approx.: 1830 mm
- Weight approx.: 82 kg
Electrical Data
- Motor input: 2,2 kW
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Filter
- Filter surface area: 3.5 m²
Noise emission
- Max. sound pressure level: 80 dB(A)
Volume flow
- Rated volume flow: 1325 m³/h
- VPE: 1
