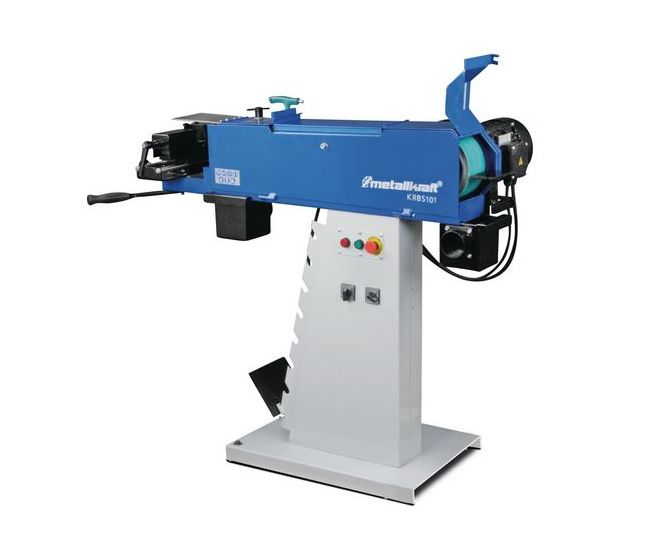

Sturmer Metallkraft KRBS 101 Combi Grinding and Polishing Belt Sander 2.5/3.3kW 230v

X
Product Code: STU/3921001
Brand: Stuermer
Available to Order Please Call
01726 828 388
£2,039.99 Inc. VAT
£1,699.99 Exc. VAT
Stuermer

Sturmer Metallkraft

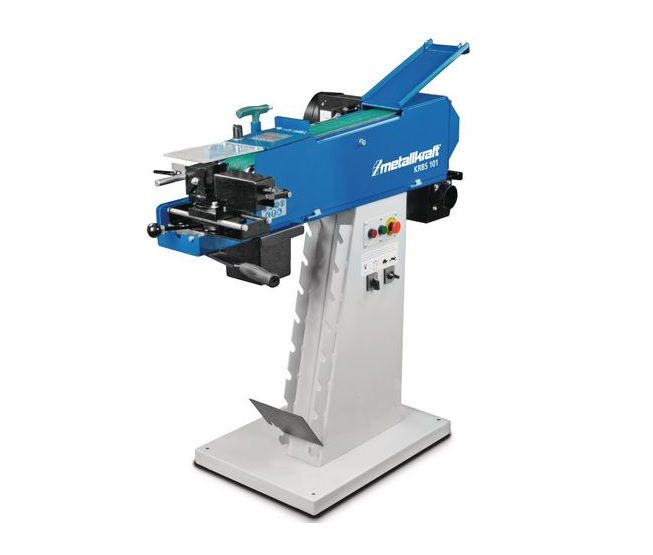

KRBS 101 Combi Grinding and Polishing Belt Sander 2.5/3.3kW 230v

ref: 3921001



Key Features

  • KRBS 101 Multi-App grinding & polishing machine + clamping for square & round tubes & flat steel + multiple adjustable grinding angles + 2 speeds ideal for stainless steel / alu & steel + 2500/3300W motor 415v
  • For deburring with practical workpiece support and chip collecting container
  • Convenient operation thanks to easily adjustable clamping device

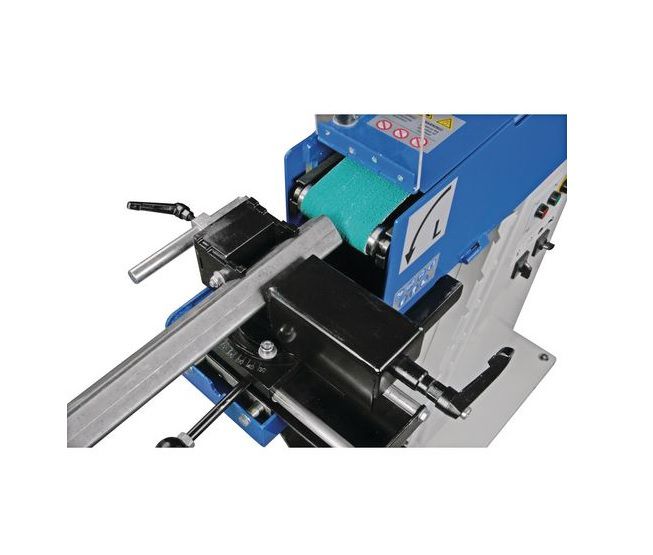

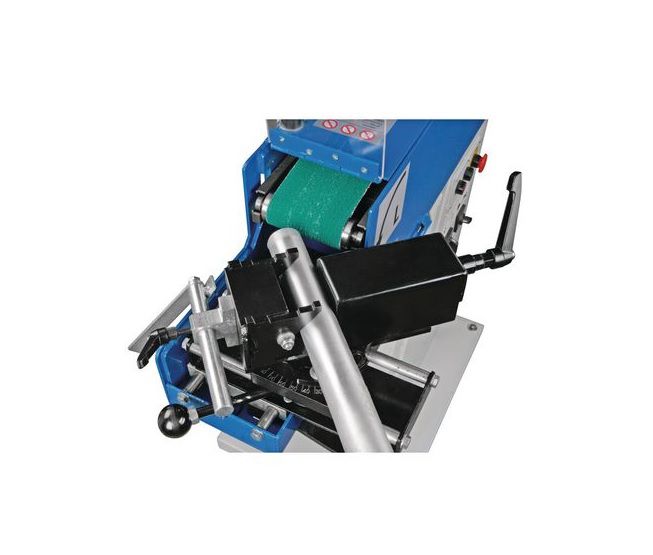

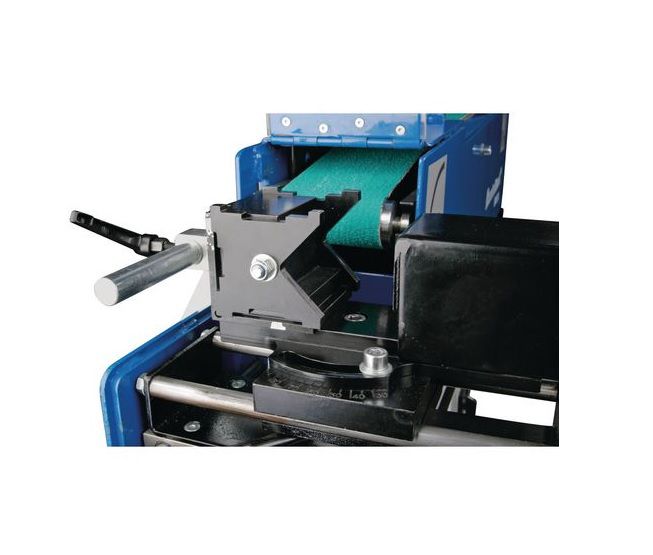

  • The rotating clamping jaws of the clamping device enable secure clamping of square tubes, round tubes and flat steel

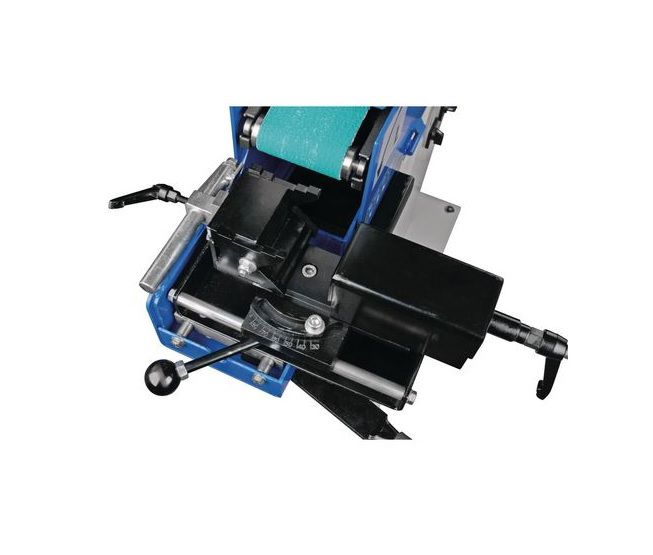

  • Adjustable grinding angles of 30 - 90 ° and 0 ° - 60 °

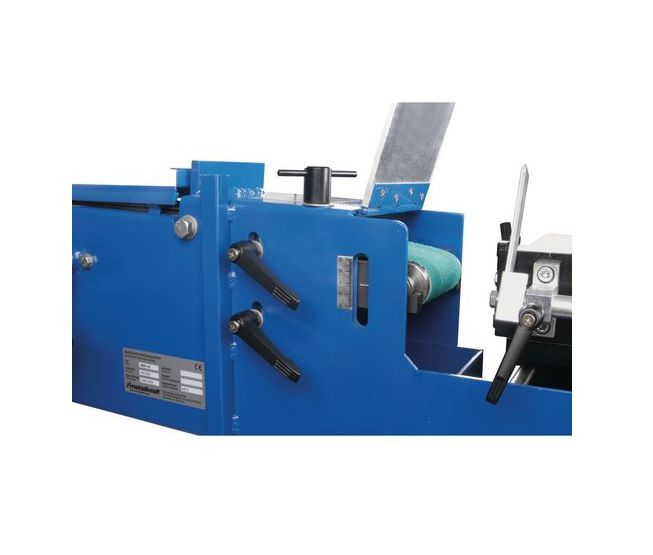

  • Thanks to the optimized quick-change holder, the tensioner can be changed easily and quickly without tools
  • Particularly durable due to larger and improved roller bearings
  • Practical grinding wheel holders integrated in the base
  • Extensive range of grinding wheels for different pipe diameters available as accessories
  • Fast change between pipe grinding and belt grinding possible
  • Powerful engine
  • Almost all settings can be carried out without tools (operating tool included)

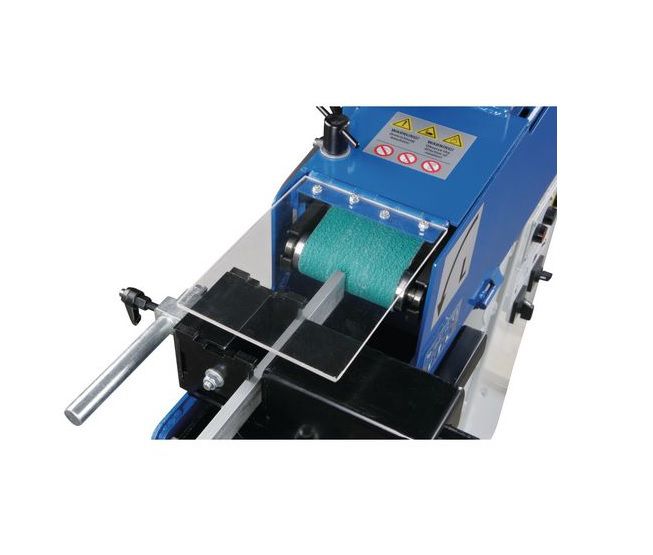

  • Large, hinged protective glass with optimum field of vision
  • Optimal adaptation to the respective material due to 2 belt speeds (15 m / s ideal for stainless steel and aluminum, 30 m / s perfect for steel)

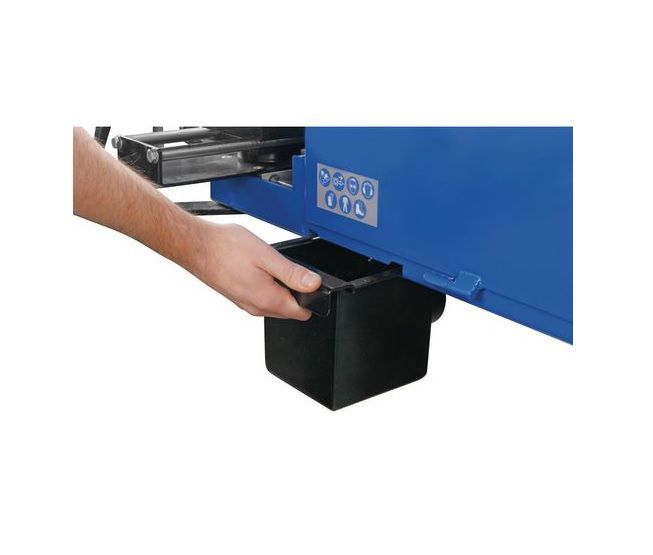

  • With two easily removable chip collecting containers
  • Extraction nozzle (Ø 70 mm) for extraction systems available



Items included

  • 1 x standard sanding belt grain K 40 for stainless steel & grey cast iron sanding
  • 2 x chip collecting tanks
  • 1 x wrench
  • 1 x sanding roller 42 mm



Technical details

Dimensions and weights

  • Length approx.: 1250 mm
  • Width/depth approx.: 750 mm
  • Height approx.: 1140 mm
  • Weight approx.: 159 kg

Electrical Data

  • Drive motor output: 2.5 / 3.3 kW
  • Motor speed(s): 1400 / 2800 min¯¹
  • Supply voltage: 400 V
  • Mains frequency: 50 Hz

Extraction

  • Extraction duct nominal width outside: 2 x 74 mm
  • Extraction duct nominal width inside: 2 x 70 mm

Sanding machine

  • Sanding belt length: 2000 mm
  • Sanding belt width: 100 mm
  • Circumferential belt speed(s): 15/30 m/s
  • Adjustable grinding angle: 30 – 90 (0 – 60) °

Workpiece

  • Min. pipe diameter: 20 mm
  • Max. pipe diameter: 78 mm
  • VPE: 1
