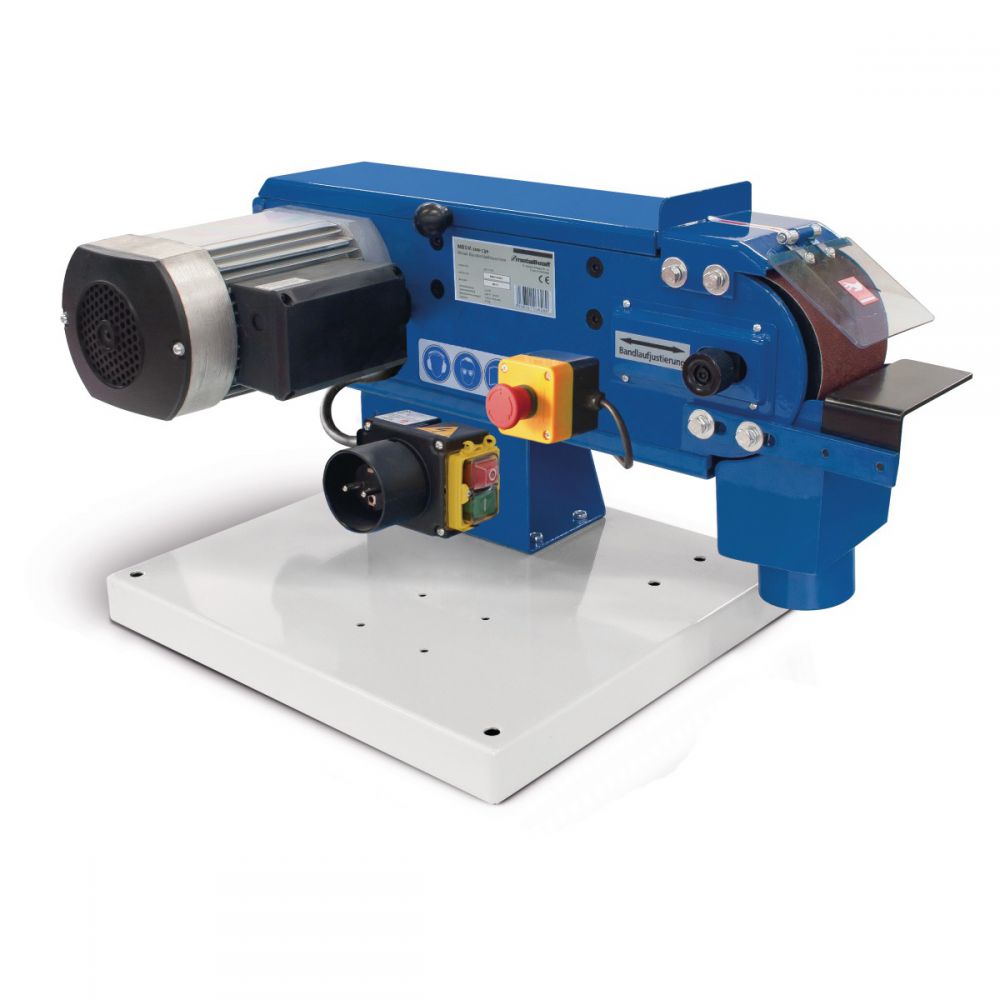

Sturmer Metallkraft MBSM 100-130 100mm Belt Linisher with Floor Stand 1500W 230v

Sturmer Metallkraft

MBSM 100-130 100mm Belt Linisher with Floor Stand 1500W 230v

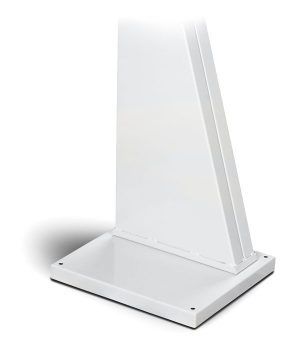

• MBSM 100-130-P1 100mm belt linisher + auto re-tensioning of belt + 3921227 floor stand inc+ 1500W motor 230v
• Powerful motors and vibration-free barrel for best grinding results
• With fold-away protective screen
• Seconds sanding belt change by quick clamping system
• Large surface grinding surface due to fold-away, upper sanding belt cover
• Can be used with and without suction
• With extraction nozzle directly on the spark box and on the rear belt reel
• Continuous face grinding surface after removal of add-on parts – allows grinding even of long workpieces
• Easy adjustment of the tape run via set screw
• Automatic re-tensioning of the sanding belt by spring-supported belt tensioning system

Dimensions and weights

• Length approx.: 690 mm
• Width/depth approx.: 390 mm
• Height approx.: 360 mm
• Weight approx.: 37 kg

Electrical Data

• Drive motor output: 1,5 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz

Extraction

• Extraction duct nominal width outside: 2 x 75 mm

Noise emission

• Emissions sound pressure level at workstation Lp (idling without extraction unit): 87 dB(A)

Sanding machine

• Max. sanding width: 100 mm
• Sanding belt length: 1220 mm
• Sanding belt width: 100 mm
• Circumferential belt speed(s): 19 m/s
• Contact wheel diameter: 130 mm
