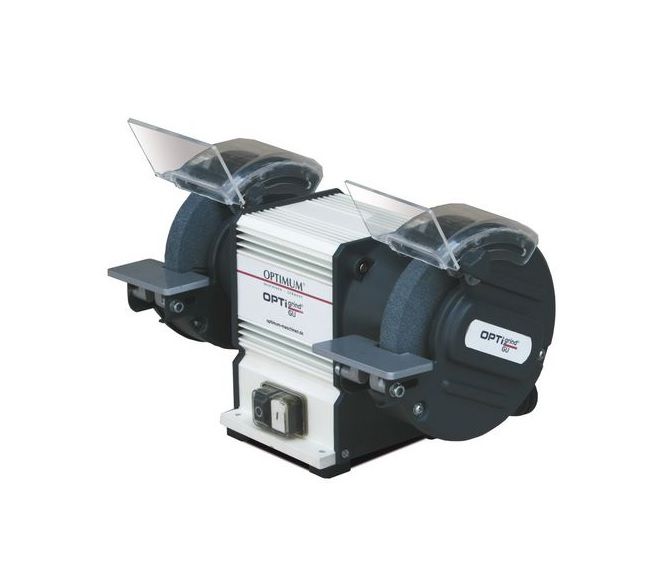

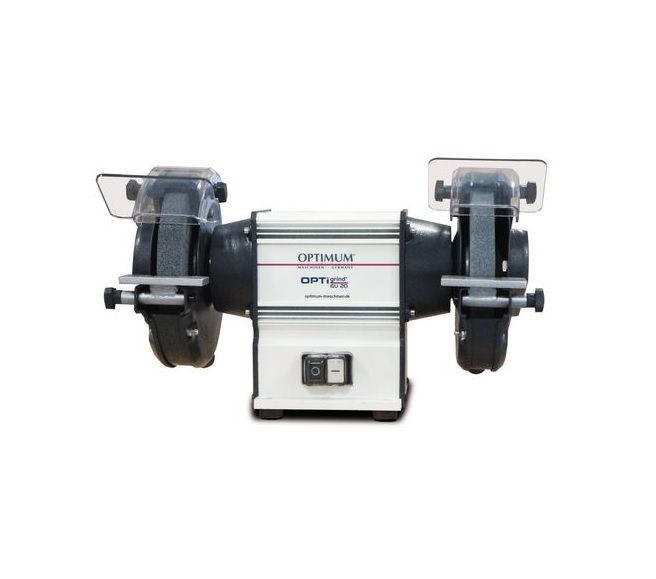

Sturmer Optimum OPTIgrind GU 18 Double Grinding Machine 175mm x 25mm 450W 230v

Sturmer Optimum

OPTIgrind GU 18 Double Grinding Machine 175mm x 25mm 450W 230v

ref: 3101510

• OPTI-grind GU 18 175x25mm dia bench grinder + extruded alu housing + coarse 36K & fine K80 grinding discs + 450W motor 230v
• Heavy, durable industrial design with maintenance-free motor
• Housing made of extruded aluminum
• Long service life and smooth running due to balanced rotor with quality ball bearings
• Spark protection on each grinding wheel reduces flying sparks
• Sight glasses made of shatterproof material
• Vibration damping rubber feet
• Coarse and fine grinding wheel (K36/K80) as standard

• Grinding wheel normal corundum coarse K36
• Grinding wheel normal corundum fine K80

Dimensions and weights

• Length approx.: 389 mm
• Width/depth approx.: 235 mm
• Height approx.: 280 mm
• Weight approx.: 14 kg

Electrical Data

• Drive motor output: 0,45 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz

Grinding wheel(s)

• External diameter: 175 mm
• Width: 25 mm
• Drill hole: 32 mm
• Speed: 2850 min¯¹
