Sturmer Optimum OPTIgrind TS 305 Metal Disc Linishing Machine 305mm 900W 230v
Product Code: STU/3310305
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£419.99 Inc. VAT
£349.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Optimum

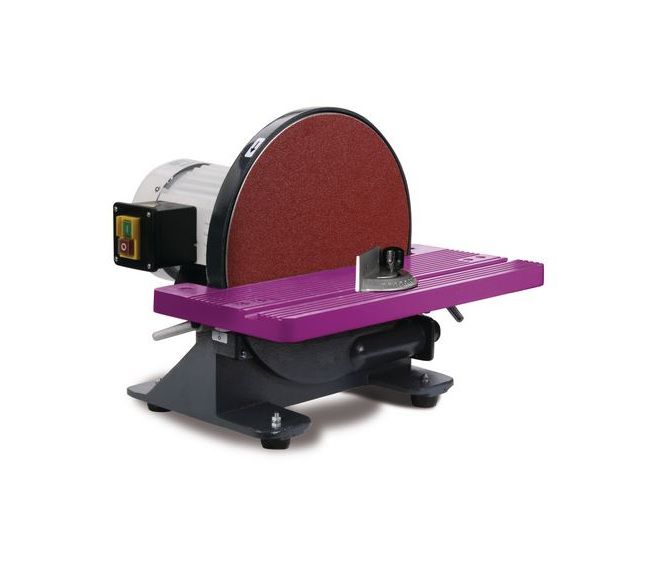

OPTIgrind TS 305 Metal Disc Linishing Machine 305mm 900W 230v
ref: 3310305
Key Features
- OPTI-grind TS305 305mm dia Metal disc linishing machine + mitre att + 900W motor 230v
- For surface treatment of metals
- Versatile application areas
- For roughing, fine and form grinding
- Machine body stable and stable
- Balanced aluminum grinding plate for smooth running
- Powerful engine
- Delivery with glued on sanding disc sanding sheet

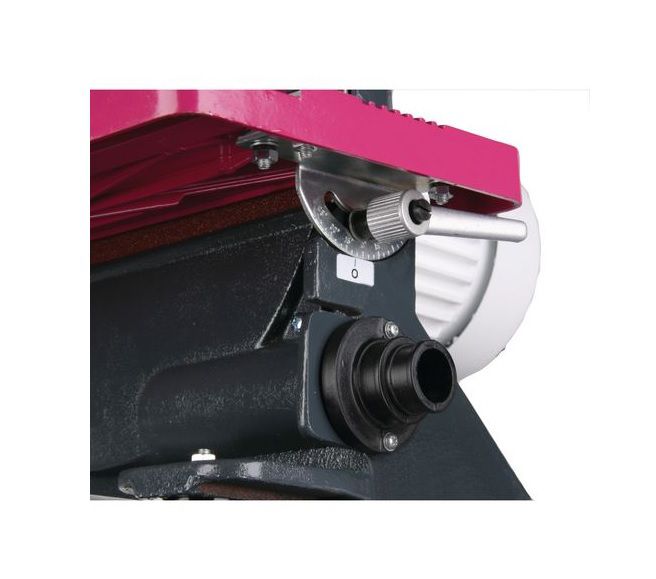

- Standard extraction nozzle with two diameters for connecting a suction device, outside diameter ± Ø 30 / Ø 38 mm

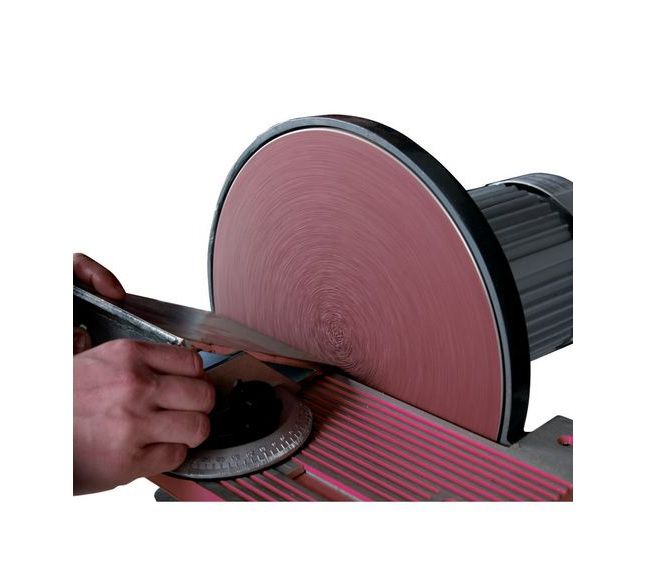

- Standard miter fence can be swiveled up to ± 60 °
- Sanding table inclinable up to ± 45 °

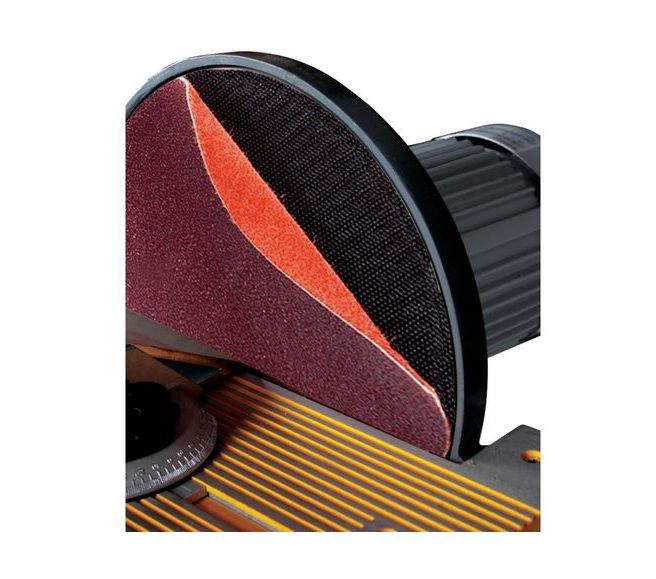

- Velcro pad for grinding wheel available in optional accessories. Grinding wheel adheres very well and can be easily replaced
Technical details
Dimensions and weights
- Length approx.: 440 mm
- Width/depth approx.: 445 mm
- Height approx.: 365 mm
- Weight approx.: 30 kg
Electrical Data
- Drive motor output: 0.9 kW
- Motor speed(s): 1420 min¯¹
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction
- Extraction duct nominal width outside: 38 mm
- Extraction duct nominal width inside: 30 mm
Grinding wheel(s)
- Speed: 1420 min¯¹
Sanding attachment
- Extraction duct nominal width: 30/38 mm
Sanding machine
- Grinding disc diameter: 305 mm
Work table
- Workpiece support width: 155 mm
- Workpiece support length: 440 mm
- Workpiece support swivel range: ± 45 °
- Angle stop adjustment range: ± 60 °
- VPE: 1
