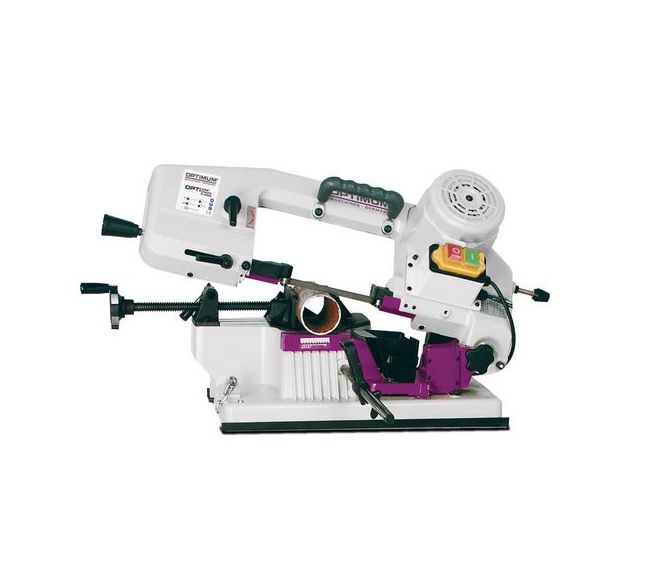

Sturmer Optimum OPTIsaw S 100G Portable Metal Cutting Bandsaw 370W 230v
Product Code: STU/3300100
Brand: Stuermer
Stock Expected
Delivery typically within 2-3 weeks
£1,031.99 Inc. VAT
£859.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Optimum
OPTIsaw S 100G Portable Metal Cutting Bandsaw 370W 230v
ref: 3300100
Key Features
- OPTI-saw S 100G Portable metal cutting bandsaw + quick action vise + vario cutting speeds 30-80 m/mi+ automatic lowering of the saw bar + fixed base att w vise + 370W motor 230v
- Quick-action vice for fast workpiece clamping
- Saw bar can be swiveled from 0 ° to 45 ° to allow angled saw cuts
- Easy to read scale for angle adjustment
- Micro switch for automatic limit switch
- Automatic lowering of the saw bar via three-stage adjustable saw bar lowering pressure
- As standard with high-quality bi-metal saw band

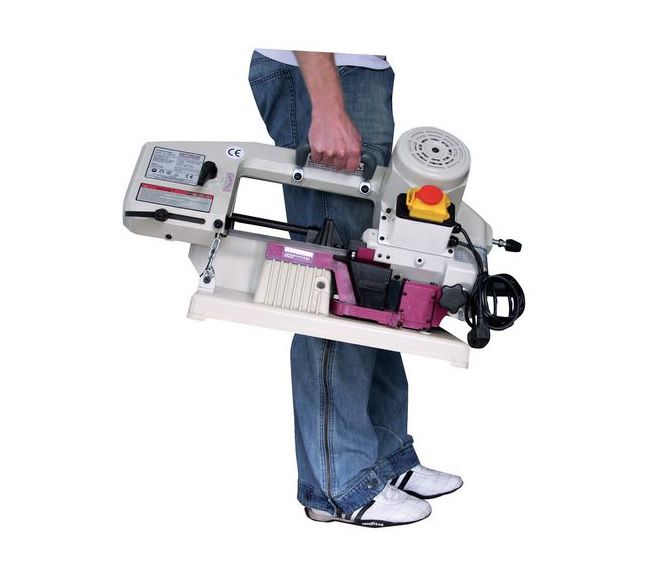

- Large, handy handle and low weight allows easy transport to the construction site
- Adjustable material stop for serial work
- Fully equipped machine; The user can work productively immediately after commissioning
- transport safety
- Includes material stop, operating tool, bi-metal blade
Technical details
Cutting ranges
- 0° round (full material): 100 mm
- 0° quadratic (full material): 100 mm
- 0° rectangle horizontal (full material): 100 x 150 mm
- +45° round (full material): 65 mm
- +45° quadratic (full material): 60 mm
- +45° rectangle horizontal (full material): 60 x 100 mm
- Explanation Cutting range: The cutting range was determined with aluminum. It can vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
Dimensions and weights
- Max. length: 950 mm
- Max. width/depth: 660 mm
- Max. height: 820 mm
- Length approx.: 850 mm
- Width/depth approx.: 300 mm
- Height approx.: 680 mm
- Weight approx.: 23 kg
Electrical Data
- Drive motor output: 0.37 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Machine data
- Saw band speed(s): 45 m/min
- Saw band length: 1470 mm
- Saw band width: 13 mm
- Saw band thickness: 0,65 mm
- Cutting angle: 0 – 45 °
- VPE: 1
