Sturmer Optimum OPTIsaw S 131GH Metal Cutting Bandsaw and Stand 1100W 230v
Product Code: STU/3300131
Brand: Stuermer
Stock Expected
Delivery typically within 2-3 weeks
£1,319.99 Inc. VAT
£1,099.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Optimum

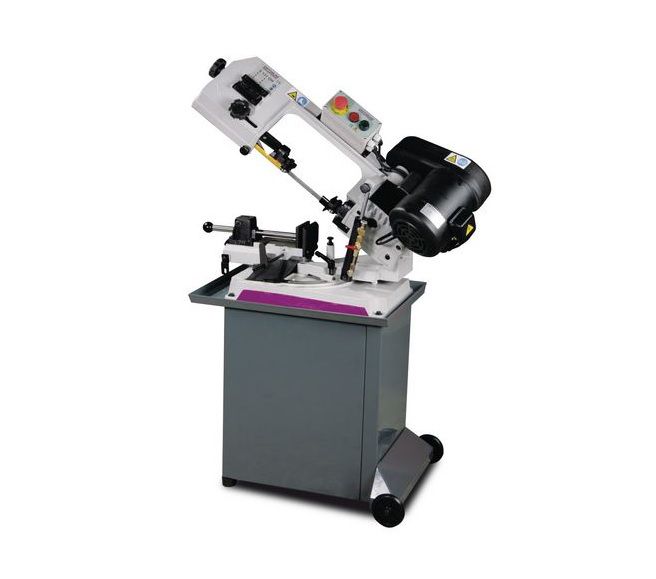

OPTIsaw S 131GH Metal Cutting Bandsaw and Stand 1100W 230v
ref: 3300131
Key Features
- OPTI-saw S 131GH OPTIsaw 3 Speed metal cutting bandsaw + 100x145mm max sawing cap + silent running + quick action vise + mobile base unit + 1100W motor 230v
- Metal band saw ideal for light sawing work. Miter saws from -45 ° to 60 ° via swiveling saw bow
- Circuit breaker for the belt cover and the saw band cover in low-voltage version
- Separate emergency stop impact switch
- Low-voltage electronics 24 V
- Silent run
- Mobile machine base

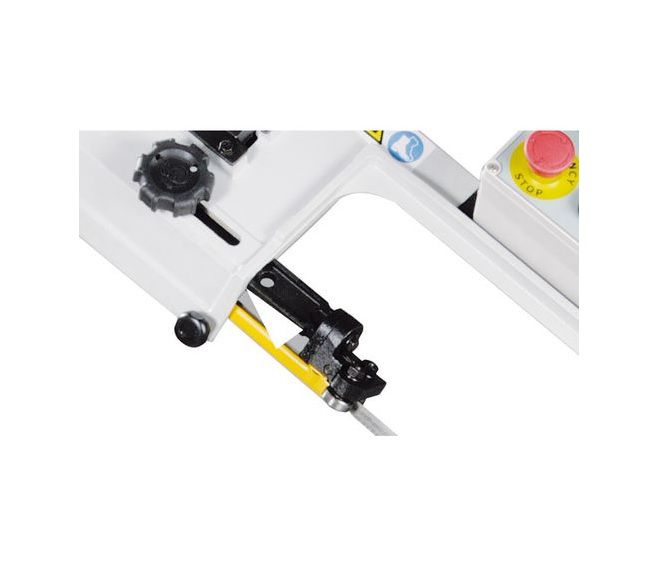

- Ball bearing saw band guide
- Three speed levels for a wide range of materials
- Micro switch for automatic limit switch

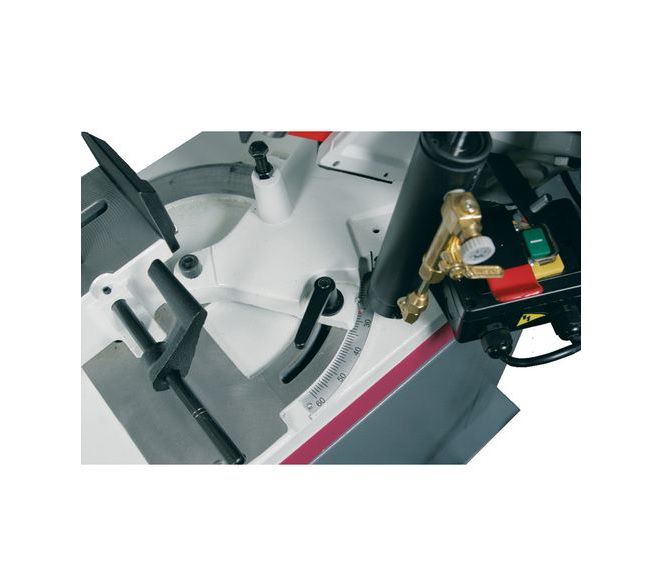

- Easy to read scale for angle adjustment
- As standard with high-quality bi-metal saw band
- Saw band tension adjustable on the front side via handwheel
- Adjustable material stop for serial work
- Quick-action vice for fast workpiece clamping
- With a powerful belt drive
- Includes material stop, bi-metal blade, base.
Technical details
Cutting ranges
- 0° round (full material): 128 mm
- 0° rectangle horizontal (full material): 100 x 145 mm
- -45° round (full material): 90 mm
- -45° rectangle horizontal (full material): 70 x 85 mm
- +45° round (full material): 90 mm
- +45° rectangle horizontal (full material): 70 x 85 mm
- +60° round (full material): 45 mm
- +60° rectangle horizontal (full material); 45 x 55 mm
- Explanation Cutting range: The cutting range was determined with aluminum. It can vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
Dimensions and weights
- Max. length: 1085 mm
- Max. height: 1300 mm
- Length approx.: 965 mm
- Width/depth approx.: 498 mm
- Height approx.: 978 mm
- Weight approx.: 78 kg
Electrical Data
- Drive motor output: 1,1 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Machine data
- Saw band speed(s): 22 / 31 / 55 m/min
- Saw band length; 1638 mm
- Saw band width: 13 mm
- Saw band thickness: 0,65 mm
- Cutting angle: -45 – +60 °
- Feed: infinitely variable
- Lifting the saw bow: Manual
- VPE: 1
