Sturmer Optimum OPTIsaw S 181G Metal Cutting Bandsaw 750W 415v
Product Code: STU/3300182
Brand: Stuermer
Stock Expected
Delivery typically within 2-3 weeks
£2,339.99 Inc. VAT
£1,949.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Optimum

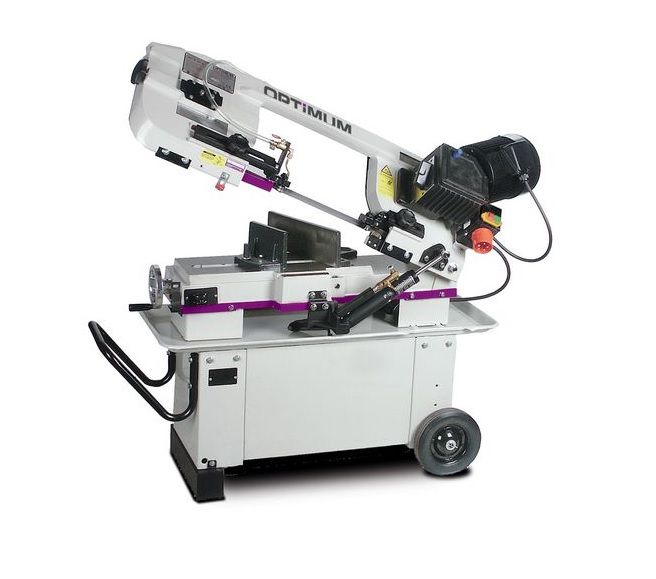

OPTIsaw S 181G Metal Cutting Bandsaw 750W 415v
ref: 3300182
Key Features
- OPTI-saw S 181 G 3 Speed metal cutting bandsaw + 180mm max sawing dia + silent running + quick action vise + mobile base unit + 750W motor 415v
- The metal band saw for demanding sawing work. With manual transmission and 3 sawing speeds
- Silent run
- Stable cast execution
- Lowering of the saw arm via hydraulic cylinder with throttle valve infinitely adjustable
- Micro switch for automatic limit switch
- Easy to read scale for angle adjustment
- As standard with high-quality bi-metal saw band
- Ball bearing saw band guide
- Robust machine base with large wheels and handy transport handle for easy location change of the machine
- Saw band tension adjustable on the front side via handwheel
- Adjustable material stop for serial work
- Fully equipped, allowing the user to be productive immediately after commissioning
- Includes material stop, bi-metal blade, machine base
Technical details
Cutting ranges
- 0° round (full material): 180 mm
- 0° quadratic (full material): 180 mm
- 0° rectangle horizontal (full material): 240 x 180 mm
- 0° rectangle upright (full material): 50 x 300 mm
- +45° round (full material): 110 mm
- +45° quadratic (full material): 150 mm
- +45° rectangle horizontal (full material): 110 x 170 mm
- Explanation Cutting range: Cutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
Dimensions and weights
- Max. width/depth: 600 mm
- Max. height: 1550 mm
- Work table height: 530 mm
- Length approx.; 1200 mm
- Width/depth approx.: 450 mm
- Height approx.: 1060 mm
- Weight approx.: 130 kg
Electrical Data
- Drive motor output: 0,75 kW
- Engine power coolant pump: 90 W
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Machine data
- Saw band speed(s): 45 / 67 / 77 m/min
- Saw band length: 2362 mm
- Saw band width: 19 mm
- Saw band thickness: 0.9 mm
- Cutting angle; 0 – 45 °
- Feed: infinitely variable
- Lifting the saw bow: Manual
- VPE: 1
