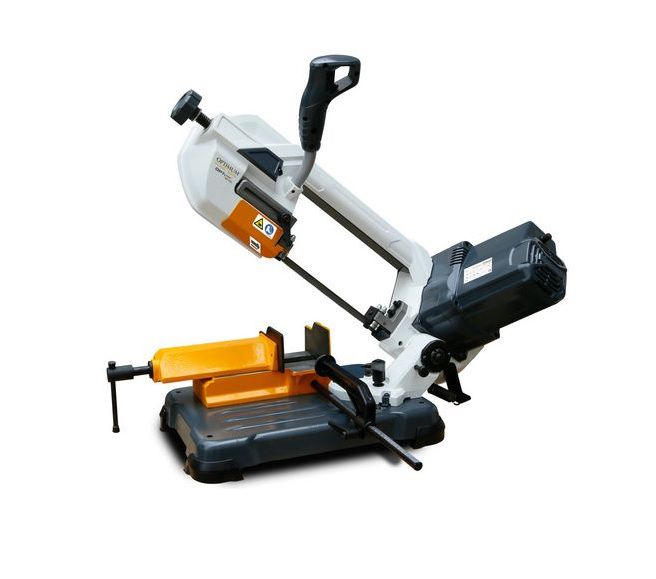

Sturmer Optimum OPTIsaw SQ-V13 Portable Metal Cutting Bandsaw 400W 230v
Product Code: STU/3194013
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£539.99 Inc. VAT
£449.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Optimum
OPTIsaw SQ-V13 Portable Metal Cutting Bandsaw 400W 230v
ref: 3194013
Key Features
- OPTI-saw SQ-V13 Portable metal cutting bandsaw + 125x125mm max sawing cap + vario cutting speeds 30-80 m/min + 0-60dg mitre cuts + fixed base att w vise + 400W motor 230v
- Portable bandsaw for mitre cuts with high cutting precision, especially low noise. With infinitely variable saw blade speed.
- Adjustable material stop for series work

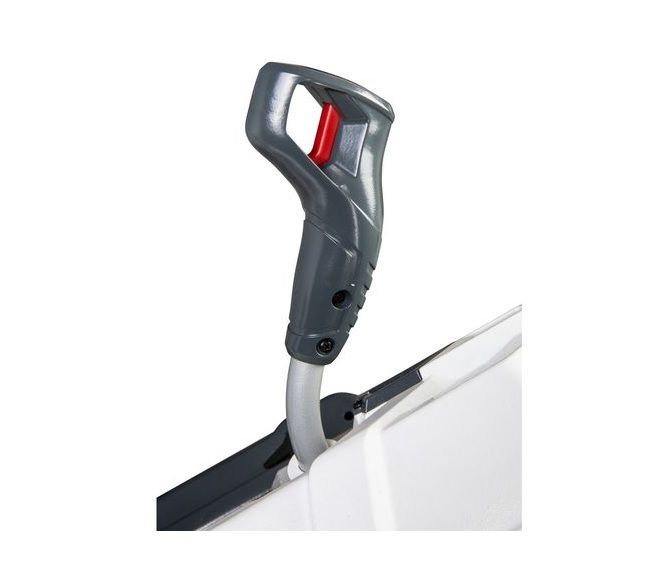

- Push button on the lever arm for saw blade run switches the run of the saw blade on and offbelt on and off
- bottom plate with non-slip feet
- saw bow can be swivelled from 0° to +60° to allow angular saw cuts
- Includes material stop, bi-metal blade
Technical details
Cutting ranges
- 0° round (full material): 125 mm
- 0° quadratic (full material): 125 mm
- 0° rectangle horizontal (full material): 125 x 125 mm
- +45° round (full material): 85 mm
- +45° quadratic (full material): 85 mm
- +45° rectangle horizontal (full material): 85 x 85 mm
- +60° round (full material): 50 mm
- +60° quadratic (full material): 50 mm
- +60° rectangle horizontal (full material): 50 x 50 mm
- Explanation Cutting range: The cutting range was determined with aluminum. It can vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
Dimensions and weights
- Max. length: 795 (open vice) mm
- Max. width/depth: 613 (with material stop) mm
- Max. height: 640 (lower end position) mm
- Length approx.: 670 mm
- Width/depth approx.: 382 mm
- Height approx.: 420 mm
- Weight approx.: 23.3 kg
Electrical Data
- Drive motor output: 0.4 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Machine data
- Saw band speed(s): 30 – 80 m/min
- Saw band length: 1440 mm
- Saw band width: 12,5 mm
- Saw band thickness; 0,6 mm
- Cutting angle: 0 – 60 °
- VPE: 1
