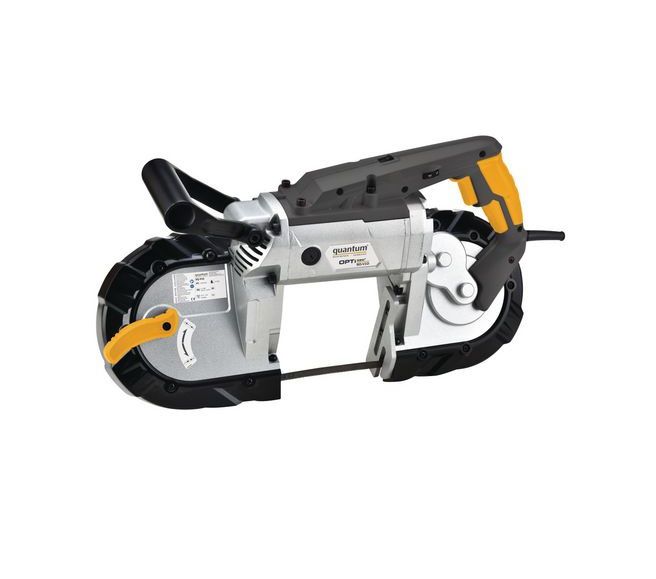

Sturmer Optimum Quantum SQ-V10 Metal Cutting Hand Bandsaw 1100W 230v

Sturmer Optimum

Quantum SQ-V10 Metal Cutting Hand Bandsaw 1100W 230v

ref:3184210

• OPTI-saw   SQ-V10 Vario speed portable multi-app cutting bandsaw + 42-144 m/min + carry case standard + 1100W motor 230v
• Powerful 1.1 kW motor
• Ideal suitable for sawing off solid steel materials with low tensile strength and preferably for sawing off pipes, profiles made of steel, aluminum and non-ferrous metals.
• Also suitable for cutting wood, plastics and other thin non-ferrous metals
• Detachable from the optional work table for flexible use
• Strong bridge construction with aluminum frame

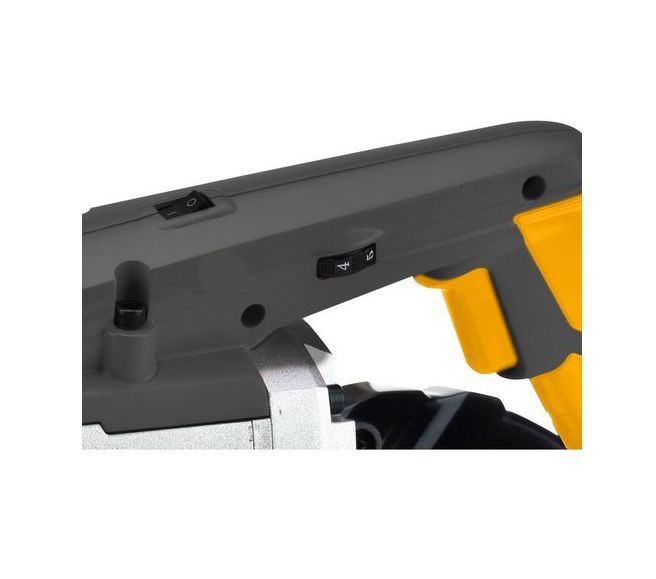

• Variable saw blade speed for different materials

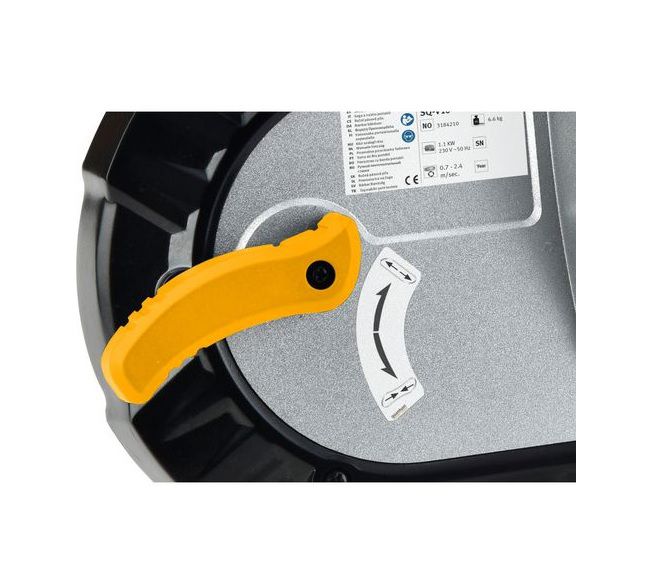

• Easy to operate saw blade clamps and adjusting screws ensure permanently precise band run
• The saw allows gentle material handling, virtually spark-free sawing without coolant
• Transport case
• LED working light illuminates dark working surfaces for precise cutting
• Reduced cutting noise
• The correct working position is always maintained by the adjustable additional handle

Cutting ranges

• 0° round (full material): 127 mm
• 0° quadratic (full material): 127 mm
• 0° rectangle horizontal (full material): 127 x 127 mm
• +45° round (full material): 40 mm
• +45° quadratic (full material): 40 mm
• +45° rectangle horizontal (full material): 40 x 120 mm

Dimensions and weights

• Length approx.: 465 mm
• Width/depth approx.: 280 mm
• Height approx.: 165 mm
• Weight approx.: 6,6 kg

Electrical Data

• Drive motor output: 1,1 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz

Machine data

• Saw band speed(s): 42 – 144 m/min
• Saw band length: 1140 mm
• Saw band width: 13 mm
• Saw band thickness: 0,65 mm
• Sawing capacity max.: 127 x 80 mm
• VPE: 1
