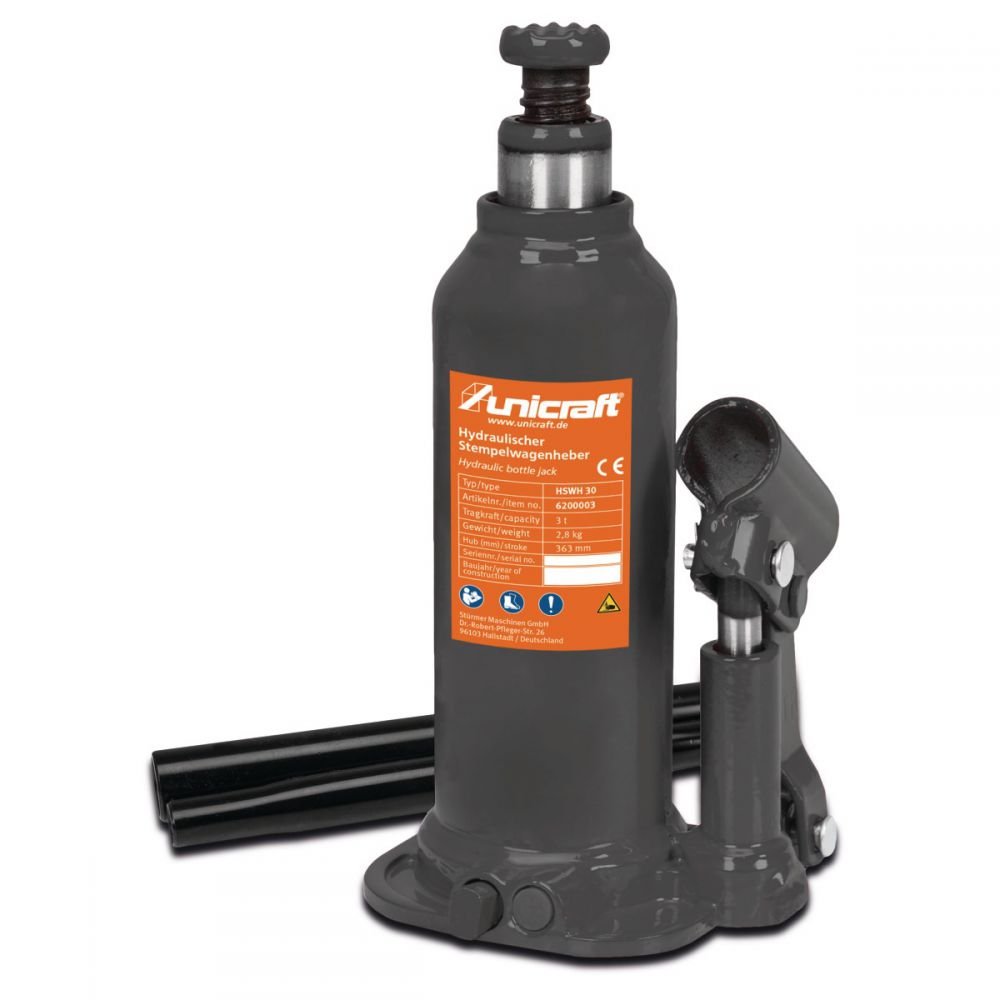

Sturmer Unicraft HSWH 30 Hydraulic Stamp Jack 3 Ton

Sturmer Unicraft

HSWH 30 Hydraulic Stamp Jack 3 Ton

ref: 6200003

• HSWH 30-ECO 3T Hydraulic stamp jack + cast iron base plate + 363mm lift height
• Jack with extremely resilient cylinder
• Extremely stable and tilt-resistant thanks to the large base plate made of special cast iron
• Particularly robust, stable and durable thanks to the reinforced wall
• Smooth-running two-piece pump rocker arm with fit for valve control
• Very low stand height
• Rotatable stamp for additional height adjustment
• Stamped plate corrugated for secure support

• Load-bearing capacity: 3 t
• Min. height: 188 mm
• Adjustment height: 60 mm
• Lift: 115 mm
• Lifting height: 363 mm
• Footprint length: 108.5 mm
• Footprint width: 87 mm

Dimensions and weights

• Length approx.: 108.5 mm
• Width/depth approx.: 87 mm
• Height approx.: 188 mm
• Weight approx.: 2,8 kg
