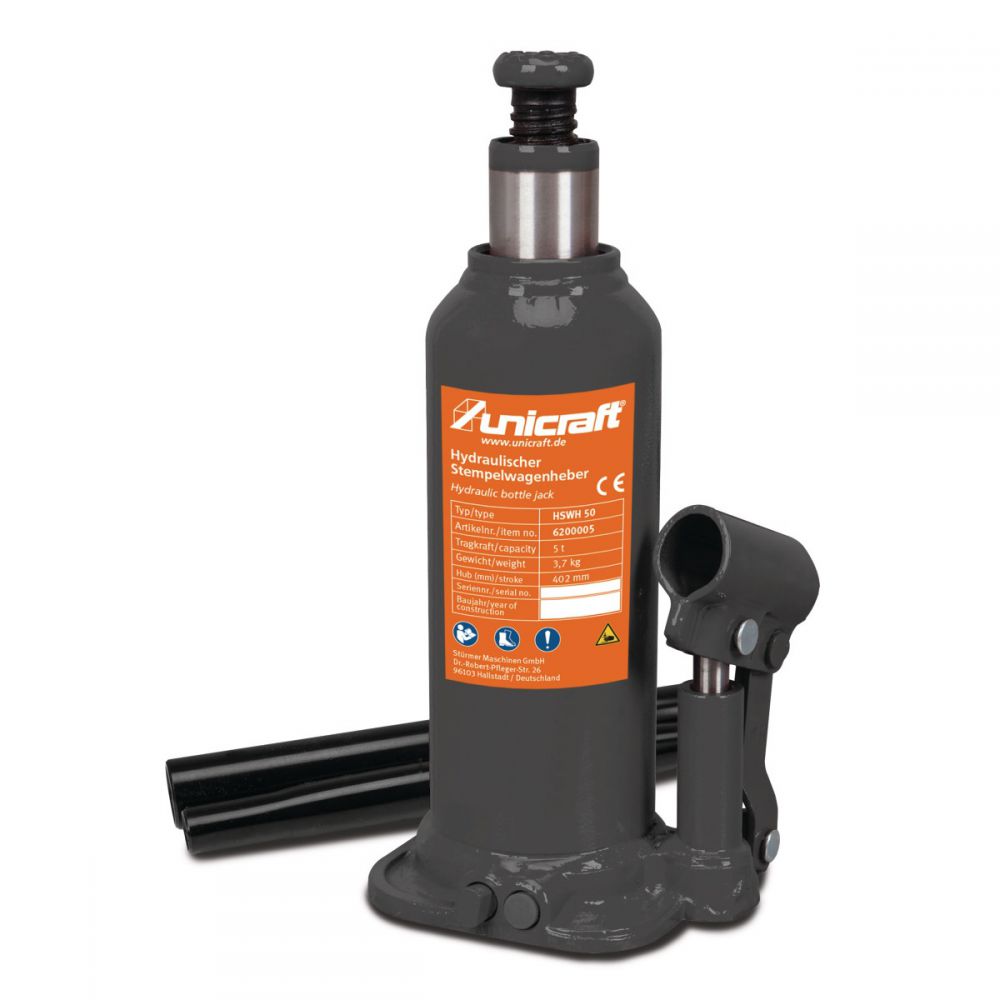

Sturmer Unicraft HSWH 50 Hydraulic Stamp Jack 5 Ton

Sturmer Unicraft

HSWH 50 Hydraulic Stamp Jack 5 Ton

ref: 6200005

• HSWH 50-ECO 5T Hydraulic stamp jack + cast iron base plate + 402mm lift height
• Jack with extremely resilient cylinder
• Extremely stable and tilt-resistant thanks to the large base plate made of special cast iron
• Particularly robust, stable and durable thanks to the reinforced wall
• Smooth-running two-piece pump rocker arm with fit for valve control
• Very low stand height
• Rotatable stamp for additional height adjustment
• Stamped plate corrugated for secure support

• Load-bearing capacity: 5 t
• Min. height: 207 mm
• Adjustment height: 70 mm
• Lift: 125 mm
• Lifting height: 402 mm
• Footprint length: 117 mm
• Footprint width: 97 mm
• VPE: 1

Dimensions and weights

• Length approx.: 117 mm
• Width/depth approx.: 97 mm
• Height approx.: 207 mm
• Weight approx.: 3.7 kg
