Sturmer Unicraft MES 600-2 Mini Electric Cable Hoist 300/600kg Lift Capacity 230v
Product Code: STU/6198260
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£191.99 Inc. VAT
£159.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Sturmer Unicraft

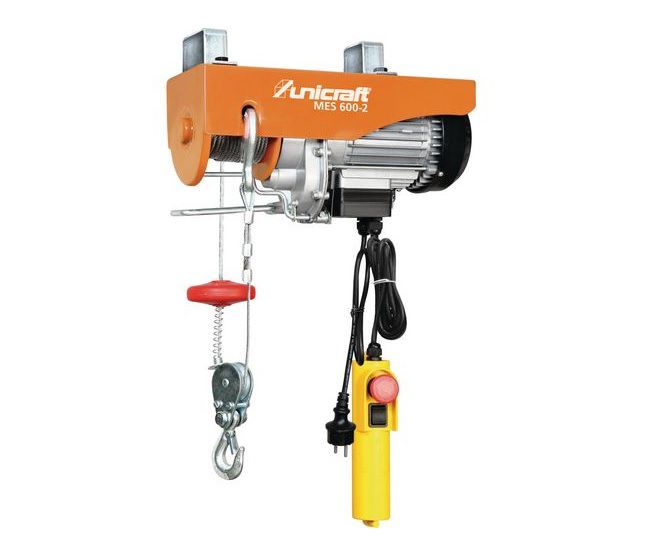

MES 600-2 Mini Electric Cable Hoist 300/600kg Lift Capacity 230v
ref: 6198260
Key Features
- MES 600-2 Mini lifting cable + 300/600 kg lift capacity + emergency stop switch + twin sturdy clamps for fastening + 1050W motor 230v
- With deadman switch
- Emergency stop switch for safe working
- Lifting height without/with deflection pulley 12 m/6 m
- Pulley with load hook
- With two sturdy double clamps for fastening
- Control switch insulated according to IP54
- Limit switch for immediate shutdown in upper and lower end position
- Note: The standard version of the electric wire rope hoist is equipped with a special clamp mounting system with a special profile for mounting on edge tubes. Accessories are required for mounting on round tubes.
Technical details
- Control unit cable length: 1,5 m
- Lifting force without deflection pulley: 300 kg
- Lifting force with deflection pulley: 600 kg
- Stroke without deflection pulley: 12 m
- Stroke with deflection pulley: 6 m
- Max. lifting speed without deflection pulley: 8 m/min
- Max. lifting speed with deflection pulley: 4 m/min
- VPE: 1
Dimensions and weights
- Cable diameter: 4.5 mm
- Inside dimensions of fastening clamps: 46 x 46 mm
- Weight approx.: 17.5 kg
Drive output
- Main motor: 1050 W
Electrical Data
- Degree of protection: IP 54
- Supply voltage: 230 V
- Mains frequency: 50 Hz
