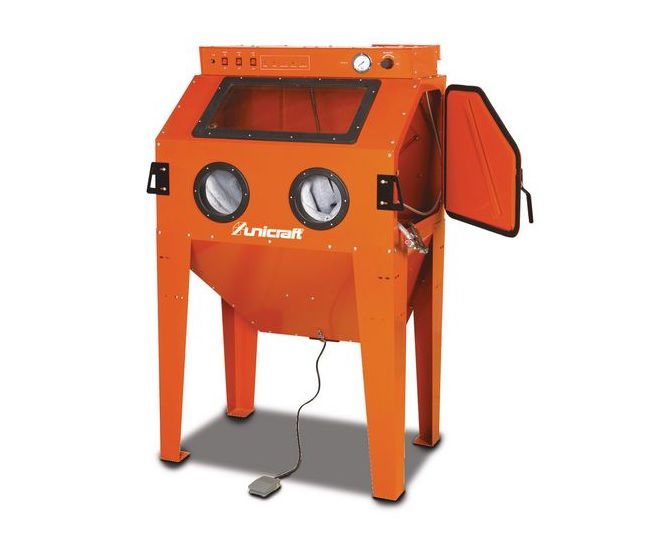

Sturmer Unicraft SSK 2.5 Floor Standing Multi-App Sand Blaster - 310Ltr Cabin

X
Product Code: STU/6204003
Brand: Stuermer
Stock Expected
Delivery typically within 2-3 weeks
£1,199.99 Inc. VAT
£999.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Unicraft

SSK 2.5 Floor Standing Multi-App Sand Blaster - 310Ltr Cabin

ref: 6204003



Key Features

  • SSK 2.5 Floor standing Multi-app sand blaster + 120kg max load weight + 2 x HQ blasting guns (1 fixed) + 4 x ceramic nozzles + 5 x replacement foils for viewing windows
  • For clean blasting without pollution of the working environment
  • Suitable for various blasting materials, eg quartz, glass ball, plastic ball, etc.
  • Ideal for cleaning, rust removal or paint removal of metal parts of all kinds, eg engine parts, fittings, signs, housings, rims, hinges
  • High-quality work gloves made of latex are firmly attached to the housing
  • Optimum vision and work safety during workpiece machining due to the lens with glued-on protective foil
  • Dust-free work due to circumferential seals on cover and door frame

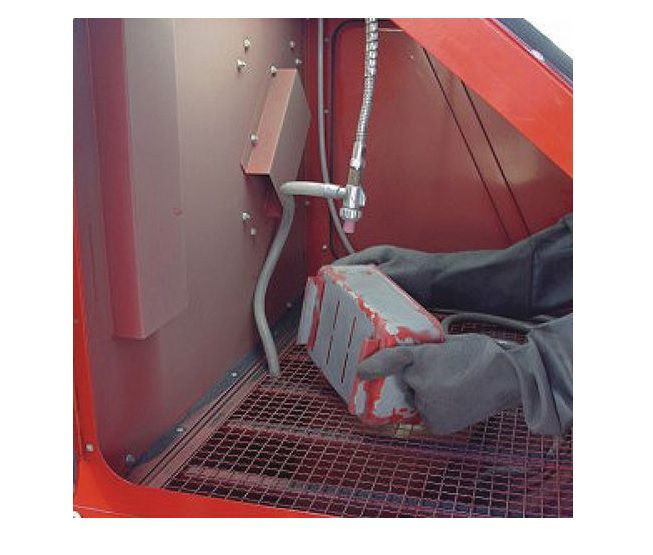

  • Stable storage grid allows laying of workpieces in the cabin interior
  • With drain opening for changing the blasting material
  • Suction pipe for the blasting material attached to the bottom of the collecting container
  • With compressed air connection on the outside
  • Glass bead blasting, corundum blasting, silicon carbide, plastic blasting, etc. can be used

Room amenities:

  • Two large side doors for loading and unloading on both sides, even for longer workpieces

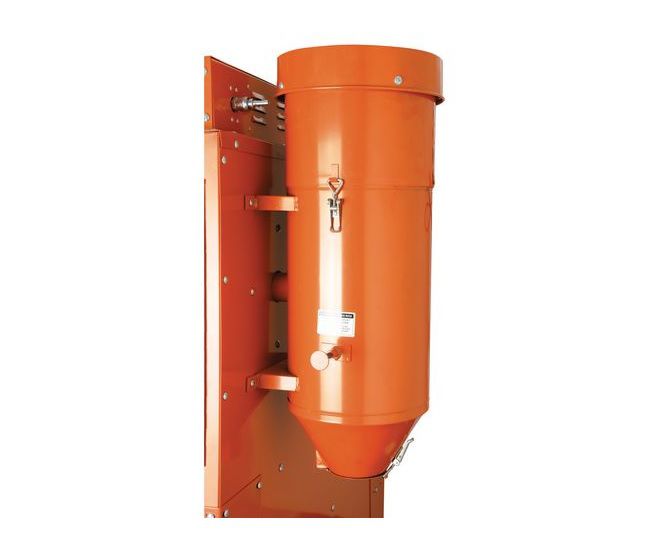

  • Integrated extraction system with replaceable air filter
  • Airflow control via foot pedal

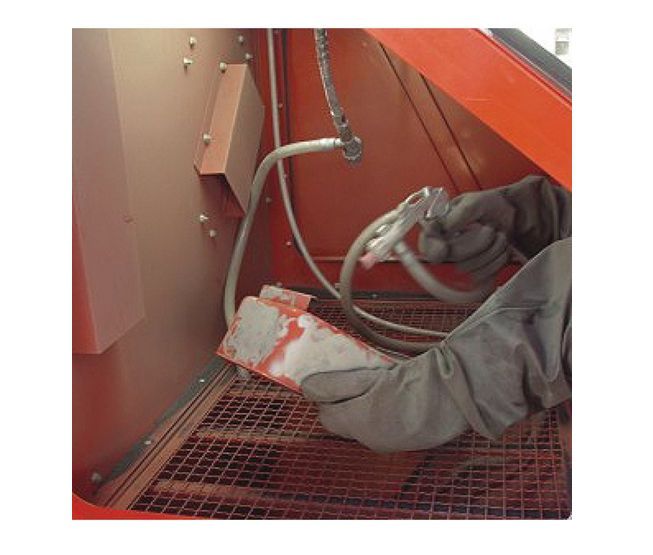

  • 2 blasting guns: One fixed and one free moving blasting gun
  • Three separate switches for on / off, exhaust and cabin lighting
  • Two fluorescent tubes (230 volts), in separate housing with protective screen and interchangeable protective foil, including five replacement foils
  • Regulation of working pressure via pressure regulator with manometer



Items included

  • High quality blasting gun with ceramic nozzle
  • 4 ceramic nozzles (4/5/6/7 mm)
  • 5 replacement foils for viewing windows



Technical details

  • Air requirement average, approx.: 200 – 350 l/min
  • Working pressure: 4.1 – 8.0 bar
  • Abrasive grain size recommended: 0.2 – 0.3 mm
  • Max. abrasive grain size: 0.125 – 0.45 mm
  • Max. load of grid: 120 kg
  • Max. weight of blast media: 50 kg
  • Extraction performance: 2.5 m³/h
  • Extraction unit negative pressure: 8.5 kPa
  • Extraction unit volume flow: 156 m³/h
  • VPE: 1

Dimensions and weights

  • Cabin volume: 310 l
  • Cabin interior length: 945 mm
  • Cabin interior width: 605 mm
  • Cabin interior height: 605 mm
  • Diameter of hand hole: 195 mm
  • Length approx.: 960 mm
  • Width/depth approx.: 900 mm
  • Height approx.: 1640 mm
  • Weight approx.: 90 kg

Electrical Data

  • Extraction absorbed power: 1200 W

Side door (see drawing)

  • A: 541 mm
  • B: 575 mm
  • C: 316 mm
  • D; 265 mm
