TRACER APS12 12" Pro Square

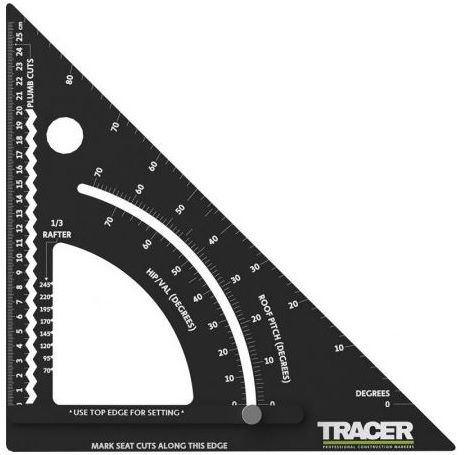

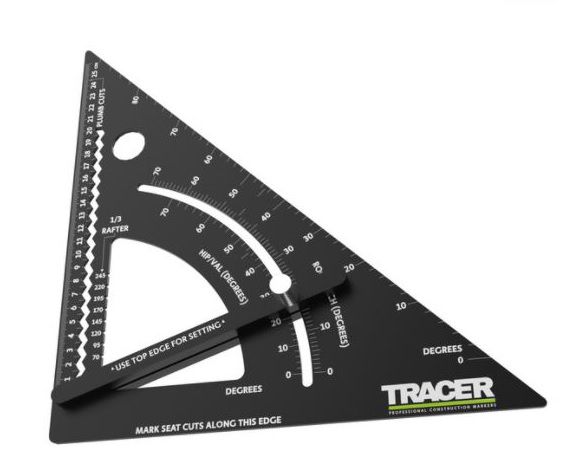

TRACER 12" Pro Square - APS12

THE FASTEST AND SIMPLIST TOOL FOR MARKING OUT COM, JACK, HIP AND VALLEY CUTS.

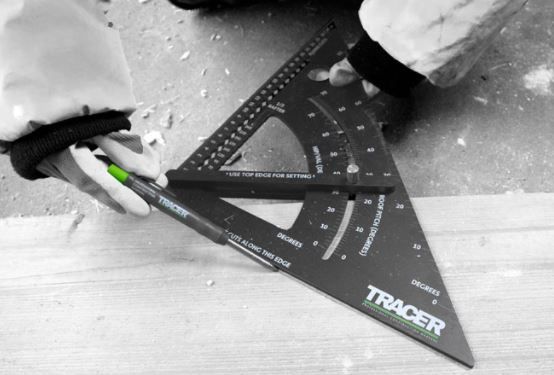

• COMMON AND JACK MEASUREMENTS - Simply set the TRACER ProSquare to the same pitch of the roof by moving the adjustable arm to the required angle, lock it off. Once the roof pitch measurement is set the angle will be correct for both the Seat and Plumb cuts. The TRACER Prosquare uses a metric measurement system so no manual conversion is required making this square considerably more convenient to use.
• HIP AND VALLEY SCALE - This is another piece of magic – historically a complex calculation to work out the Seat and Plum cuts on Hip and Valley cuts, not here! Again, simply set the HIP/VALLEY scale to the pitch of the roof and the square is set up for marking your Seat/Plum cuts on your Hip and Valley rafters – simple as that.
• BIRDS MOUTH MARKINGS - Birds mouths are normally 1/3rd of the depth of the timber. To simplify this process, the TRACER ProSquare features a 1/3 rafter marking guide. By selecting the notch that matches your timber width you can quickly and easily mark out the required depth. Only available on the 12” Prosquare it is premarked with the most common widths of timber so no calculations are required.
• PARALLEL MARKS - Simply mark parallel lines with the ‘parallel’ mark on the side of the square – marked at 5mm increments, simply locate your pencil in the necessary depth and slide along the desired length of your timber. Perfect parallel lines every time!
• COMMON SET SQUARE - The long edge of the square has two main functions, the first, with the adjustable arm set at ‘0’ it can be used like a common set-square and has a ruler from 0-260mm. The second, like the set-square, is the ability to quickly create an angled mark. Just pivot the square using the graduations on this outer edge as a guide. You can now quickly and simply pivot the square to mark any angled cuts from 0°-90°.

• COM & JACK SCALE - Set scale to match the pitch of the roof.
• HIP & VALLEY SCALE - Set scale to match the pitch of the roof.
• COMMON 1–90° SCALE - On outside edge for all other angles, cuts and marks
• Easy to read scale markings.
• Uses metric measurement system.

• True 90° angle.
• Lockable arm, either set to desired angle or set to zero and use as a normal quick square.
• Pre-marked 1/3rd of width of timber for seat cuts.
• 0-260mm ruler on ‘plumb’ edge, with 5mm gradations for marking parallel lines.
