TREND AR/JIG APERTURE RADIUS JIG

X
Product Code: AR/JIG
Brand: Trend
In Stock
£111.72 Inc. VAT
£93.10 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Trend

Trend Routing On-Site Jigs

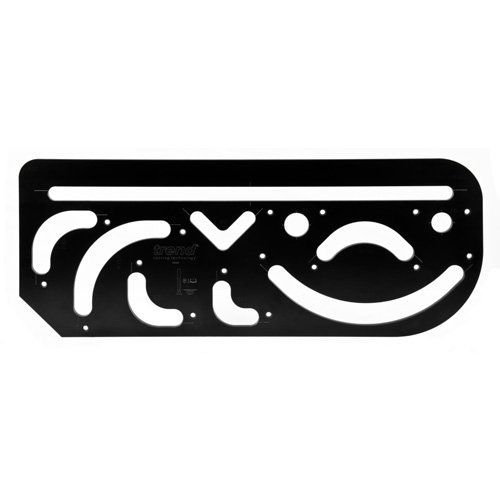

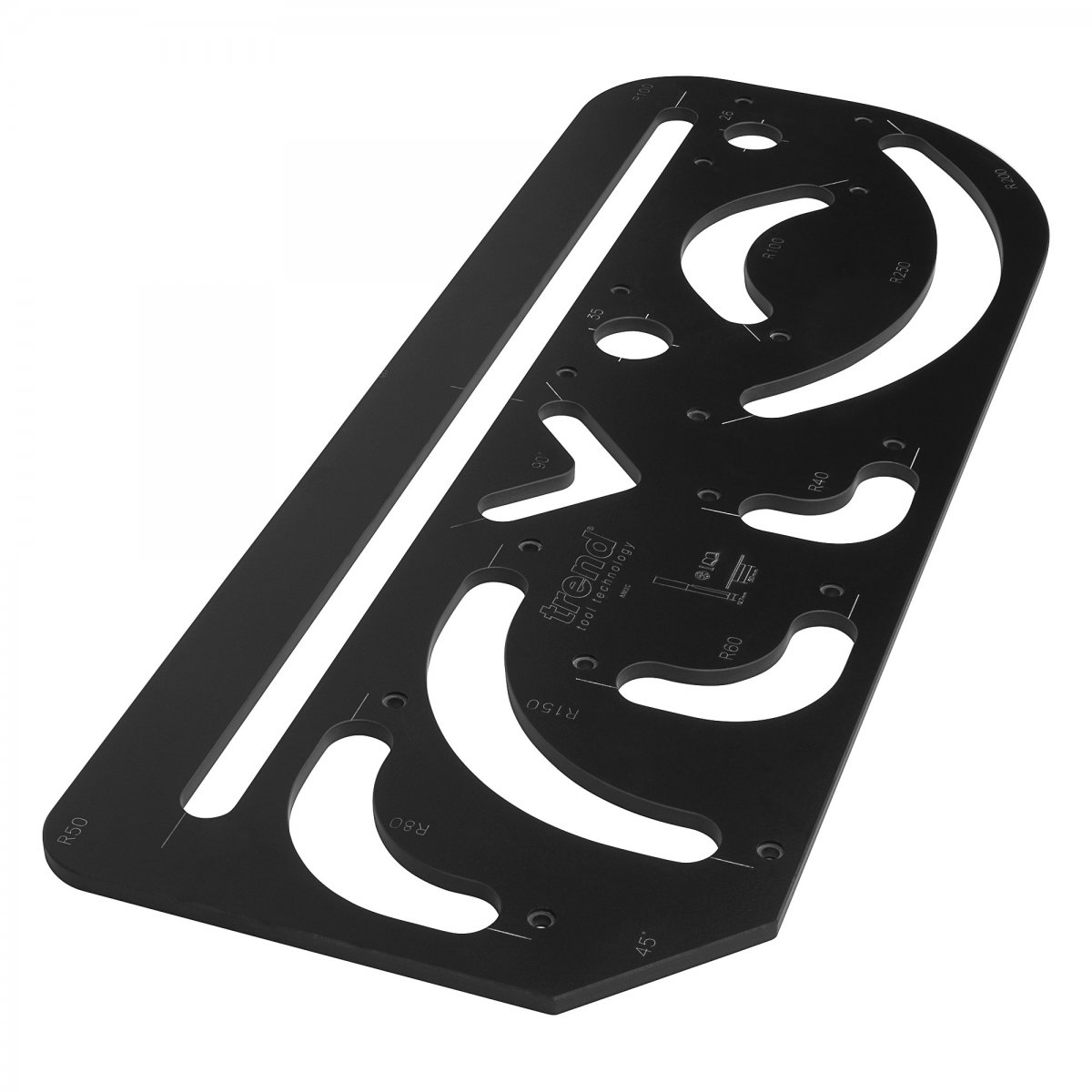

Aperture Radius Jig
Ref: AR/JIG



Key Features

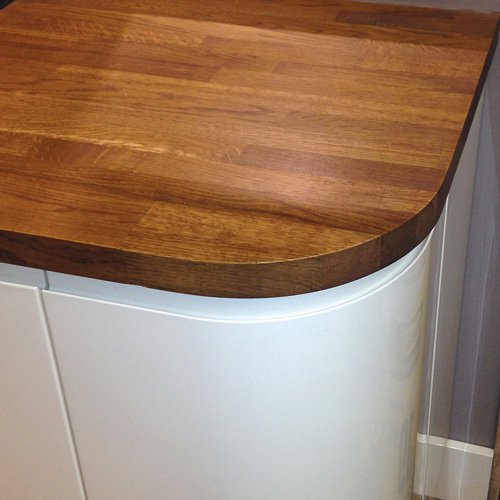

  • A jig to rout out apertures, recesses and radii in work tops to fit a range of sinks and hobs, and to suit curved cabinets
  • Will cut both an internal and external radiius with the use of either pins or engraved sight lines
  • Made from 12mm hardwearing CNC machined Compact Grade High Pressure Laminate
  • Will cut a 90 degree angle, which when combined with the straight slot will allow a hob or sink aperture to be routed. Central slot allows cuts up to 820mm long

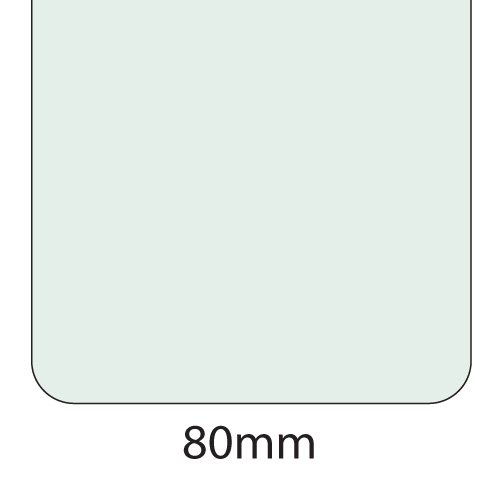

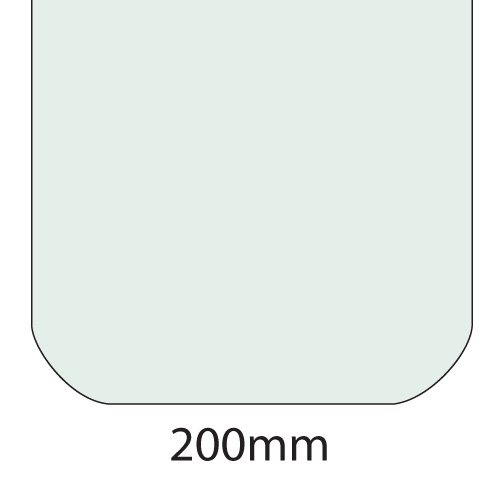

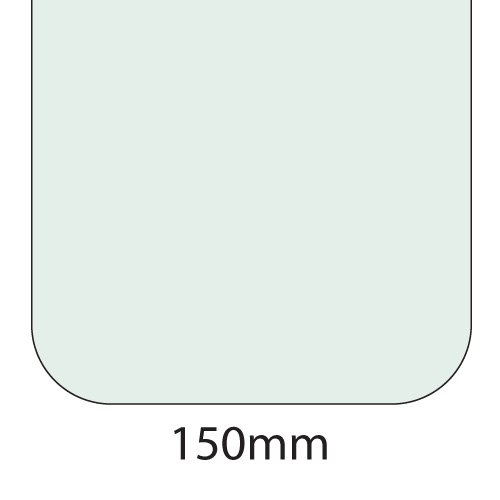

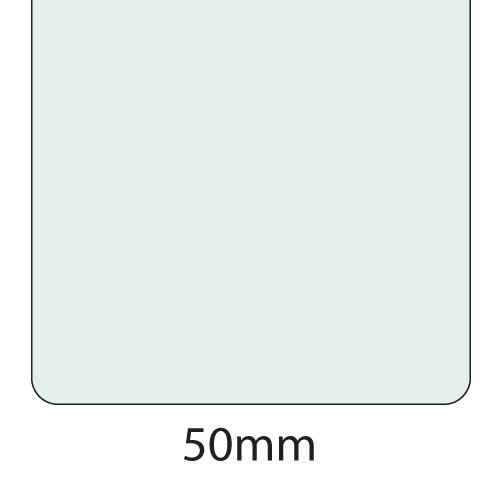

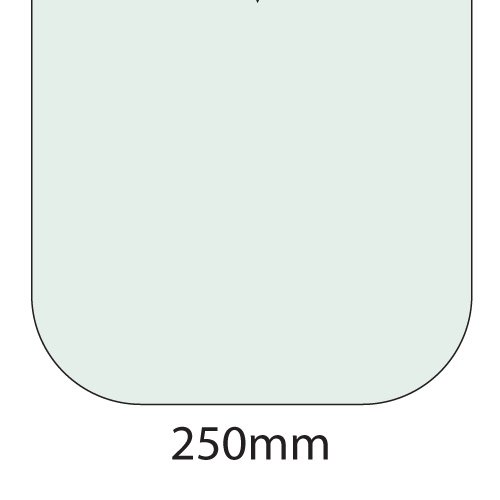

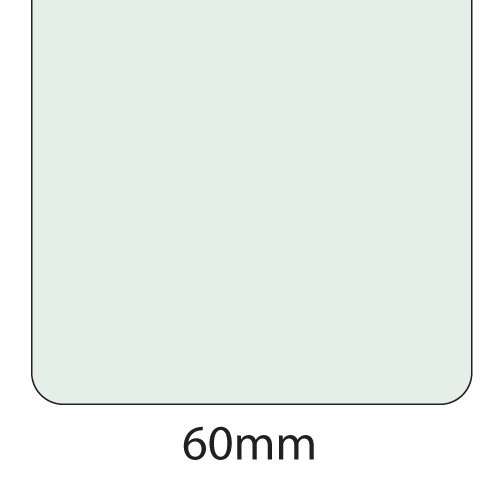

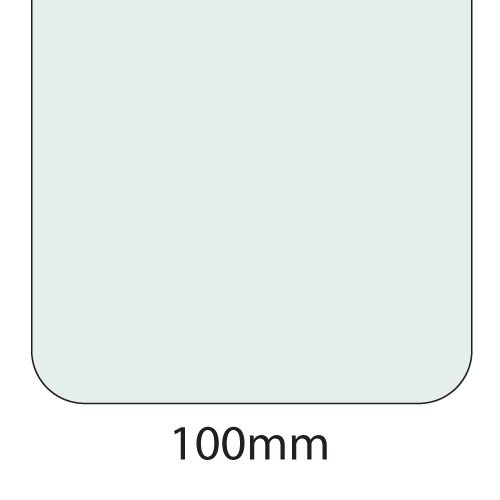

  • Radius curves at 40mm, 60mm, 80mm, 100mm, 150mm and 250mm, and has external radii of 50mm, 100mm and 200mm

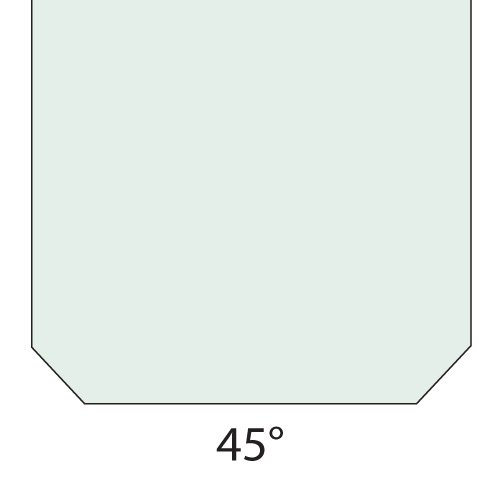

  • Jig has a 45 degree end cut , plus 26mm and 35mm cabinet door hinge recess facility
  • Engraved lines to position jig to marked position on the worktop
  • Each of the six radius curves is paired with a set of peg holes that will set the jig to work top edge
  • Pins made from ABS plastic for strength

Jig requires:

  • A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts
  • A template guide bush with 30mm outside diameter
  • A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
  • Two clamps



Items included

  • 4 x Pins
  • 1 x Manual



Specification

  • Corner angle: 90 degree
  • Slot length: 830 mm
  • Radius curves: 40, 60, 80, 100, 150 & 250 mm
  • External radius: 50, 100 & 200 mm
  • End cut: 45 degrees
  • Kitchen hinge recess: 26 mm & 35 mm
  • Length: 1000 mm
  • Thickness: 12 mm
  • Width: 390 mm
  • Weight: 4.6 kg



Optional Accessories

Description

Product Reference
1. TCT Router cutters
Professional 3/83DX1/2TC
Trade TR17DX1/2TC
CraftPro C153DX1/2TC
2. Guide bush 30mm GB30/A
3. F-clamp (two required) FC/200



Replacement Parts

Description

Product Reference
5. Pins 10mm diameter (ABS plastic pack of 4) KWJ/PIN/4



Trend AR/JIG Manual
