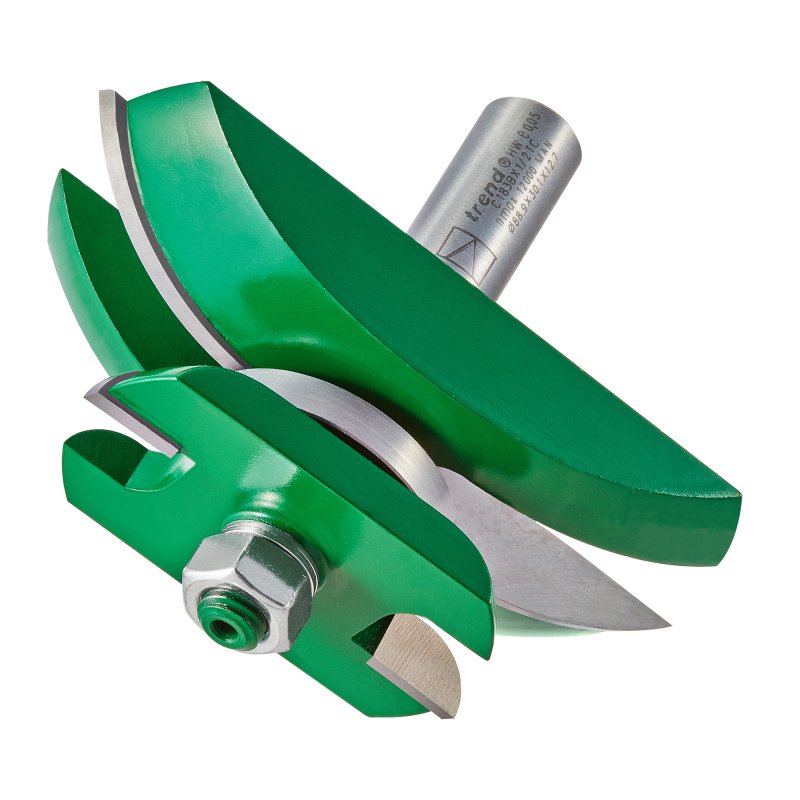

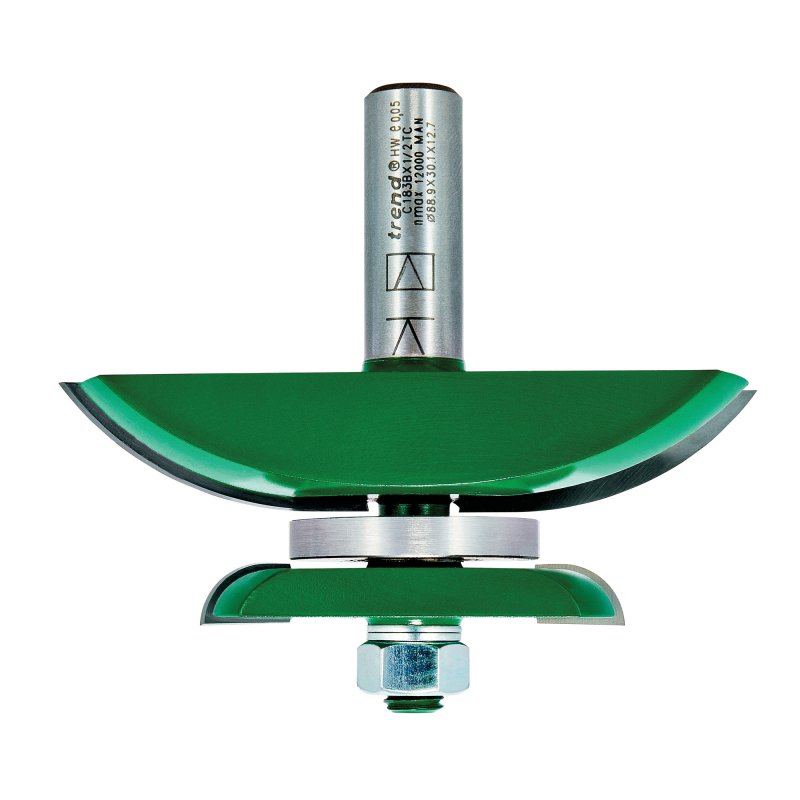

TREND C183BX1/2TC GUIDED RADIUS PANEL WITH BACK CUTTER 40.0MM RAD

TREND C183BX1/2TC
GUIDED RADIUS PANEL WITH BACK CUTTER 40.0MM RAD

• Panel raiser cutters for producing the panel for cabinet panelled doors.
• The tool is fitted with a back cutter to ensure a maximum panel tongue thickness of 6.3mm.

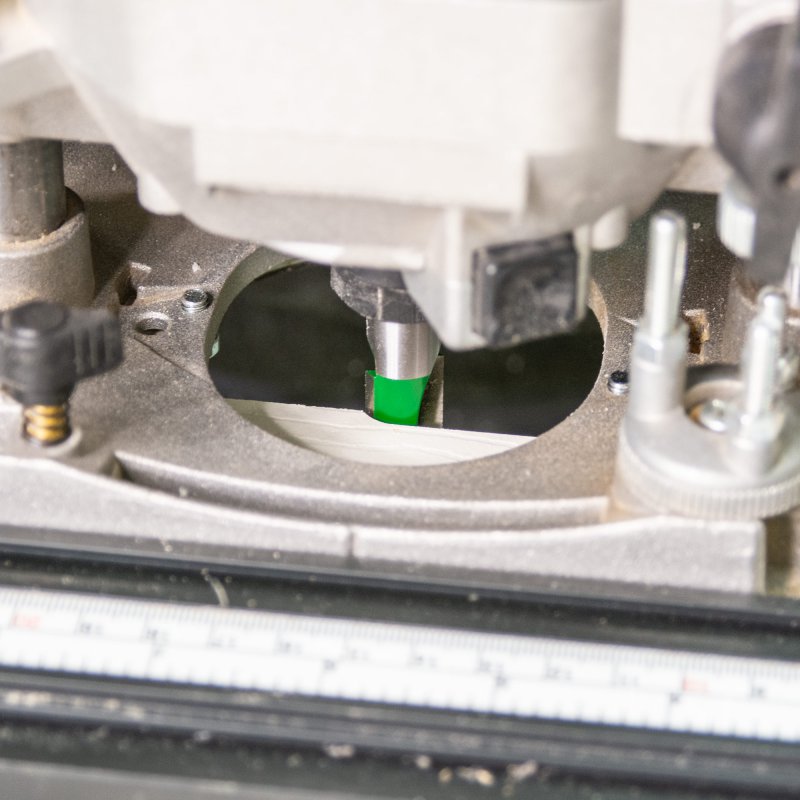

• Must be used in a stationary variable speed router either mounted overhead or inverted in a router table at a reduced speed.
• For use on natural timber and MDF.
• Take several passes by adjusting back fence position with each pass.
• Stationary use only.
• Back cutter must be fitted at 90 degrees to main tool to reduce the cutting impact.

• Cutter Diameter Metric (D): 88.9 mm
• Metric (d): 54 mm
• Cut Length Imperial (C): 5/8 inch
• Cut Length Metric (C): 16 mm
• Bearing Diameter Metric (B): 16 mm
• Metric (B2): 31.8 mm
• Metric (R): 40 mm
• Tongue: 6.3 mm
• Reveal: 28.6 & 36.4 mm
• Overall Length Metric: 77.5 mm
• Grade: TCT - Tungsten Carbide Tipped
