TREND C184AX1/2TC GUIDED OGEE PANEL WITH BACK CUTTER 22.2MM RAD

X
Product Code: C184AX1/2TC
Brand: Trend
Please Call for Information
£95.13 Inc. VAT
£79.28 Exc. VAT
Trend

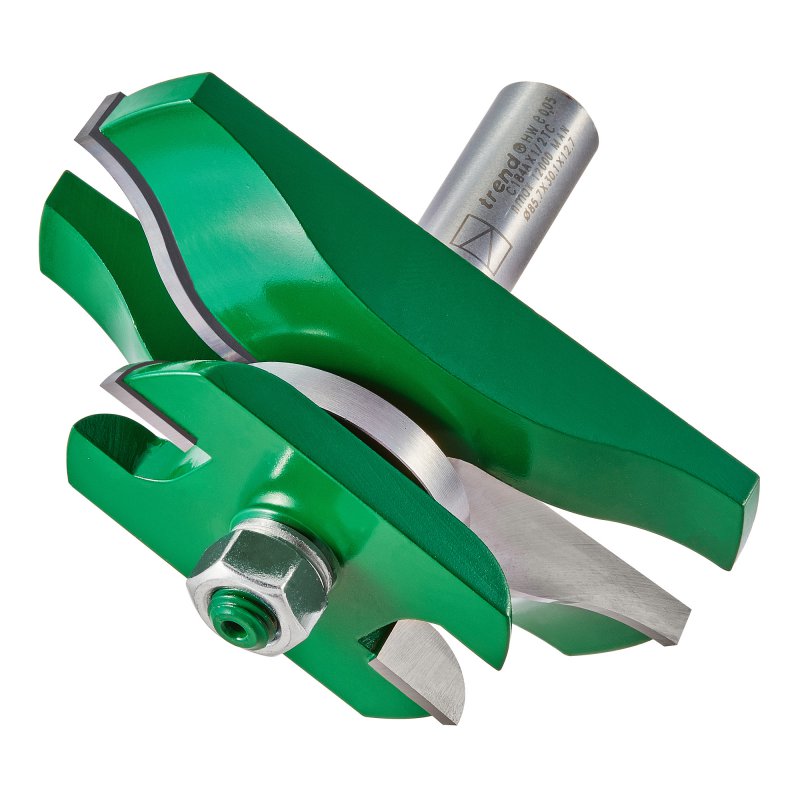

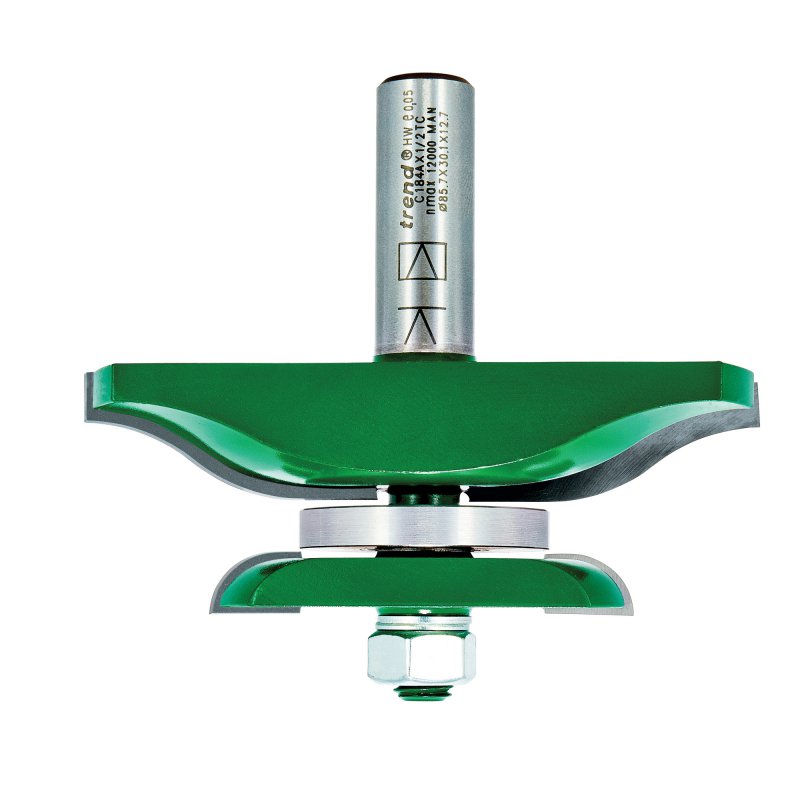

TREND C184AX1/2TC
GUIDED OGEE PANEL WITH BACK CUTTER 22.2MM RAD



Key Features

  • Panel raiser cutters for producing the panel for cabinet panelled doors.
  • The tool is fitted with a back cutter to ensure a maximum panel tongue thickness of 6.3mm.
  • Must be used in a stationary variable speed router either mounted overhead or inverted in a router table at a reduced speed.
  • For use on natural timber and MDF.
  • Take several passes by adjusting back fence position with each pass.
  • Stationary use only.
  • Back cutter must be fitted at 90 degrees to main tool to reduce the cutting impact.

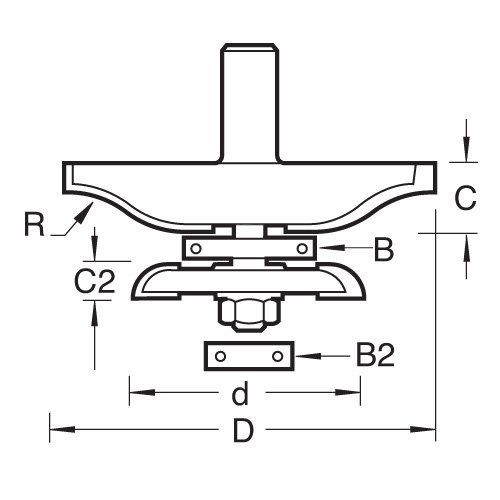

Specification

  • Cutter Diameter Metric (D): 85.73 mm
  • Metric (d): 54 mm
  • Cut Length Imperial (C): 5/8 inch
  • Cut Length Metric (C): 16 mm
  • Bearing Diameter Metric (B): 16 mm
  • Metric (B2): 31.8 mm
  • Metric (R): 22.2 mm
  • Tongue: 6.3 mm
  • Reveal: 27 & 34.9 mm
  • Overall Length Metric: 78.5 mm
  • Grade: TCT - Tungsten Carbide Tipped
