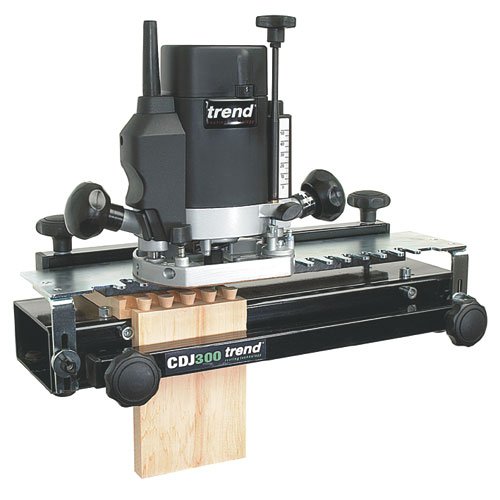

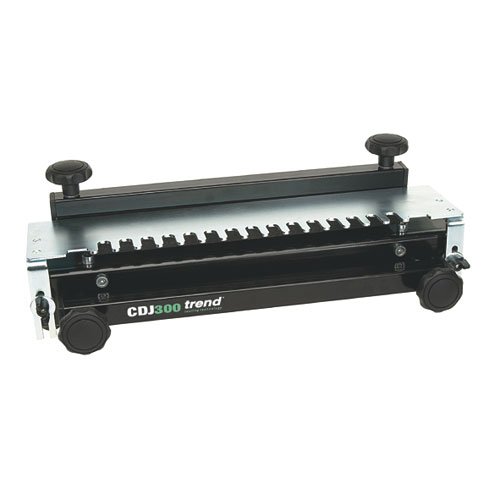

TREND CDJ300 CRAFT DOVETAIL JIG 300MM

X
Product Code: TRECDJ300
Brand: Trend
In Offsite Stock - Delivery in 4 to 5 Days
£245.55 Inc. VAT
£204.63 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Qty
Trend











Trend Routing Workshop Jigs
Craft Dovetail Jig 300mm 1/4-inch shank
Ref: CDJ300



Key Features

  • An accurate and easy to use Dovetail Jig for a variety of elegant dovetail joints
  • Cuts 12.7mm (1/2 inch) wide half blind dovetails or rebated dovetails in one operation
  • Precision made laser cut zinc plated steel template with packing piece
  • A Unibase and fine height adjuster may be required for certain makes of router
  • A range of accessory templates are available for box joint, dowel and through dovetails



Items included

  • 1 x 1/4" Shank TCT 104 degree dovetail cutter
  • 1 x 15.8mm Guide bush



Specification

  • Rating: Craftsman
  • Dovetail size: 12.7 mm
  • Cutter shank: 1/4"
  • Workpiece width max: 300 mm
  • Workpiece thickness min: 12 mm
  • Workpiece thickness max: 25 mm
  • Guide bush size: 15.8 mm
  • Router base dia. max:180 mm



Online Video



Replacement Parts

Item

Description Product Reference
Replacement dovetail cutter Diameter 12.7 mm x 104 degrees C041AX1/4TC
Replacement guide bush Diameter 15.8 mm GB158



Optional Accessories

Lapped Dovetail



Description

Product Reference
Lapped dovetail templates:
  CDJ300/01
  CDJ600/01
Cutter C154X1/4TC
Unibase UNIBASE

Box Joint

Description

Sizing Product Reference
Box joint templates:
    CDJ300/03 (8mm)
    CDJ300/02 (12.7mm)
    CDJ600/02 (12.7mm)
Cutter for 8mm template Diameter 8mm x 25mm cut C012AX1/4TC
Cutter for 12.7mm template Diameter 12.5mm x 25mm cut C021AX1/4TC

32mm Centre Dowelling

Description

Sizing Product Reference
Dowel templates:
    CDJ300/04
    CDJ600/04
Suggested router dowel drills
  Diameter 3mm x 14mm cut C180X1/4TC
  Diameter 5mm x 35mm cut C174X1/4TC
  Diameter 6mm x 35mm cut C175X1/4TC
  Diameter 8mm x 35mm cut C176X1/4TC
  Diameter 10mm x 35mm cut C177X1/4TC

Through Dovetail

Description

Additional information Product Reference
Through dovetail template Dual sided for Pin & Tail. 2 cutters are requred for each template (Straight and Dovetail) CDJ300/05 (12.7mm)
Cutters for 12.7mm template:
  98 degree Dovetail cutter C178X1/4TC
  Straight Cutter 8mm diameter C012AX1/4TC

Cutters for 12.7mm template(discontinued):


  97 degree Dovetail cutter 8mm or 1/2" shank C179
  Straight Cutter 12.7mm dia. 8mm or 1/2" shank C021



Trend CDJ300 / CDJ600 Manual
