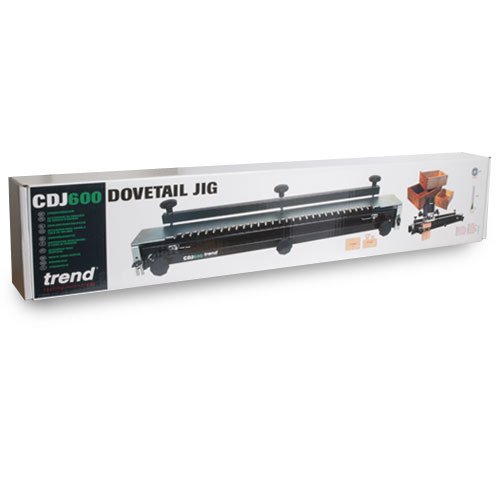

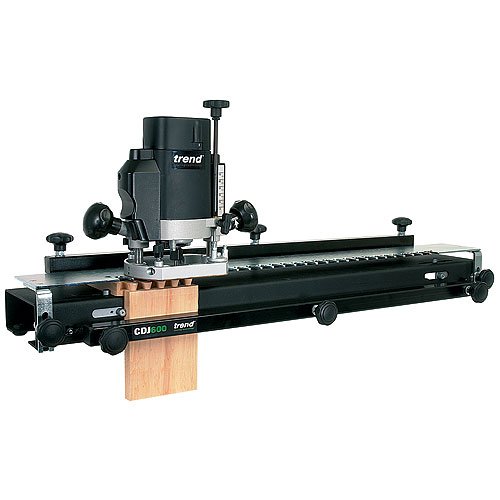

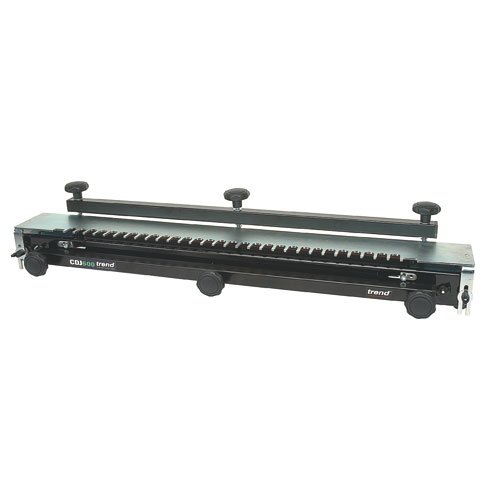

TREND CDJ600 CRAFT DOVETAIL JIG 600MM
Product Code: TRECDJ600
Brand: Trend
In Stock
£291.84 Inc. VAT
£243.20 Exc. VAT
COLLECTION
✓ DELIVERY
Trend Routing Workshop Jigs
Craft Dovetail Jig 600mm 1/4-inch Shank
Ref: CDJ600
Key Features
- An accurate and easy to use Dovetail Jig for a variety of elegant dovetail joints
- Cuts 12.7mm (1/2 inch) wide half blind dovetails or rebated dovetails in one operation
- Precision made laser cut zinc plated steel template with packing piece
- Adjustable offset stops
- A Unibase and fine height adjuster may be required for certain makes of router
- A range of accessory templates are available for box joint, dowel and through dovetails
Items included

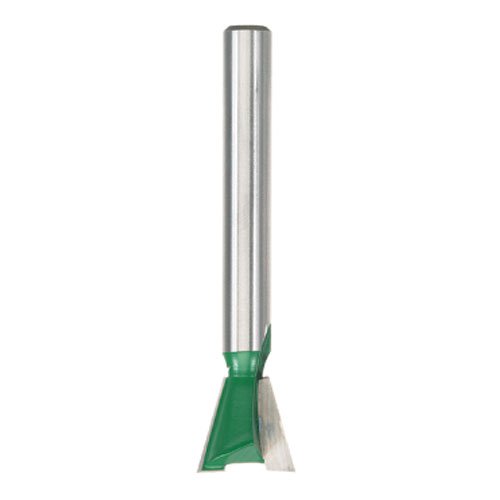

- 1 x 1/4" Shank TCT 104 degree dovetail cutter
- 1 x 15.8mm Guide bush
Specification
- Rating: Craftsman
- Dovetail size: 12.7 mm
- Cutter shank: 1/4"
- Workpiece width max: 600 mm
- Workpiece thickness min: 12 mm
- Workpiece thickness max: 25 mm
- Guide bush size: 15.8 mm
- Router base dia. max: 180 mm
Online Video
Replacement Parts
|
Item |
Description | Product Reference |
| Replacement dovetail cutter | Diameter 12.7 mm x 104 degrees | C041AX1/4TC |
| Replacement guide bush | Diameter 15.8 mm | GB158 |
Optional Accessories
Lapped Dovetail
|
Description |
Product Reference |
| Lapped dovetail templates: | |
| CDJ300/01 | |
| CDJ600/01 | |
| Cutter | C154X1/4TC |
| Unibase | UNIBASE |
Box Joint
|
Description |
Sizing | Product Reference |
| Box joint templates: | ||
| CDJ300/03 (8mm) | ||
| CDJ300/02 (12.7mm) | ||
| CDJ600/02 (12.7mm) | ||
| Cutter for 8mm template | Diameter 8mm x 25mm cut | C012AX1/4TC |
| Cutter for 12.7mm template | Diameter 12.5mm x 25mm cut | C021AX1/4TC |

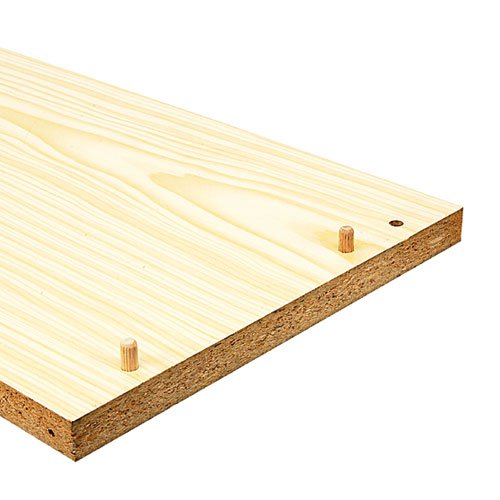

32mm Centre Dowelling
|
Description |
Sizing | Product Reference |
| Dowel templates: | ||
| CDJ300/04 | ||
| CDJ600/04 | ||
| Suggested router dowel drills | ||
| Diameter 3mm x 14mm cut | C180X1/4TC | |
| Diameter 5mm x 35mm cut | C174X1/4TC | |
| Diameter 6mm x 35mm cut | C175X1/4TC | |
| Diameter 8mm x 35mm cut | C176X1/4TC | |
| Diameter 10mm x 35mm cut | C177X1/4TC |
Through Dovetail
|
Description |
Additional information | Product Reference |
| Through dovetail template | Dual sided for Pin & Tail. 2 cutters are requred for each template (Straight and Dovetail) | CDJ300/05 (12.7mm) |
| Cutters for 12.7mm template: | ||
| 98 degree Dovetail cutter | C178X1/4TC | |
| Straight Cutter 8mm diameter | C012AX1/4TC | |
|
Cutters for 12.7mm template(discontinued): |
||
| 97 degree Dovetail cutter 8mm or 1/2" shank | C179 | |
| Straight Cutter 12.7mm dia. 8mm or 1/2" shank | C021 |
