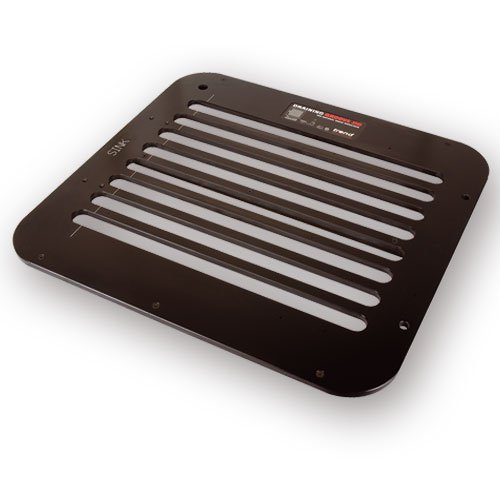

TREND DG/JIG DRAINING GROOVE JIG

Trend Routing On-Site Jigs
Draining Groove Jig
Ref: DG/JIG

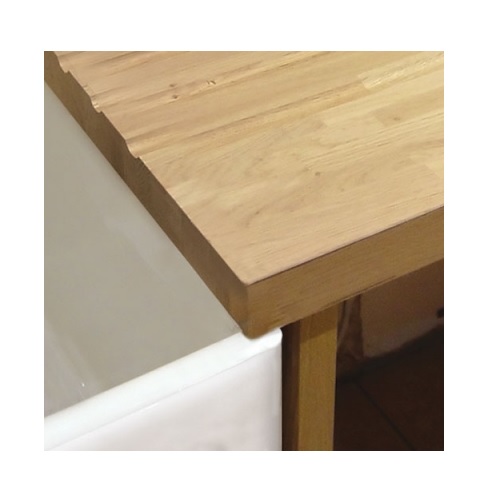

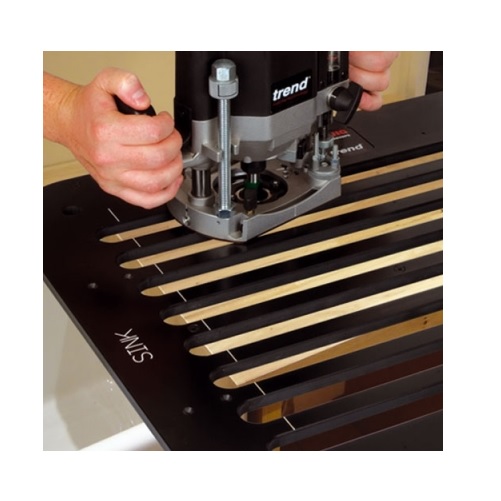

• For routing draining grooves in solid timber for Belfast type sinks
• Made from 12mm hardwearing CNC machined Compact Grade High Pressure Laminate
• Provides a 0.5 degree fall

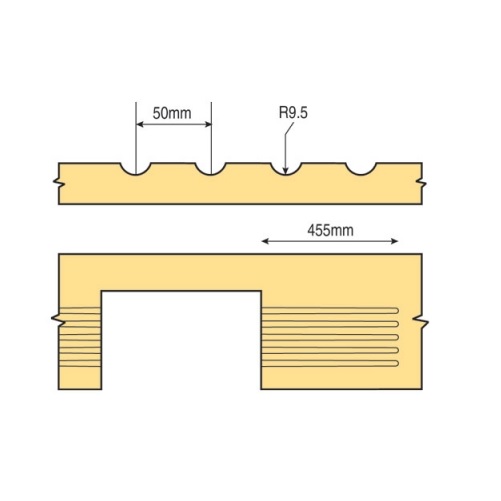

• Grooves at 50mm pitch and 455mm long
• Sight marks for lining up
• Three removable sloping runners for support
• Cutter diameter check hole
• Fixing holes for user made stops for repetition work

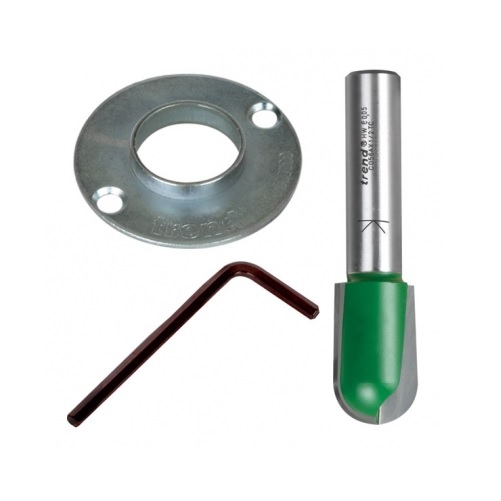

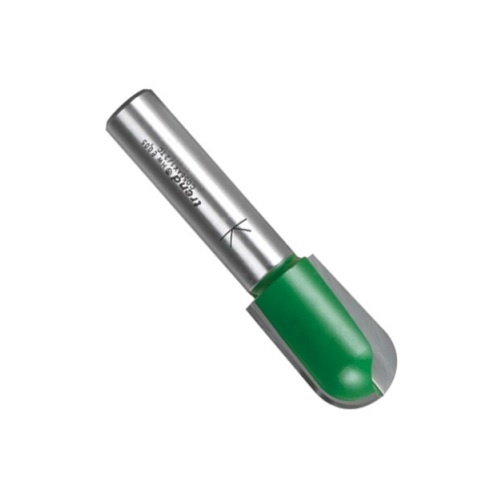

• 1 x Cove cutter

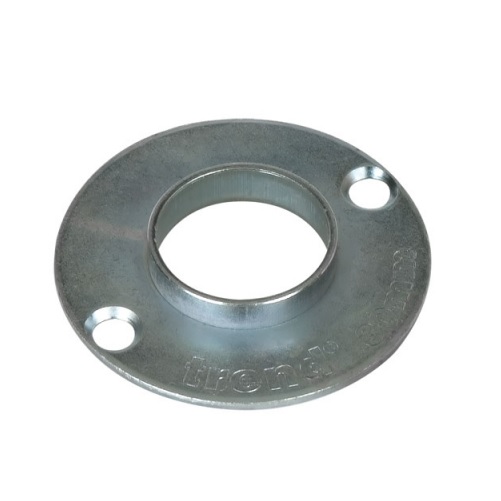

• 1 x Guide bush (diameter 30mm)

• Fall: 0.5 degree
• Groove pitch: 50.0 mm
• Groove length: 455 mm
• Slat width: 19.8 mm
• Length: 625 mm
• Height: 585 mm
• Width: 12 mm
• Weight: 4.3kg

Trend DG/JIG Jig Owners Manual
