TREND ECL/JIG EURO CYLINDER LOCK BARREL JIG

Trend Routing On-Site Jigs

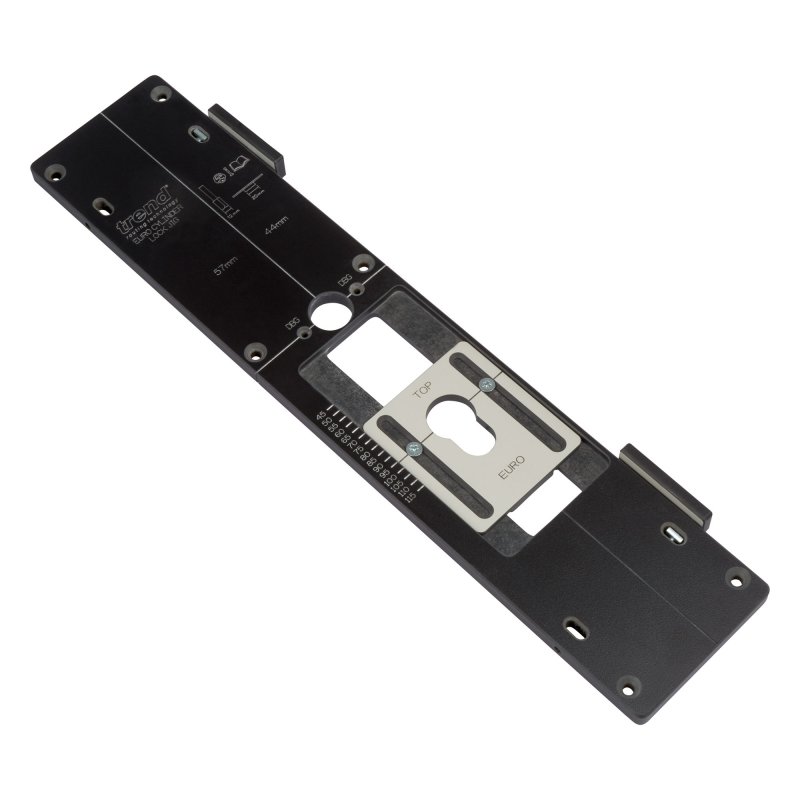

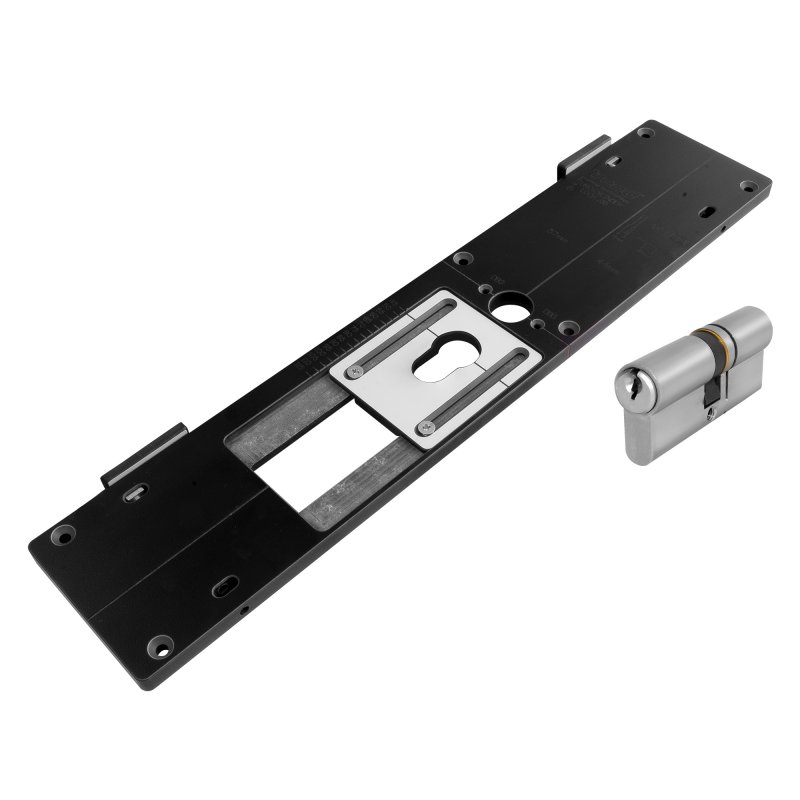

Trend Euro Cylinder Lock Jig - Fast adjustable jig to fit Euro Cylinder lock barrels and spindles
Ref: ECL/JIG

• Routing jig to cut hole for Euro Cylinder Lock barrels
• Routs out recess to suit Euro lock cylinder barrel size 33mm x 17mm/10mm
• Sliding plate allows handle pitch to lock body adjustment from 45mm to 115mm
• 44mm and 57mm backset
• Jig is designed to give a 1mm clearance around the barrel
• Allows 16mm diameter hole for handle spindle to be routed
• Holes for use with 2.75mm diameter Trend Snappy drill bit guide for marking handle lock plate at 40mm centres
• Made from 12mm thick High Pressure Laminate for longer life
• Long rotating edge stops for use with 44mm doors with leading edge
• Reversible design
• Includes spacer pack to allow for slightly deeper backset
• Accessory sliding plates available for small oval and large oval cylinder locks
• Requires plunge router, 12mm diameter cutter and 20mm diameter guide bush

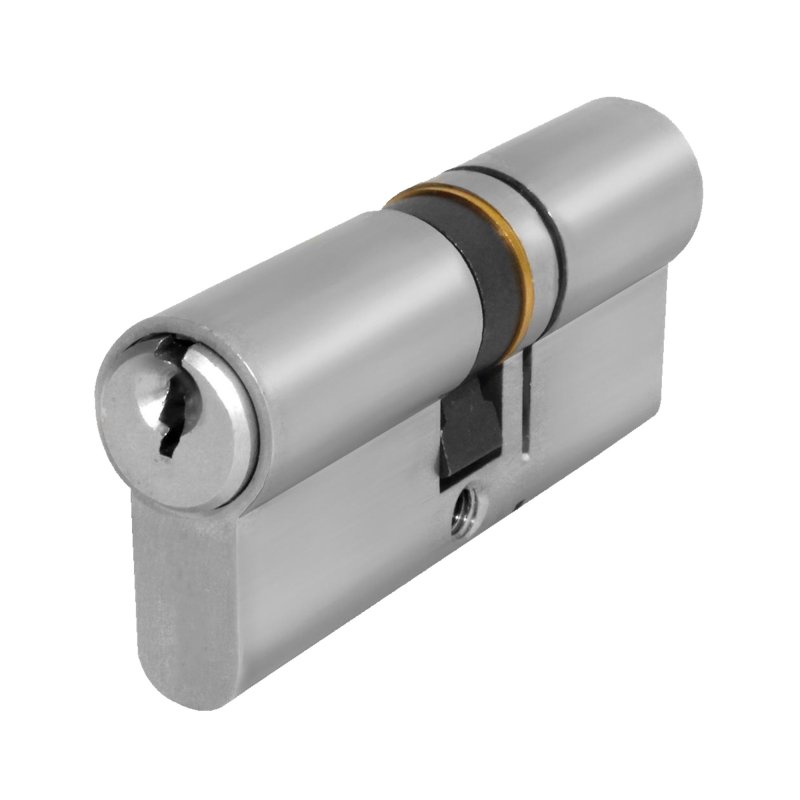

• Cylinder not included

• 1 x Template with sliding aperture
• 2 x Edge guides
• 1 x Spacer pack

• Barrel size: 33 mm x 17/10 mm
• Finished hole size: 35mm x 19/12 mm
• Backset: 44 mm & 57 mm
• Handle spindle hole: 16 mm
• Size: 490 mm x 101 mm

Trend ECL/JIG Manual
