TREND KWJ700 KITCHEN WORKTOP JIG 700MM

Trend Routing On-Site Jigs

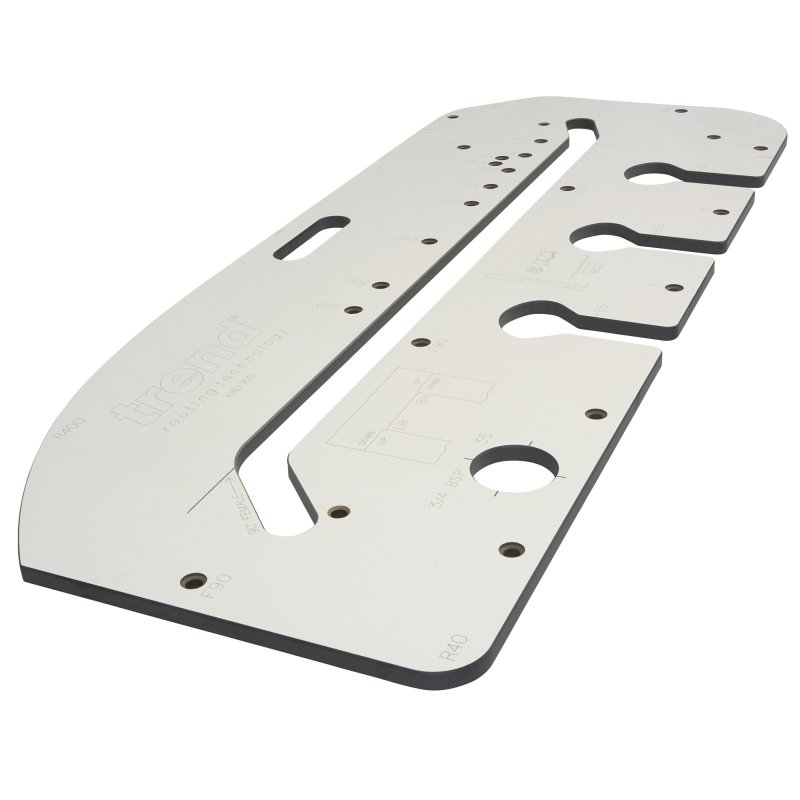

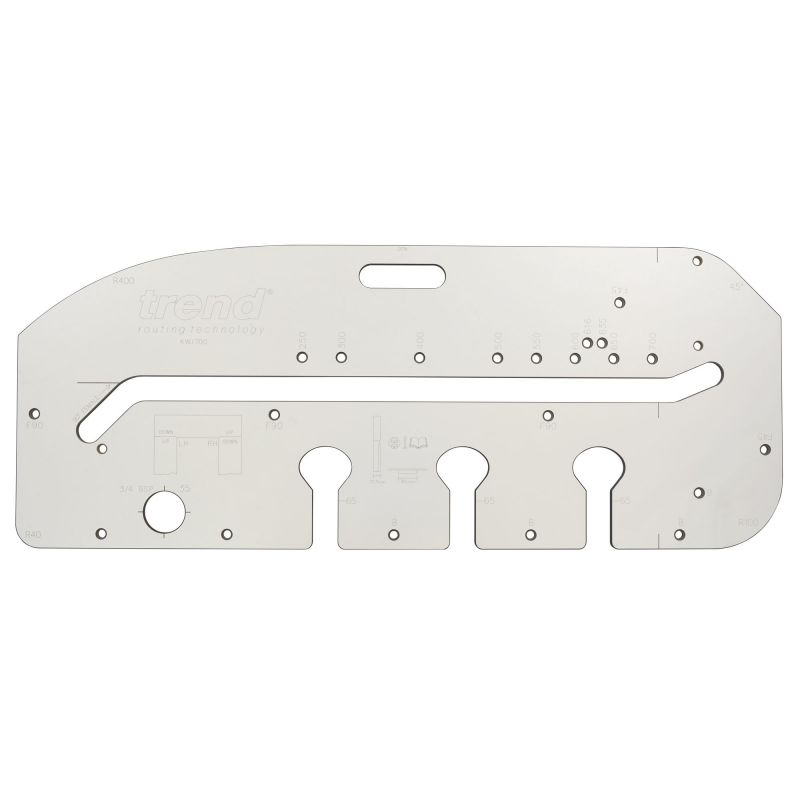

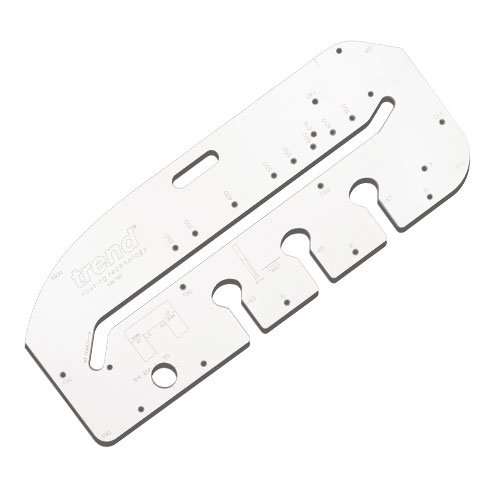

Kitchen Worktop Jig 700mm
Ref: KWJ700

Multi - function jig for accurately fitting kitchen worktops in 10 different widths from 250mm to 700mm wide

• Trade work top jig for up to 700mm worktops

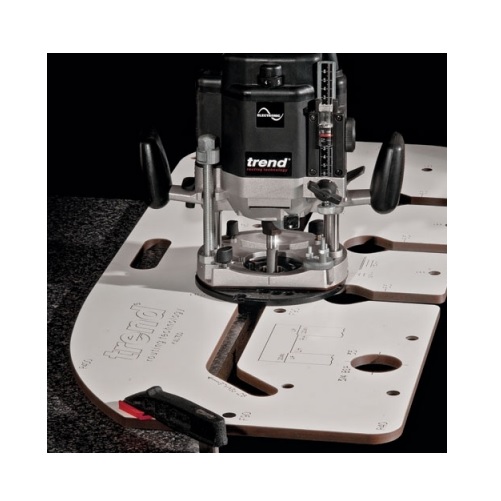

• Hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up

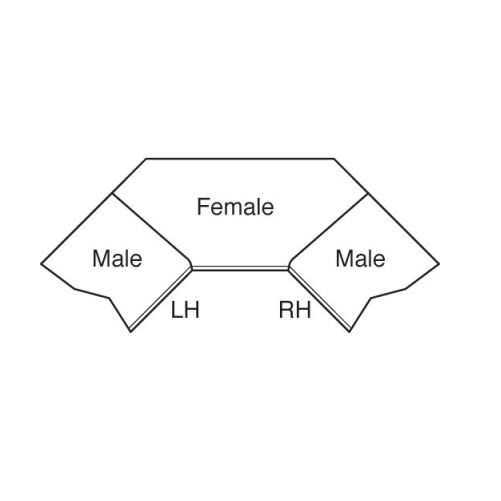

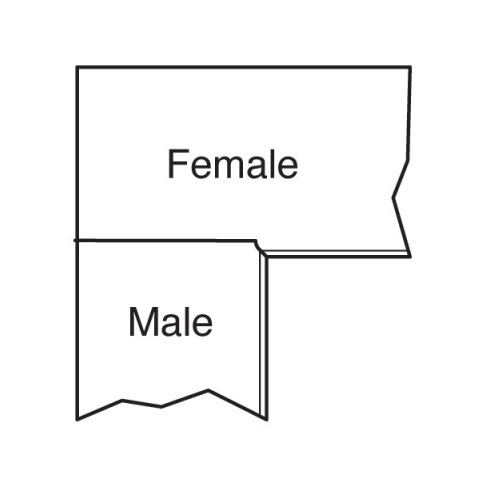

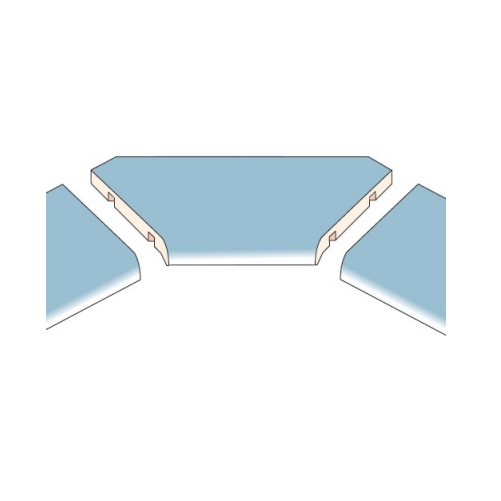

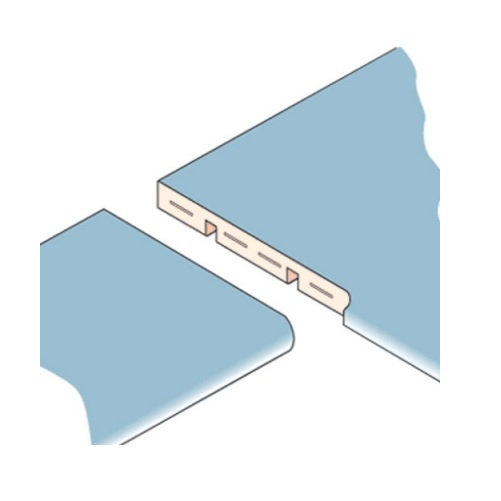

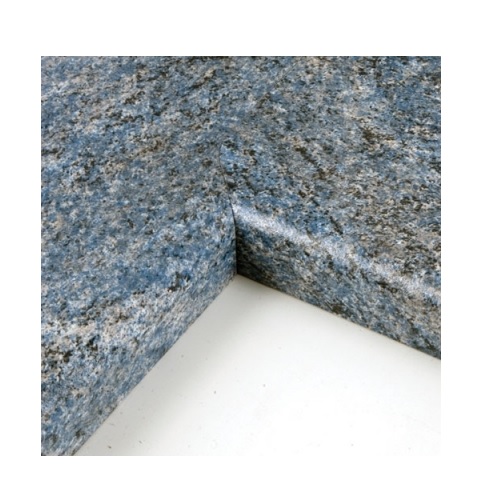

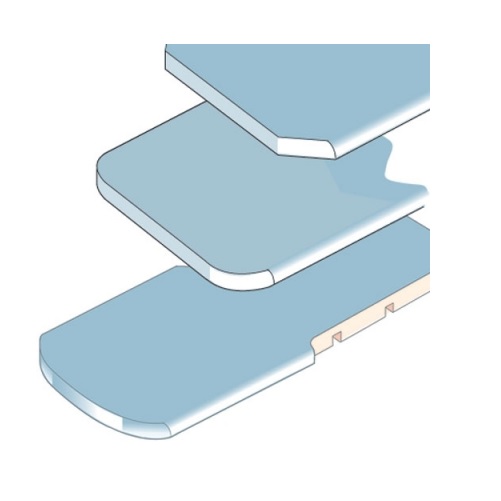

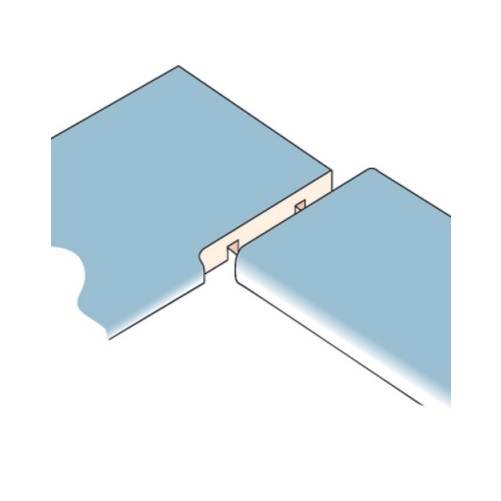

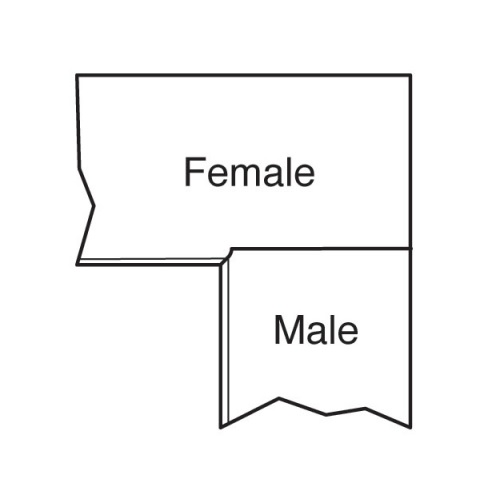

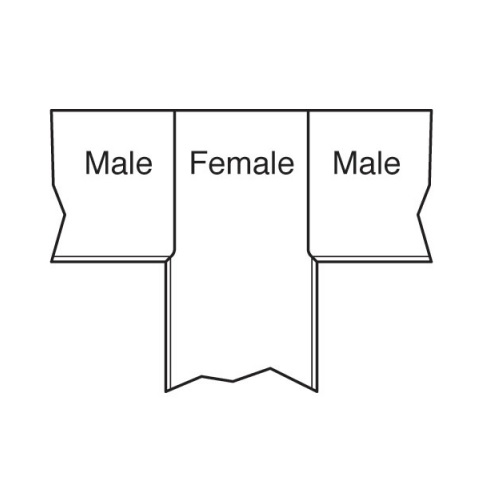

• Left hand and right hand corners, 400mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps
• Fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 635mm. 650mm and 700mm wide worktops
• Cuts up to 40mm thick worktops with or without anti-drip postformed edge

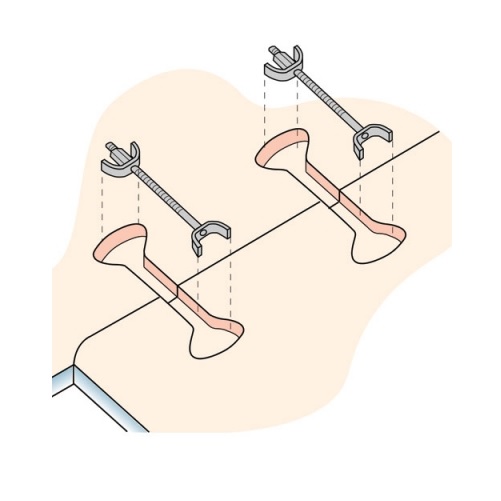

• Three open-ended bolt recesses (dog bone style) for 150mm bolts
• Engraved lines for short 65mm bolts and worktop cross-cut
• 10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up
• Engraved markings for identification of pin holes
• Pins made from ABS plastic for strength

Jig requires:

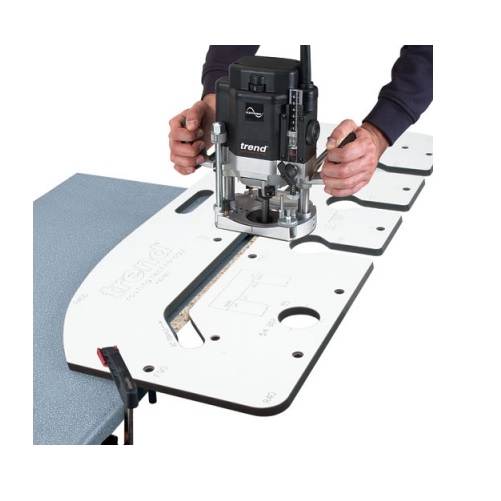

• A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts
• A template guide bush with 30mm outside diameter
• A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length
• Two clamps

• 6 x ABS Plastic Pins

• Length: 985 mm
• Width: 390 mm
• Thickness: 12 mm
• Weight: 5.4 kg
• End Cut: 45 degrees
• Corner Radius: 40 mm
• Corner Radius: 100 mm
• Corner Radius: 400 mm
• Corner Mitre Joint: 45 degrees
• Female cut material width loss (inset): 35 mm
• Bolt recesses: 3
• Bolt recess centres: 175 + 175 mm
• Bolt recess width:14 mm
• Guide bush: 30 mm
• Plunge router: 1/2-inch (min. 1300 watts)
• Cutter: 12.7 mm x 50 mm cut
• Clamps: Two

• Router cutters - 12.7mm (1/2") diameter straight 50mm cut length
• Professional Rota-tip -  Product Ref: RT/13X1/2TC
• Professional - Product Ref: 3/83DX1/2TC
• Trade Range - Product Ref: TR17DX1/2TC
• CraftPro - Product Ref: C153DX1/2TC
• Carry case (hard wearing) - Product Ref: CASE/1001
• F-clamp (two required) - Product Ref: FC/200
• Recommended 30mm guide bush A Unibase may be required - Product Ref: GB30

Replacement Parts:

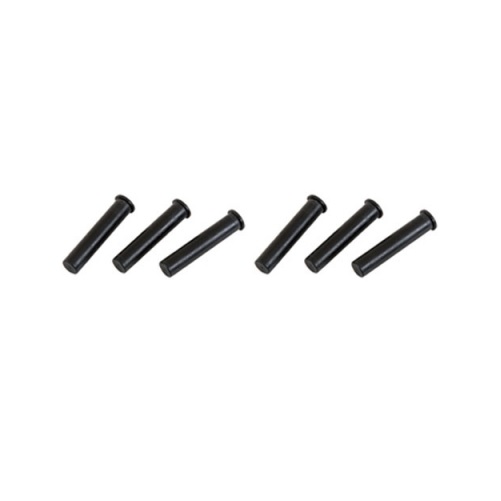

• Pins 10mm diameter (ABS plastic pack of 4) - Product Ref: KWJ/PIN/4
