TREND LOCK/JIG/A LOCK JIG LARGE

X
Product Code: TRELOCK/JIG/A
Brand: Trend
In Stock
£159.43 Inc. VAT
£132.86 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Check out our Fair Deal on Delivery Promise
Trend

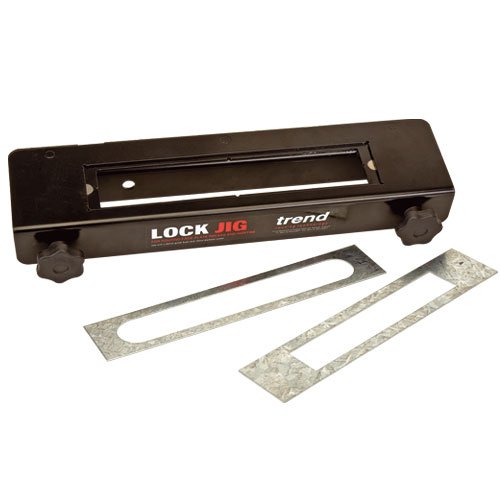

Trend Contractor Lock Jig Large
Ref: LOCK/JIG/A



Contractor jig with interchangeable templates for use with a plunge router to cut the mortise and faceplate for larger locks quickly and accurately.

Key Features

  • Suitable for DDA (Disabilty Discrimination Act) lock size.
  • 20mm x 235mm radius end face plate and 17mm x 170mm mortise.
  • Adaptor plate included to allow smaller templates (239mm x 60mm) to be fitted (as supplied with standard LOCK/JIG).
  • Suitable for doors 34mm to 58mm thick.
  • An auger bit and drill is required to complete deep mortises.
  • The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.

Specifications

Description

 Metric & Imperial Conversion
Door thickness min. 34 mm
Door thickness max. 58 mm
Includes templates for locks having the following:
Face-plate dimensions (D x OL)
METRIC: TEMPLATE:
20x235mm radius end 1
24x235mm radius end 2
Mortise dimensions (D x OL)
METRIC: TEMPLATE:
17x170mm A*

* Mortise is actually 180mm to give 5mm clearance each end.



Trend Large Lock Jig is supplied with:

  • 1 x Guide bush collar
  • 2 X Face plate template
  • 1 X Mortise template
  • 1 X Template adapter
  • 6 x Spacer fingers

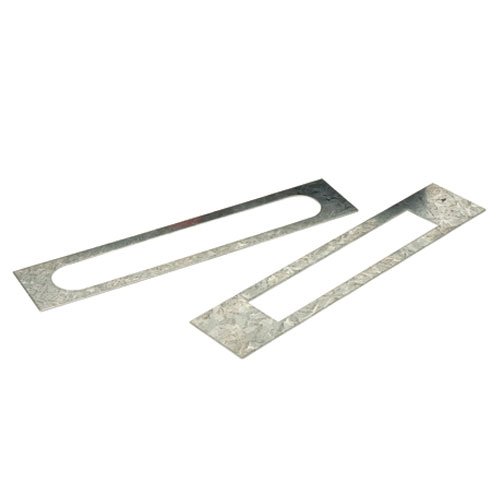

Templates Included:

Faceplate Dimensions:

 Tempate
20 x 235mm (radiused ends) 1
24 x 235mm (radiused ends) 2



Mortise Dimensions:

 Tempate
17 x 170mm A



Spare Templates:

Faceplate Dimensions:

 Tempate
Size 17mm x 170mm mortise WP-LOCK/A/T/A
Size 20mm x 235mm faceplate (RE) WP-LOCK/A/T/1
Size 24mm x 235mm faceplate (RE) WP-LOCK/A/T/2



Accessory Templates:

Description

Product Reference
Size 15mm x 40mm template WP-LOCK/A/T10
Size 15.5mm x 65mm template WP-LOCK/A/T11
Size 15.5mm x 115mm template WP-LOCK/A/T12
Size 15.5mm x 225mm template WP-LOCK/A/T13
Size 15.5mm x 235mm template WP-LOCK/A/T14
Size 17mm x 180mm template WP-LOCK/A/T15
Size 18mm x 85mm template WP-LOCK/A/T16
Size 18mm x 176mm template WP-LOCK/A/T17
Size 18mm x 180mm template WP-LOCK/A/T18
Size 19mm x 160mm template WP-LOCK/A/T22
Size 19mm x 100mm template WP-LOCK/A/T19
Size 19mm x 113mm template WP-LOCK/A/T20
Size 19mm x 155mm template WP-LOCK/A/T21
Size 19mm x 235mm template WP-LOCK/A/T23
Size 20mm x 153mm template WP-LOCK/A/T24
Size 20mm x 160mm template WP-LOCK/A/T25
Size 20mm x 168mm template WP-LOCK/A/T26
Size 20mm x 234mm template (RE) WP-LOCK/A/T27
Size 20mm x 235mm template WP-LOCK/A/T28
Size 20mm x 240mm template (RE) WP-LOCK/A/T29
Size 22mm x 125mm template WP-LOCK/A/T33
Size 22mm x 165mm template WP-LOCK/A/T30
Size 22mm x 224mm template WP-LOCK/A/T31
Size 22mm x 225mm template (RE) WP-LOCK/A/T34
Size 22mm x 225.5mm template WP-LOCK/A/T32
Size 22.4mm x 235mm template WP-LOCK/A/T35
Size 22.5mm x 77mm template WP-LOCK/A/T36
Size 24mm x 235mm template WP-LOCK/A/T44
Size 25.4mm x 235mm template WP-LOCK/A/T49

(RE) = radiused ends
