TREND MT/JIG Mortise and Tenon Jig (Imperial Size)

X
Product Code: TREMT/JIG
Brand: Trend
In Stock
£249.12 Inc. VAT
£207.60 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Qty
Trend











Trend Routing Workshop Jigs

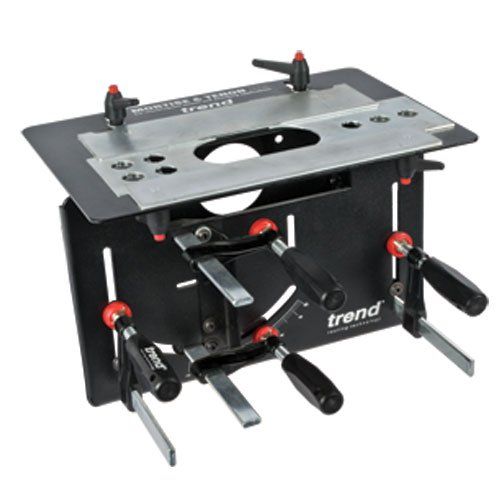

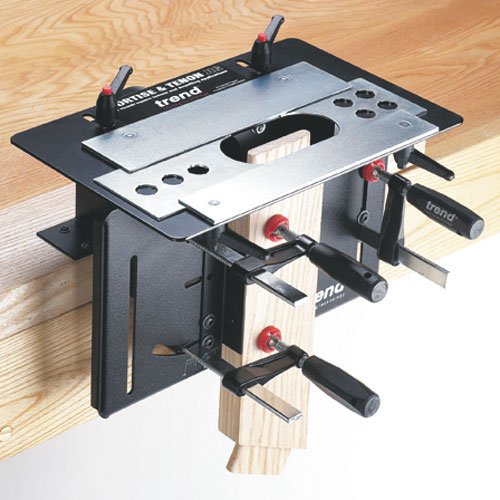

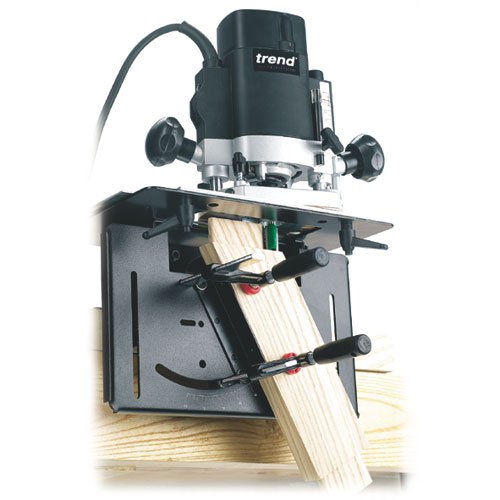

Mortise and Tenon Jig (Imperial Size)
Ref: MT/JIG



Key Features

  • Enables mortise & tenons and dowel joints to be cut with a router.
  • Ideal for cabinet, chair and table.
  • CNC precision manufactured plates and body

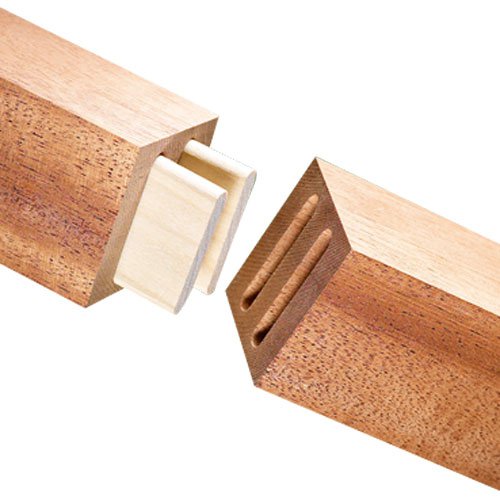

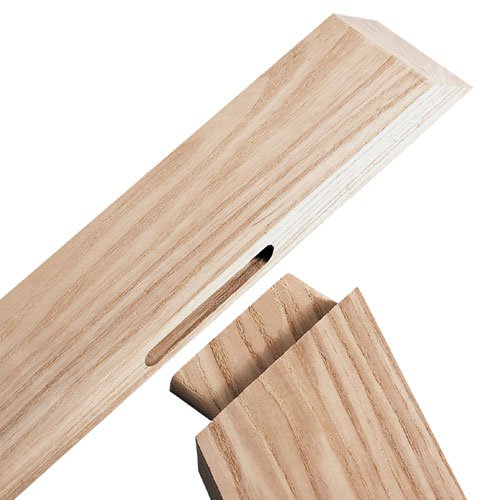

  • One set-up for both mortise and tenon giving perfectly fitting joints

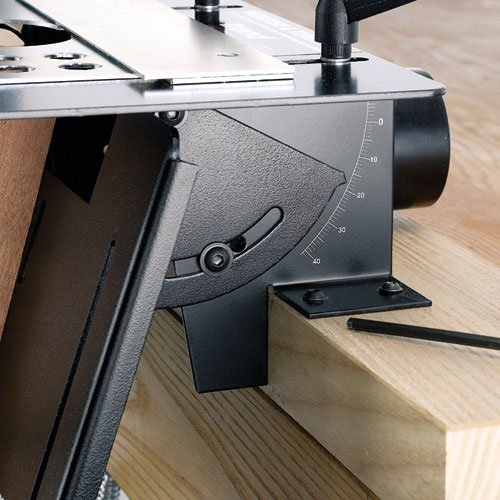

  • Fully adjustable for compound angle joints up to 45 degree
  • Reversible templates to produce round and square end tenons

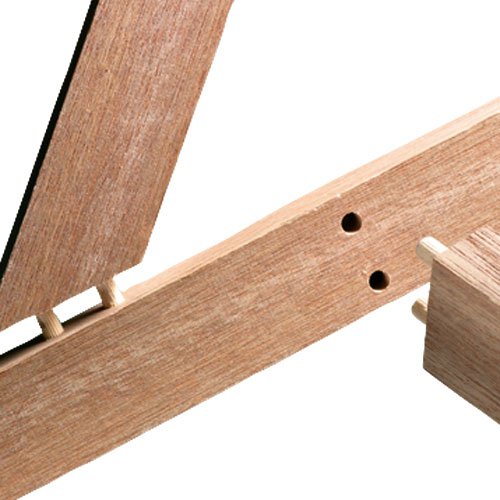

  • Templates can be used for accurate dowelling applications

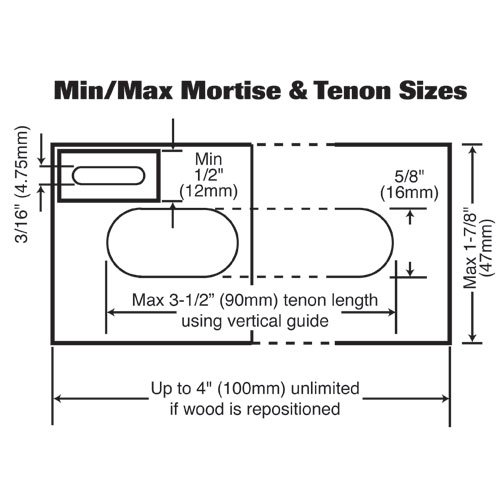

  • Cuts mortise & tenon sizes of 1/4 inch (6.35mm) to 5/8 inch (15.9mm)
  • Guide bushes are included but cutters are required
  • A Unibase may be required for certain makes & models of router
  • All tenons are cut with a 5/8 inch diameter straight cutter (Ref. C026)
  • The width of the tenon is adjusted by using different guide bush diameters
  • International PCT Appl No. PCT/GB02/00253
  • Jig requires
  • A portable plunge router with 6.35 mm (1/4 inch) shank capacity



Items included

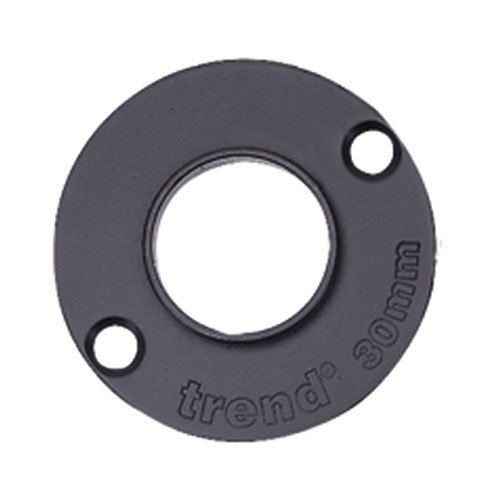

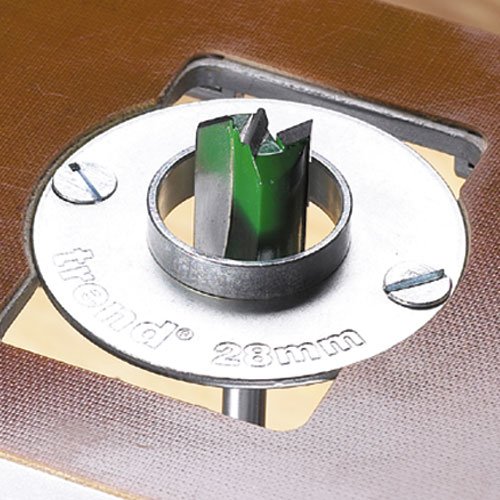

  • 5 x Plastic guide bushes 15.9mm, 22.2mm, 28.6mm, 30.2mm & 31.8mm
  • 1 x Metal guide bush 25.4mm

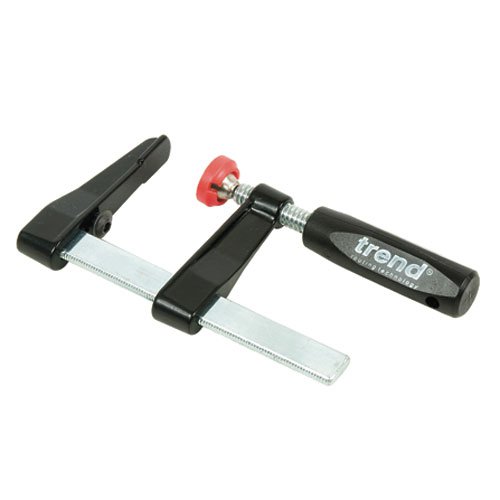

  • 4 x Clamps

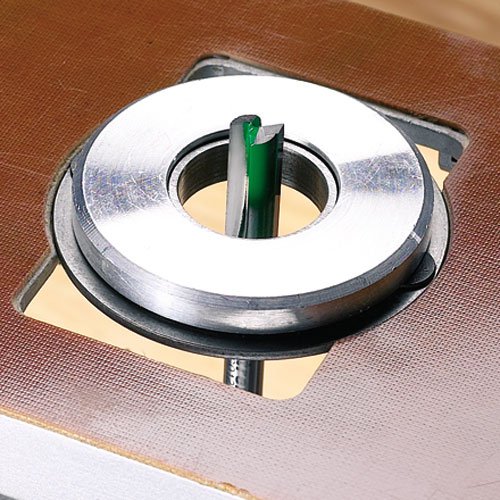

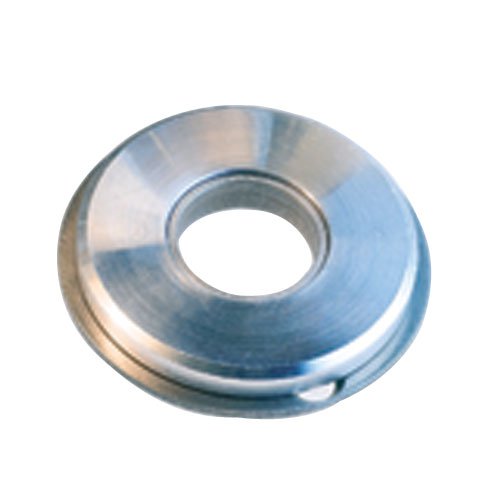

  • 1 x Guide bush collar

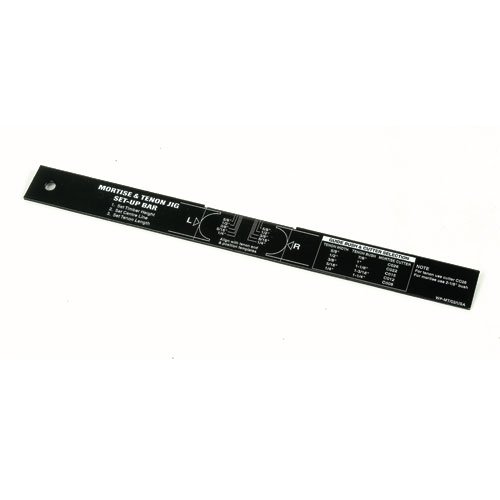

  • 1 x Set-up Bar imperial scale



Specification

  • Tread Thickness: 22-32 mm
  • Slider Diameter: 30 mm
  • Nosing Adjustment: 16-19 mm
  • Length: 585 mm
  • Height: 485 mm
  • Width: 9.5 mm
  • Weight: 6.17kg




Optional Accessories

1. Router Cutters

Width

Cutter Reference
1/4" shank SET/MT1X1/4TC
8mm shank SET/MT1X8MMTC
1/2" shank SET/MT1X1/2TC
8mm shanks for metric jigs SET/MT2X8MMTC



Tenon Width

Cutter Reference Guide Bush Diameter
1/4" (6.3mm) C008 1-1/4" (31.8mm)
5/16" (7.9mm) C012 1-3/16" (30.2mm)
3/8" (9.5mm) C015 1-1/8" (28.6mm)
1/2" (12.7mm) C022 1" (25.4mm)
5/8" (15.9mm) C026 7/8" (22.2mm)
3/16" (6.3mm)* C003 1-5/16" (33.3mm)
7/16" (7.9mm)* C018 1-1/16" (27mm)
9/16" (14.3mm)* CO24 15/16" (23.8mm)

*Other sizes possible, guide bushes shown below not included with jig.

2. Steel Guide Bushes (optional)

GB158, GB222, GB238, GB27, GB286, GB302, GB318 & GB333 (ea)

3. Universal sub-base - Certain makes and models of router will require a Unibase to accept the guide bushes. (UNIBASE)

4. Dust kit - Magnetic fitting dust kit with 57mm diameter (2-1/4") dust spout aperture and 35mm ID adaptor. Accepts 39mm OD nose. (MT/DUSTKIT)

5. Mortise and Tenon Jig DVD - A step by step process to create an elegant chair (DVD length 22 mins). Also available for viewing online at www.trend-uk.com/video (DVD/TV/10)





Trend MT/JIG Manual

Product Videos
