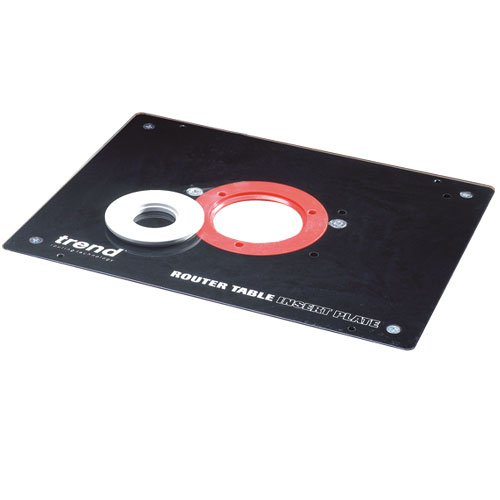

TREND RTI/PLATE ROUTER TABLE INSERT PLATE

Router Table Accessories - Router table insert plate
Ref: RTI/PLATE

• A large rigid router table insert plate for incorporation into user-made router tables.
• A large rigid router table insert plate for incorporation into user-made router tables.
• Thermoset phenolic plastic router plate.
• Two concentric snap-in rings.
• Three hole sizes of 98mm, 68mm & 32mm dia.
• Concentric rings and radial lines on underside for easy centring of router.
• Moulded with slight crown (0.8mm) for distortion free cuts.
• Corner clips to clamp to table underside.
• Can be mounted to 19mm tops with edge rebate of 6.35mm deep x 12.7mm wide.
• Plate wil require drilling by user to suit make and model of router to be fitted.

• Plate size: 306 mm x 229 mm x 9.5 mm.
• Max router weight: 8 kg
• Max router base dia: 200 mm
