TREND STAIR/B STAIR JIG B COMPLETE OPEN RISER

X
Product Code: TRESTAIR/B
Brand: Trend
Low Stock - Please Call For Availability
£264.84 Inc. VAT
£220.70 Exc. VAT
✗ COLLECTION
✗ DELIVERY
Please call to check stock availability for larger quantities
Qty
Trend











Trend Routing On-Site Jigs

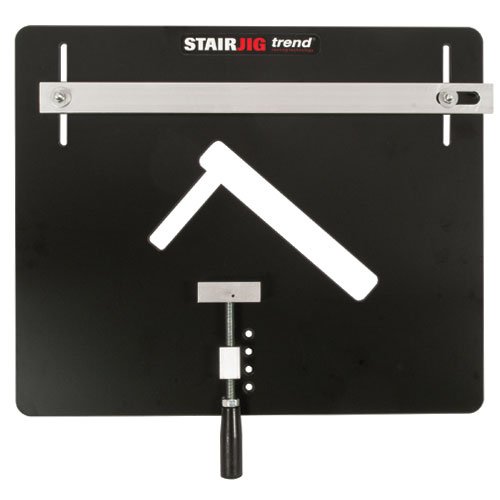

Stair Jig B Complete Open Riser
Ref: STAIR/B



Key Features

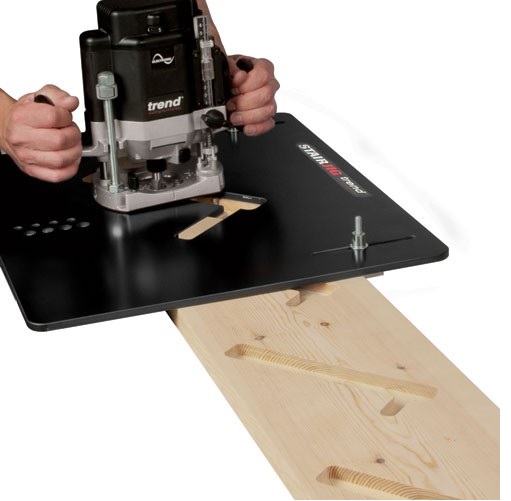

  • This template jig is a well proven means of routing out stair housings quickly and accurately
  • Constructed from hard wearing Compact Grade High Pressure Laminate and includes a reversible fence for exact matching of stair strings
  • Built-in heavy duty front clamp for quick clamping for each trench
  • Adjustable to suit private and common stair angle pitch. The jig incorporates a stub riser to conform with building regulations
  • All heavy duty routers over 1600 watts can be used
  • Sub-base is pre-drilled to suit Trend/DeWalt/Elu 1/2 inch routers, for other makes the sub-base will have to be redrilled
  • Please state the make and model in the special requirements/comments box on the delivery details page when ordering
  • Router not included



Items included

  • 1 x Adjustable reversible clamp bar
  • 1 x Reversible clamp bar

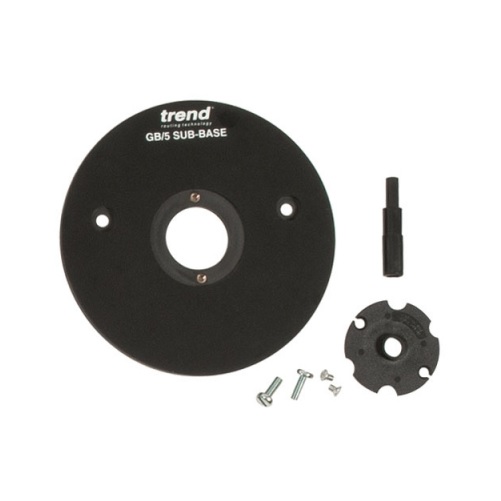

  • 1 x Sub-base

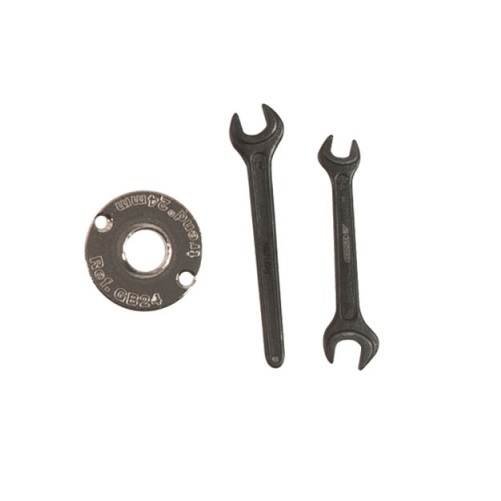

  • 1 x 24mm Guide bush
  • 1 x Line-up pin
  • 2 x Spanners
  • 1 x Line Up guide bush



Specification

  • Thread thickness: 32 mm
  • Riser thickness: 16 mm
  • Guide bush diameter: 24 mm
  • Length: 585 mm
  • Height: 485 mm
  • Width: 9.5 mm
  • Weig


Optional Accessories

Description

Product Reference Tread Thicknesss Diameter
Recommended Professional straight cutter 4/21X1/2TC 32mm (1-1/4") 15.9mm
Recommended CraftPro straight cutter C025CX1/2TC 32mm (1-1/4") 15.9mm



Trend STAIR/A / STAIR/B Manual
