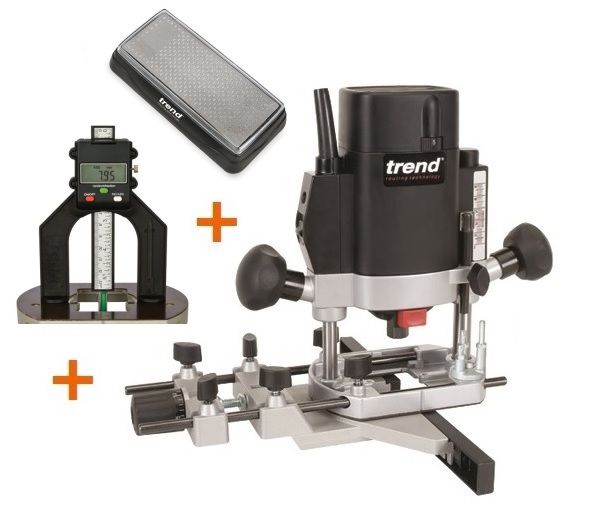

TREND T5EB 1/4" Plunge Router 240V +D60 Depth Gauge +Diamond Stone +3yr Warranty

Trend Variable Speed 1/4" Plunge Router T5EB 240v with Trend Digital Depth Gauge GAUGE/D60 and Trend Craft Pro Diamond Bench Stone CR/DWS/B6/FC - 3 Year Warranty - T5EB/KIT/D

T5 Mark 1

Electronic full wave variable control of spindle speed under load for a fine finish on all types of material

• Soft-start feature eliminates sudden movement of machine on start up.
• Spindle lock & hex collet nut allows easy cutter changes.
• Precision machined one piece multi-slit collet with combined nut.
• Compact design & low weight make it easy to use especially for intricate work.
• Adjustable twin rod side-fence for guiding along a straight edge.
• New features include: increased power, soft grip handles, low profile dust spout
  and ergonomic spindle lock.
• Three year extended warranty with online registration (UK and Eire only)

• Rating Professional / Trade
• Plunge stroke 0-50 mm
• Power input 1000 watt
• Power ampage 4.6 amp
• Standard collet dia. 1/4"
• No load speeds 9-27000 rpm
• Dust spout size ID 35 mm
• Guide bush dia. supplied 20 mm
• Rod diameter 80 mm
• Rod length 300mm
• Rod centres 84 mm
• Cutter dia. max. 40 mm
• Other collet dia. none only 1/4"
• Weight 3.3kg
• Voltage 240 volt
• Sound pressure Lpa 81.0 dB(A)1
• Acoustic pressure Lwa 94.01 dB(A)2
• Hand arm vibration <2.5 m/s2

• 1 x 1/4" Collet
• 1 X 20mm Guide Bush
• 1 X 35mm Clip-in Dust Spout
• 1 X Side-fence with Micro Adjuster
• 1 X Beam Trammel Attachment

Trend T5 Mk1 / Mk2 Owners Manual

Trend Digital Router Depth Gauge Metric / Imperial GAUGE/D60

• Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.
• For hand routers, router tables and saw benches.
• LCD readout for mm, imperial and fractions with auto shut off 5 mins.
• Removable pin to allow hole depths to be measured.
• Pin can be parked on arm. Hole depth 50.8mm (2 inch).
• Self standing with magnetic feet and flat back.
• Injection plastic moulding with plastic rule.
• 60mm wide aperture.
• Read-out has relative co-ordinate and absolute function.
• Spare battery available ref. BAT/CR2032/3V.

• Measuring range  80 mm (3-1/8")
• Opening width  60 mm (2-3/8")
• Resolution  0.05 mm (0.002")
• Accuracy  +/- 0.1 mm (0.004")
• Repeatability  +/- 0.1 mm (0.004")
• Max measuring speed  1.5 m/s (60 in/s)
• Weight  92g
• ABS mode (Absolute)  Measuring single amounts from Zero
• INC mode (Relative  Measuring from last point

Trend Craft Pro DiamondBench Stone - CR/DWS/B6/FC

• A double sided diamond bench stone 6 inches x 2 3/8 inches.
• Monocrystalline diamonds for fast, clean, stock removal.
• Excellent sharpening performance.
• Double sided for coarse sharpening and fine honing.
• Coarse 360 grit (nom. 40 microns) and fine 600 grit (nom. 25 microns).
• Coarse ideal for carpentry as it rapidly fixes or restores a damaged edge or blunt tools, including chisels and plane irons.
• Fine ideal for cabineting making for a fine finish, refines the cutting edges of chisels, small knives, etc Achieves a razor edge in seconds.
• With plastic base and non slip feet with and protective lid.
• Coarse side is solid diamond.
• Oval holes design on fine side to collect and hold metal residue. Fine side also has clear solid area for small tools. Ideal for site and workshop. Use with plane irons and chisels. Suitable for all handtools.
• Recommended use with Trend lapping fluid to prevent clogging or rusting and assist in keeping tools clean.

• Dimensions: 152 x 61 x 6 mm
• Grade: Fine & Course
• Grit: 600 & 360 (nom. 25 & 40 micron)
