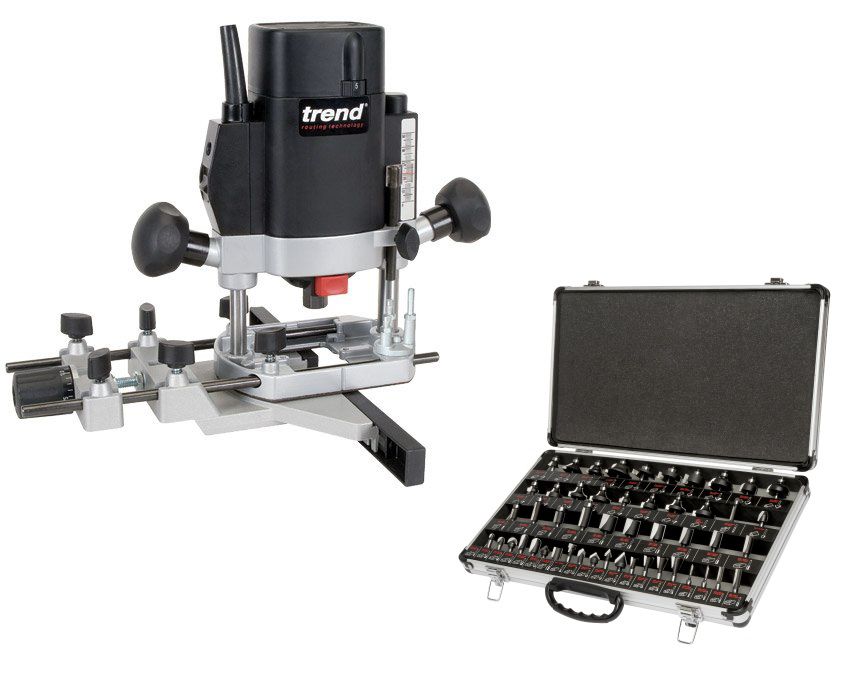

TREND T5EB 1/4" Plunge Router with 50 Piece Cutter Set

TREND T5EB 1/4" Plunge Router with 50 Piece Cutter Set

T5 Mark 1

Trend T5EB Router 240v

Electronic full wave variable control of spindle speed under load for a fine finish on all types of material

• Soft-start feature eliminates sudden movement of machine on start up.
• Spindle lock & hex collet nut allows easy cutter changes.
• Precision machined one piece multi-slit collet with combined nut.
• Compact design & low weight make it easy to use especially for intricate work.
• Adjustable twin rod side-fence for guiding along a straight edge.
• New features include: increased power, soft grip handles, low profile dust spout
  and ergonomic spindle lock.
• Three year extended warranty with online registration (UK and Eire only)

• Rating: Professional / Trade
• Plunge stroke: 0-50 mm
• Power input: 1000 watt
• Power ampage: 4.6 amp
• Standard collet dia: 1/4"
• No load speeds: 9-27000 rpm
• Dust spout size ID: 35 mm
• Guide bush dia. supplied: 20 mm
• Rod diameter: 80 mm
• Rod length: 300mm
• Rod centres: 84 mm
• Cutter dia. max: 40 mm
• Other collet dia: none only 1/4"
• Weight: 3.3kg
• Voltage: 240 volt
• Sound pressure Lpa: 81.0 dB(A)1
• Acoustic pressure Lwa: 94.01 dB(A)2
• Hand arm vibration: <2.5 m/s2

• 1 x 1/4" Collet
• 1 X 20mm Guide Bush
• 1 X 35mm Clip-in Dust Spout
• 1 X Side-fence with Micro Adjuster
• 1 X Beam Trammel Attachment

Trend T5 Mk1 / Mk2 Owners Manual

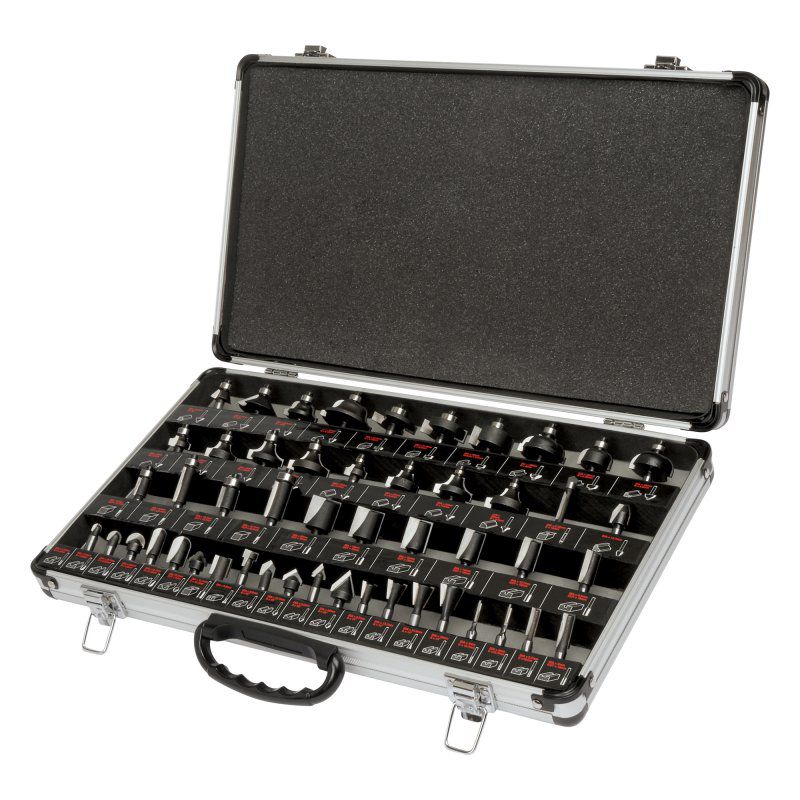

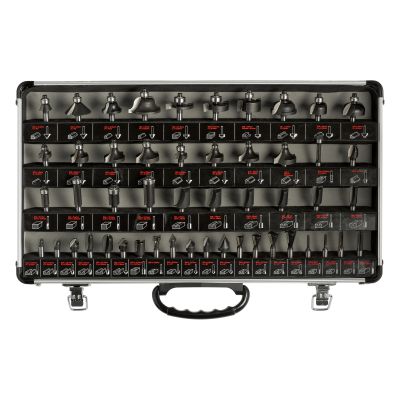

Trend 50 Piece Starter Router Cutter Set - SET/SS50X1/4TC - 1/4" shank


This fifty-piece cutter set contains a range of popular Tungsten Carbide Tipped cutters for a variety of applications.


• All cutters are 1/4-inch shank diameter.
• For softwood, hardwood, chipboard, plywood and MDF.
• Excellent value for money.
• Set includes twenty two guided, ten straights and eighteeen unguided router cutters.
• Supplied in aluminium carry case.

• 1 x Single flute straight 3mm x 12.7mm cut
• 1 x Single flute straight 4mm x 12.7mm cut
• 1 x Two flute straight 6mm diameter x 16mm cut
• 1 x Two flute straight 8mm diameter x 19mm cut
• 1 x Two flute straight 9.5mm diameter x 19mm cut
• 1 x Two flute straight 12.7mm diameter x 19mm cut
• 1 x Two flute straight 14.2mm diameter x 19mm cut
• 1 x Two flute straight 15.9mm diameter x 19mm cut
• 1 x Two flute straight 19mm diameter x 19mm cut
• 1 x Two flute straight 20mm diameter x 19mm cut
• 4 x Guided flush trim 9.5mm x 12.7mm cut, 9.5mm x 25.4mm cut, 12.7mm x 12.7mm cut, 12.7mm x 25.4mm cut
• 1 x Combination bevel 12.7mm diameter 60 degree
• 1 x Mortiser 12.7mm x 12.7mm cut
• 1 x Classic panel 12.7mm x 9mm cut
• 1 x Keyhole 9.5mm diameter
• 3 x Core box R3.2mm, R4.8mm, R6.35mm
• 2 x Long series core box R4.8mm & R6.35mm
• 2 x 60 degree V groove 9.5mm diameter, 16mm diameter
• 2 x 90 degree V groove 9.5mm diameter, 12.7mm diameter
• 4 x 14 degree Dovetail 9.5mm diameter, 12.7mm diameter, 14.3mm diameter, 16mm diameter
• 1 x Pierce and trim 6.35mm x 18mm cut
• 2 Guided cove R6.35mm & R9.5mm
• 4 x Guided round over R3.2mm, R6.3mm, R7.9m & R9.5mm
• 4 x Guided ovolo R3.2mm, R6.35mm, R7.9mm & R9.5mm
• 2 x Guided roman ogee R4mm & R6.35mm
• 2 x Guided chamfer 25 degree & 45 degree
• 2 x Guided slotter 6.35mm kerf & 9.5mm kerf
• 1 x Guided rebater 28mm diameter, 12.7mm cut, 9.5mm rebate
• 1 x Guided classic decor R9mm
