TREND TEMP/SS/A TEMPLATE SHELF SUPPORT 32MM CENTRE

Trend Routing Workshop Jigs
Template Shelf Support 32mm Centre
Ref: TEMP/SS/A

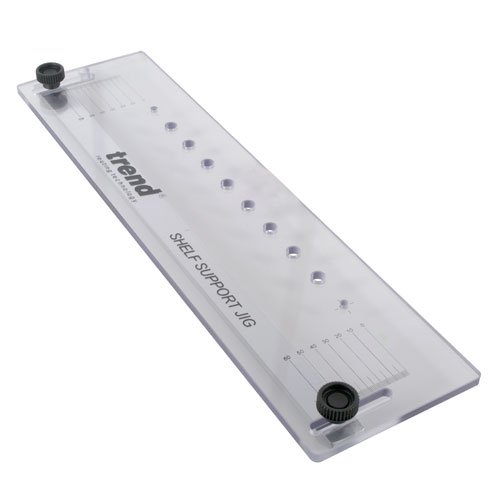

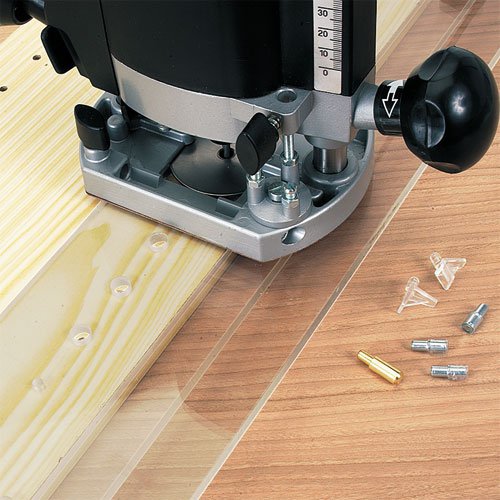

• A template to allow routing or drilling of 32mm centre holes for 5mm diameter shelf supports.

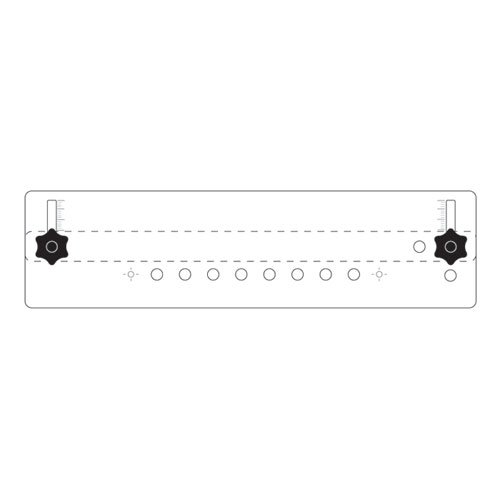

• The template is a clear plastic with an adjustable clamping bar with two locking knobs.
• Supplied with twelve 5mm metal shelf supports, one alloy knurled index pin and a 9.5mm diameter guide bush.
• Allows holes to be positioned from 10mm to 64mm from edge of board.
• This template can be used to add existing holes to a unit, or for user made shelves, the index lines to allow for easy setting up.
• Template can also be used with a power drill and an accessory quick release 5mm shelf support drill bit guide Ref. SNAP/SS/5MM or TEMP/SSD/5MM . This bit has a lip and spur drill fitted for drilling blind holes.
• Requires two clamps and 5mm TCT router dowel drill Ref. 61/05 or C174.

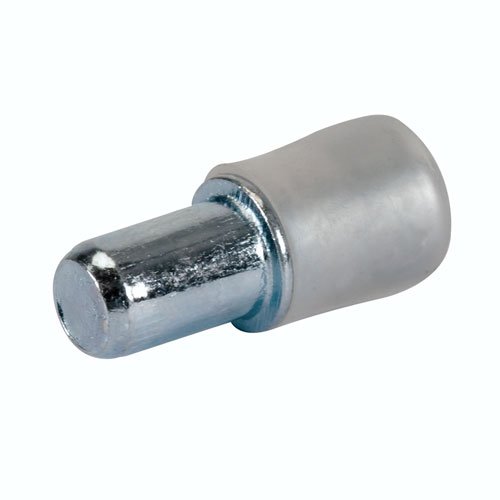

• 12 x Plain metel shelf supports

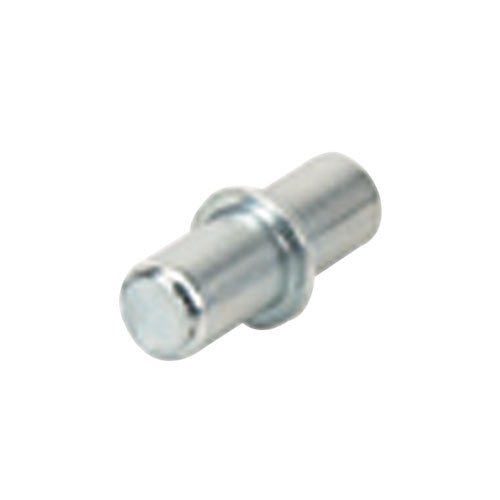

• 1 x Knurled repeat index pin
• 1 x 9.5mm guide bush

Trend TEMP/SS/A Manual
