TREND VARIJIG Varijig system adjustable frame

Trend Routing Workshop Jigs

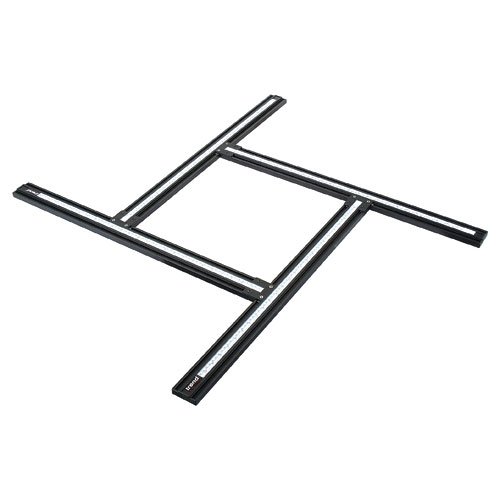

Varijig System Adjustable Frame
Ref: VARIJIG

• Adjustable frame and guide for use with a router

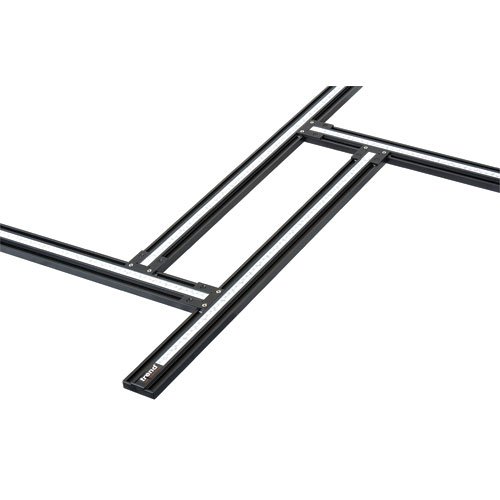

• Adjustable frame for rectangles and squares
• Allows a router to cut recesses, slots, face panel moulds etc. Can also be used to create panel doors for kitchens etc
• Four lengths of 700mm extrusion with dual metric/imperial measuring scales
• Working area 600mm x 600mm
• Cross cut accuracy to 0.1mm, a square is required to square frame before use

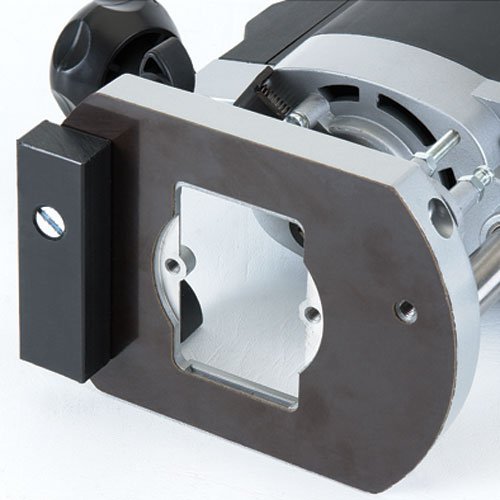

• Includes router anti-tilt block
• Use with a guide bush with minimum 8mm spigot length, or use Unibase as guide
• Secure with standard clamps or use optional clamp kit

• 4 x Alloy Extrusion with Scales

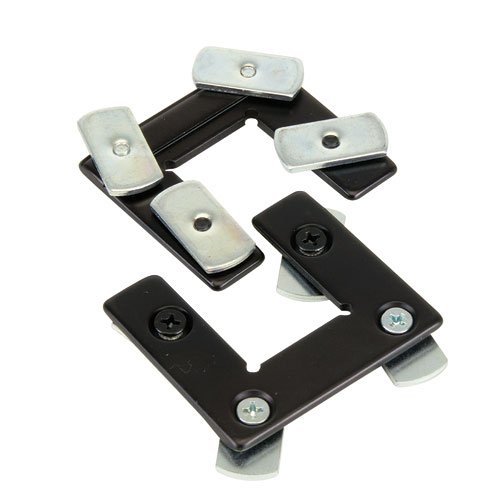

• 4 x Corner brackets

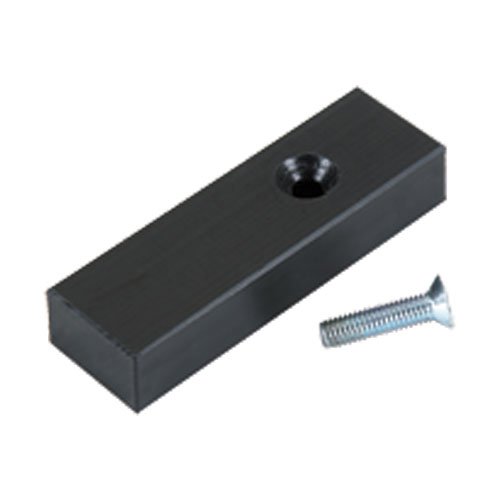

• 1 x Anti-tilt shoe
• 1 x Anti-tilt Shoe fixing screw

• Extrusion width: 54mm
• Extrusion height: 15.8mm

Optional Accessories:

• Pair sliding friction clamps with 32mm clamping thickness: VJS/CK
• Pair sliding friction clamps with 51mm clamping thickness: VJS/CK/L
• Recommended guide bushes
  24mm with extra long 10mm spigot: GB24/A
  30mm with extra long 10mm spigot: GB30/A
  40mm with extra long 14mm spigot: GB40/B
• Unibase: UNIBASE
