TREND VJS/CG/36 VARIJIG CLAMP GUIDE 36 INCH

Trend Clamping Systems
Varijig clamp guide 36 inch
Ref: VJS/CG/36

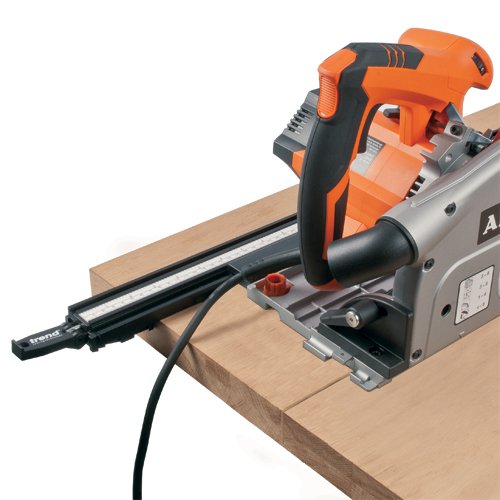

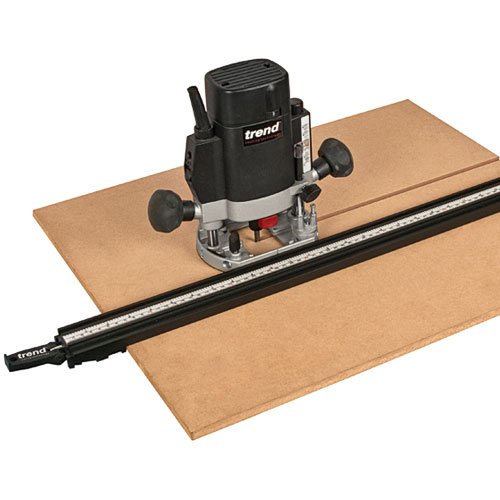

• For accurate guiding of router, saws and jigsaws.

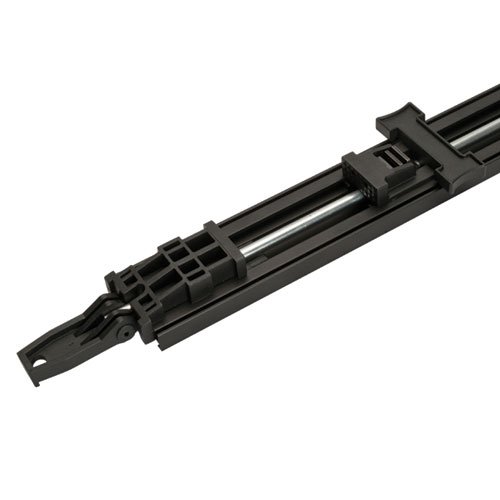

• Integral clamping jaws and a locking lever provide a quick way of clamping the guide batten.
• Ideal for holding and clamping work pieces.

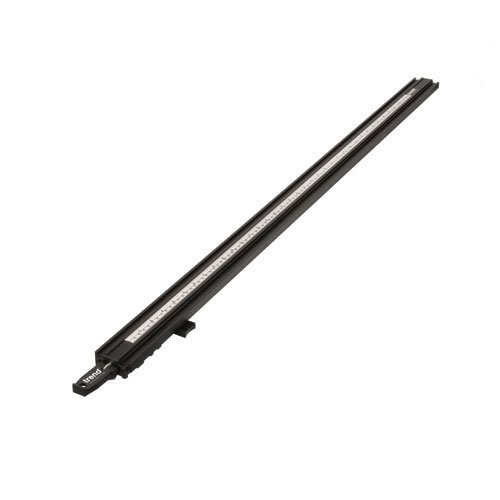

• Aluminium extrusion incorporating T-slots.
• The clamps are fitted with a metric/imperial scale for setting lengths and stop positions. Scale can be positioned by removing 20mm of the self adhesive backing.
• Three lengths of clamp available 24 inch, 36 inch and 50 inch.
• Router not included.
• Patent No. US7,007,731.

• Max clamp length: 36 inches (915 mm)
• Min clamp length: 1/2 inch (12.7 mm)
• Extrusion width: 54mm
• Extrusion height: 15.8mm
• Overall length: 1140mm
• Length fixed jaw to end of handle: 125mm
• Length max position of sliding jaw to clamp end: 98mm
• Sliding jaw finger wing width: 73mm
