TREND VJS/TG/JIG VJS TRENCHING/GROOVING JIG

X
Product Code: TREVJS/TG/JIG
Brand: Trend
In Offsite Stock - Delivery in 4 to 5 Days
£168.48 Inc. VAT
£140.40 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Qty
Trend











Trend Routing Workshop Jigs
Varijig Tenon & Grooving Jig
Ref: VJS/TG/JIG



Key Features

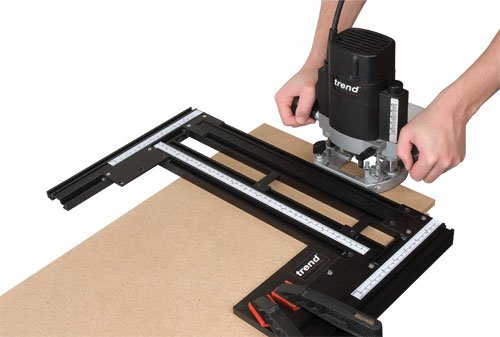

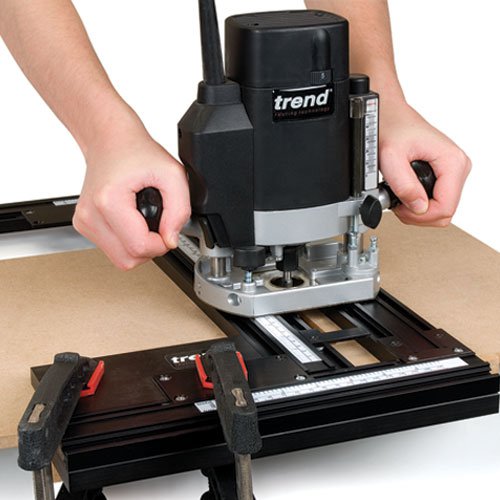

  • Allows grooves and tenons to be cut using a router

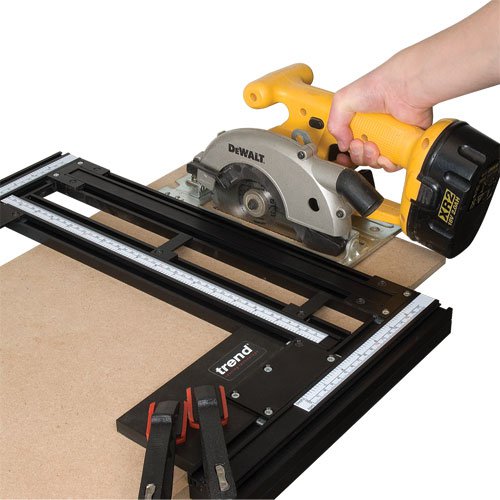

  • Can be used to crosscut boards with a router or circular saw
  • Frame is adjustable to allow narrower or wider grooves to be routed
  • The max. adjustment is 70mm depending on the diameter of the router base

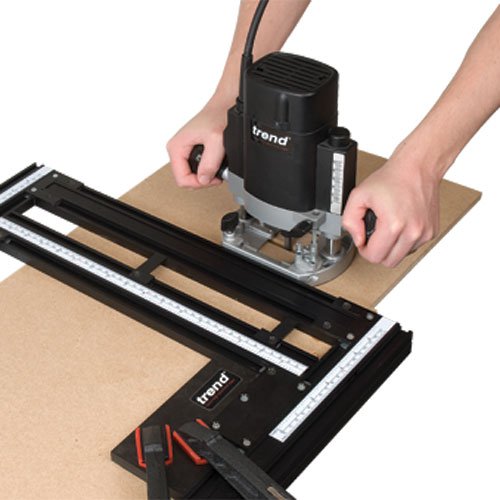

  • The edge of the frame can be used as a guide to trim a panel square using a router
  • Two sliding stops to set groove length
  • Squaring butt has the facility to accept a spelch block to allow a full-length groove
  • Fixing screws are included for this purpose. Working length is 400mm
  • Can be used with any plunge router fitted with a guide bush of minimum 8mm projetction
  • Router not included



Items included

  • 4 x Alloy extrusions
  • 4 x Corner brackets
  • 3 x Scales
  • 1 x Squaring butt
  • 2 x Length stops

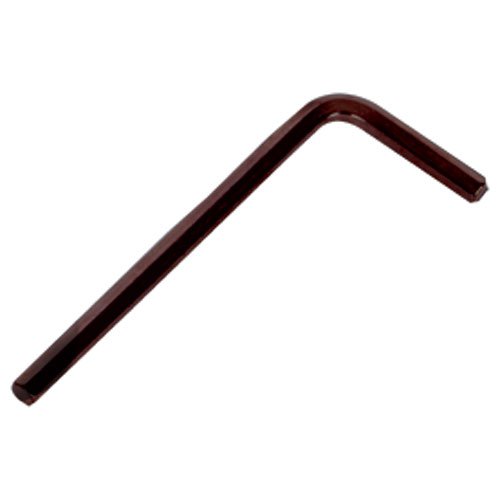

  • 1 x Hex key



Specification

  • Working length based on 30 mm guide bush and 12 mm diameter cutter being used:-
  • Max. without end stops used: 412 mm
  • Max. with one end stop used: 397 mm
  • Max. with two end stops used: 382 mm
  • Max. working width using end stops* (12mm dia. cutter): 18 mm
  • Max. width adjustment depending on router base diameter: 70 mm



Optional Accessories & Replacement Parts:

Description

Product Reference

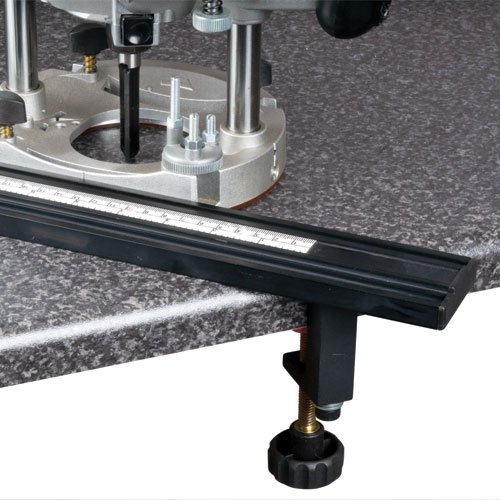

Sliding friction clamp kits (fit to extrusions)
1. Max. 32.0mm thickness (pair) VJS/CK
2. Max. 51.0mm thickness (pair) VJS/CK/L
3. Long pivot clamp kit - Sliding friction clamp head pivots to allow guide to be set at an angle. Max. 51mm thickness (pair) VJS/PCK/L
4. Frame joining kit - set of four corner jointing brackets. VJS/FJK
5. Additional extrusions - Extrusions that can be used on the Varijig System
310mm WP-VJS/07A
430mm WP-VJS/07B
700mm WP-VJS/07
1070mm WP-VJS/07C
6. Connecting block kit - Jointing block for extrusions. Can be used to join Varijig extrusions together. VJS/G/CB



Trend VJS/TG/JIG Manual
