TREND ZIP/20/100/3 - ZIPBOLT Compact Laminate Worktop Connector Kit (12-15mm)

X
Product Code: TRE/ZIP/20/100/3
Brand: Trend
In Offsite Stock - Delivery in 4 to 5 Days
£15.14 Inc. VAT
£12.61 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Qty
Trend

TREND ZIP/20/100/3 - ZIPBOLT Compact Laminate Worktop Connector Kit (12-15mm)



Key Features

  • Engineered by kitchen installers, for kitchen installers. With a unique patented design for easy worktop joining and over four times faster than conventional bolts to fit. Available in sizes to suit all types and thicknesses of worktop.
  • Zinc-Plated Steel Construction for long lasting strength and rust protection.

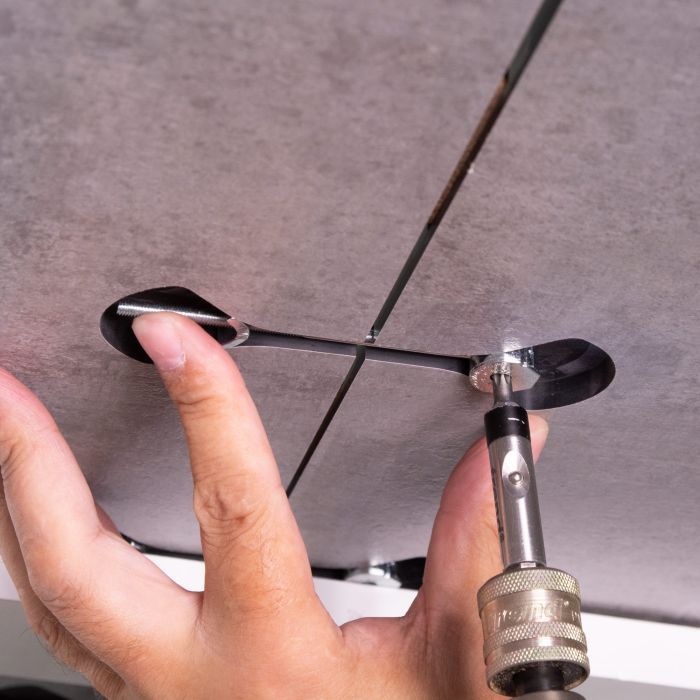

  • Robust Geared Head Mechanism is driven by a T25 Torx bit and tightens in seconds with one hand and a drill/driver.
  • Standard and Slimline ZIPBOLT kits also include 3 x ZIPCLIPS to speed up and further simplify installation.
  • ZIPCLIPS hold the bolt securely in the routed recess, preventing it from falling out before it is tightened.
  • Flexible Wings grip to hold the ZIPBOLT firmly in place.
  • Robust Geared Head Mechanism is driven by a 5mm or 6mm Hex bit or by a T25mm Torx bit (depending on which ZipBolt is being used) and tightens in seconds with one hand and a drill/driver.
  • Zinc-Plated Steel Construction for long-lasting strength and rust. ZIP/35/164/3 has a Heat-Treated End plate to handle high torque levels.

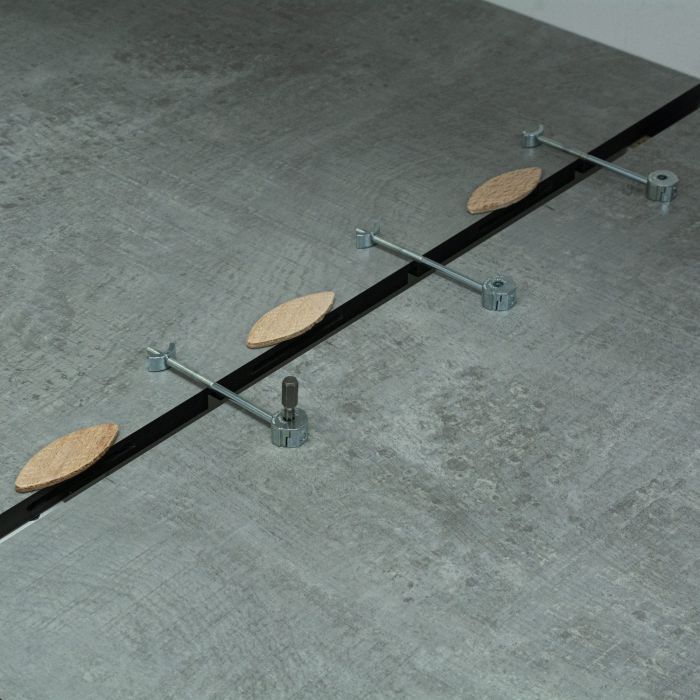

  • 3 Beechwood Biscuits are included to enhance the alignment, strength and finish of the joint.



Applications

  • Quick and easy installation method for all kitchen worktops, producing strong, stable and invisible joints.


Specification

  • Bolt Length=100 mm
  • Shank Diameter=4 mm
  • Geared Head Diameter= 20 mm
  • Guide Bush Required=30 mm
  • Cutter Diameter Required=6 mm
  • Min Cut Depth= 8 mm
  • Supplied Driver Bit=T25 Torx
  • Supplied Trend No.20 Biscuits=3
  • For Worktop Thicknesses=12-15 mm
  • Suitable for Compact Laminate

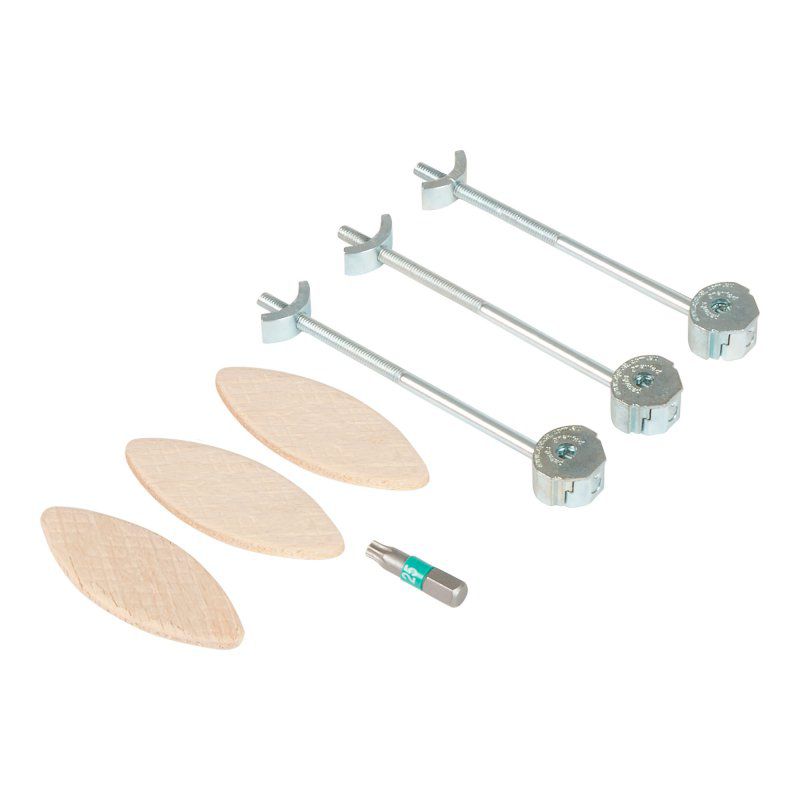

Items included

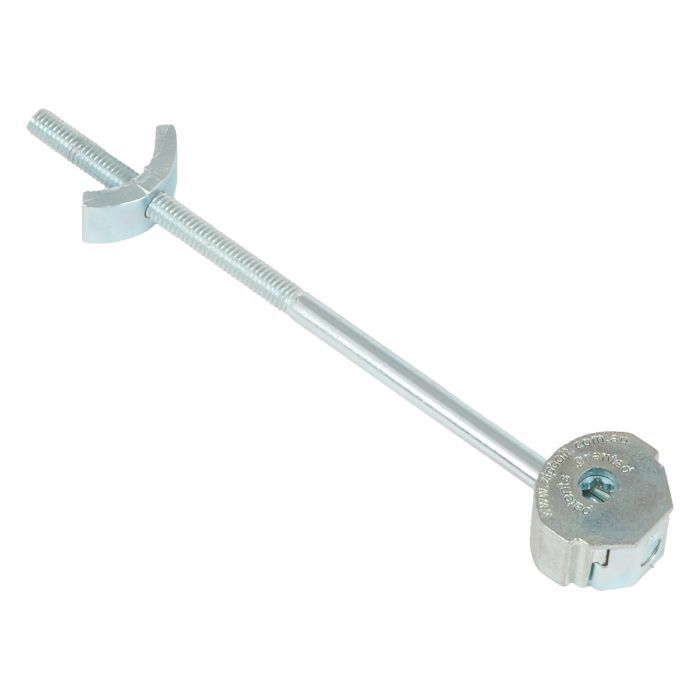

  • 3 x Trend Standard ZipBolts
  • 3 x ZipClips
  • 3 x Trend No. 20 Biscuits
  • 1 x 5mm Hex Bit

Additonal Parts Required: 1 x 12.7mm C153X1/2TC Router Cutter
