Tormek Wetstone Grinder
Tormek TT-50 Diamond Truing Tool

• Genuine diamonds mounted in holder
• Used to dress or open grindstones when the stone becomes grooved or glazed
• Easy to set up

• A cluster of genuine diamonds mounted in a holder and used to dress or open the grindstone when the stone becomes grooved or glazed. It takes only a few seconds to set up and can really improve the performance of the wheel. Dual knob screw permits an easily controlled feed across the stone for a perfect flat surface. If you feed faster, you can create a rougher surface which grinds more quickly. Mounts and locks instantly in the right position on the Universal Support of the TORMEK Sharpening System. The cutting depth is controlled by the Micro Adjust on the Universal Support. If you have an older machine without Micro Adjust it can be retrofitted by ordering the US-105.
• If your grindstone has become uneven, it is easily fixed with the Tormek Diamond Truing and Dressing Tool TT50. It will make your stone perfectly round and flat again.

TT-50 Design

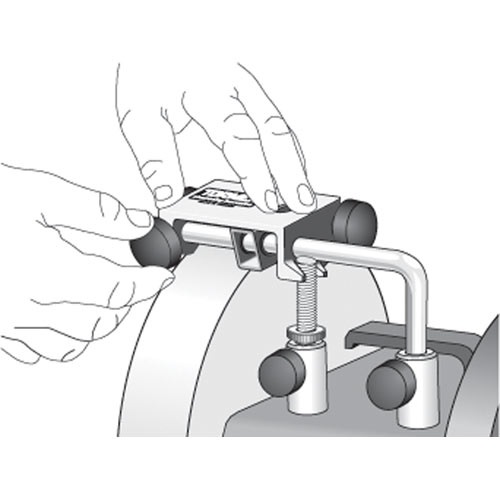

The tool is guided by the Universal Support which also guides the jigs, this ensures that the stone surface is always parallel to the tool fitted in the jig.

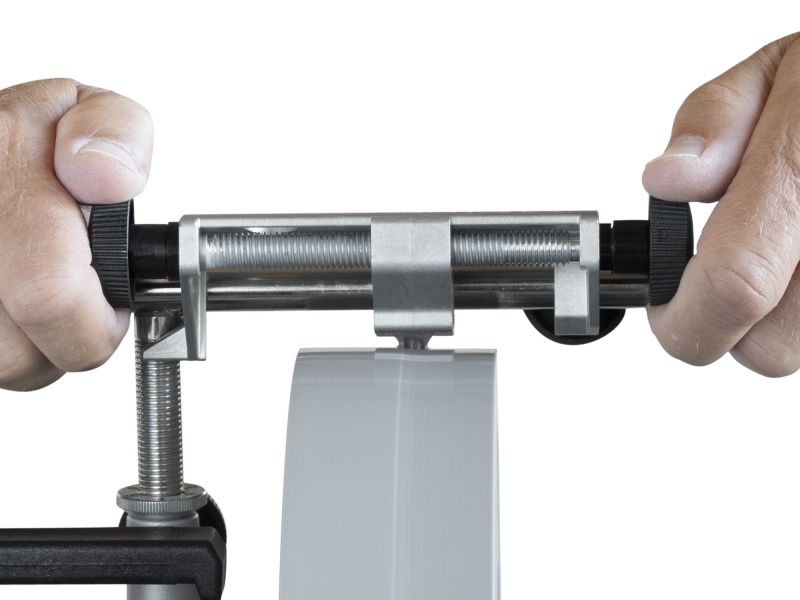

Easy feeding across the stone

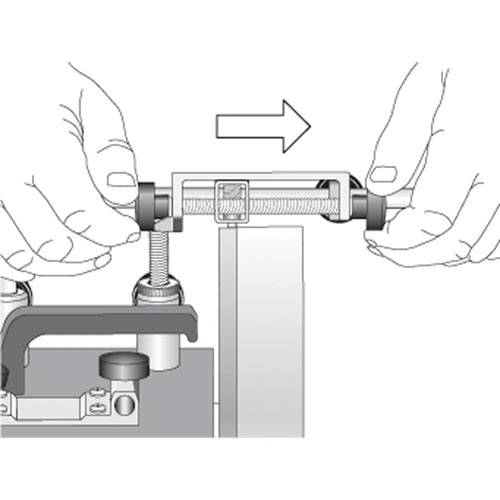

You conveniently feed the diamond cutter across the stone by alternately turning the two knobs with both your hands. Thanks to the controlled feed, you get an even and flat stone surface with no ridges.

Controlled cutting depth

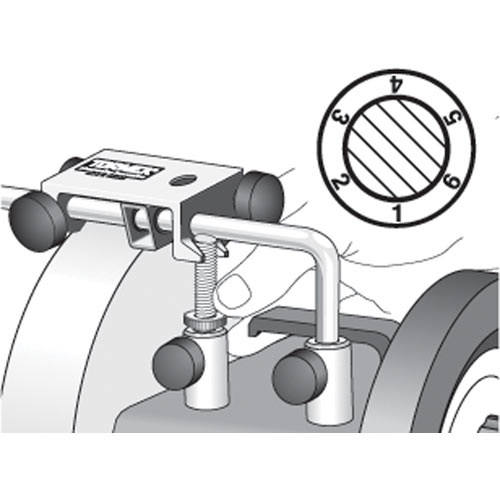

The cutting depth is set exactly by the Micro Adjust on the Universal Support. The scale has increments for each 0.25 mm or 0,.1". Watch the video for a demonstration on how it works.

Create a coarse or fine surface

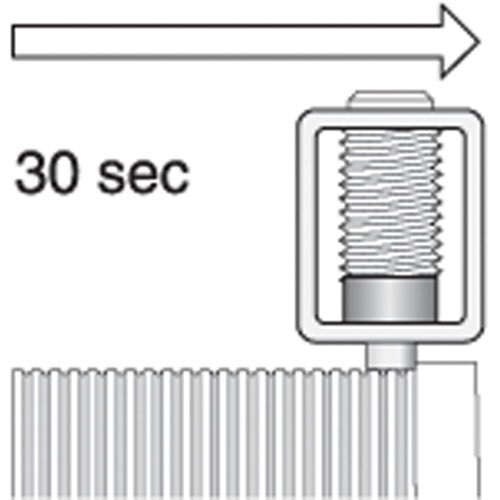

With a higher feed speed across the stone (approximately 30 seconds instead of 90 seconds) the surface will have pronounced grooves, which will cause the stone to grind faster. This is beneficial, when sharpening or shaping tools in hard steel with a large bevel area, e.g. turning skew chisels and electric jointer/planer blades.

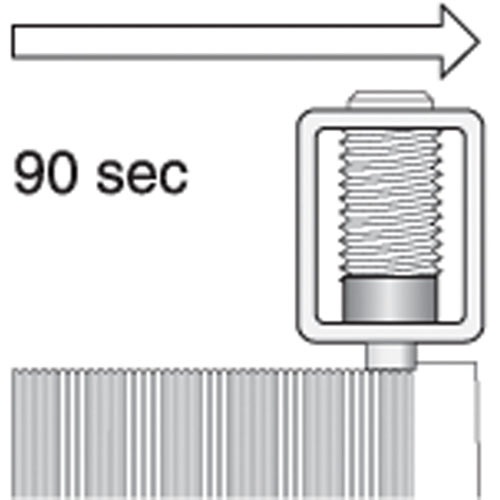

The slower you feed, the finer the surface you will achieve. A traverse time of 90 seconds across the stone gives you a good finish with hardly any visible grooves.

For earlier Tormek models

If you have an older machine, which has no Micro Adjust on the Universal Support, you can update your machine with the new Universal Support US-105 or US-103 for the 200 mm stone models.

Easy to use

The mounting and use of this latest Tormek innovation is very easy and straightforward as you can see in these instructions, which come with the tool.

	TT-50 Diamond Truing Tool Instructions
	TT-50 Diamond Truing Tool Parts List
