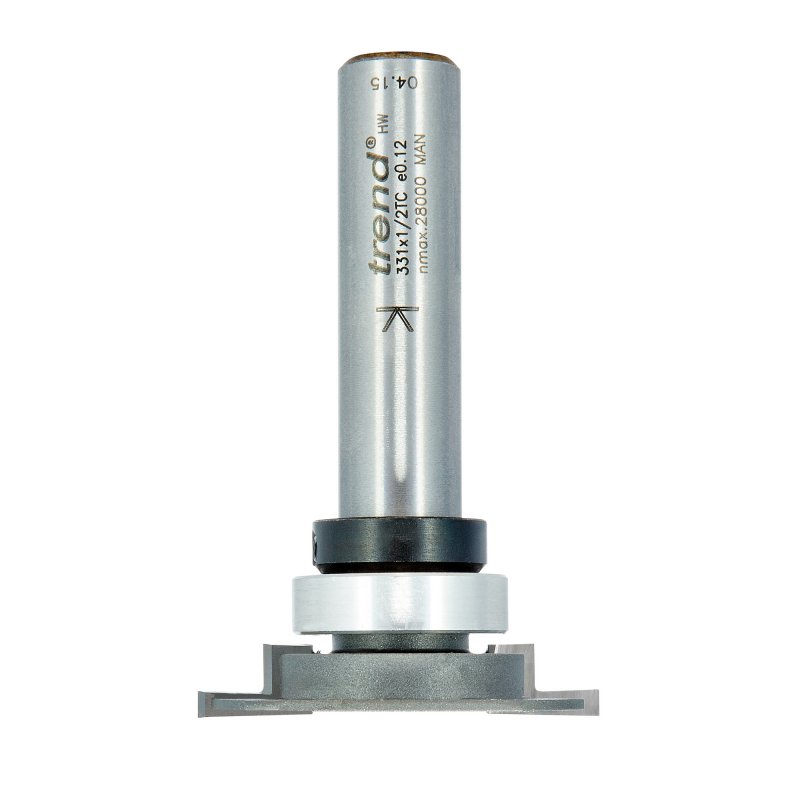

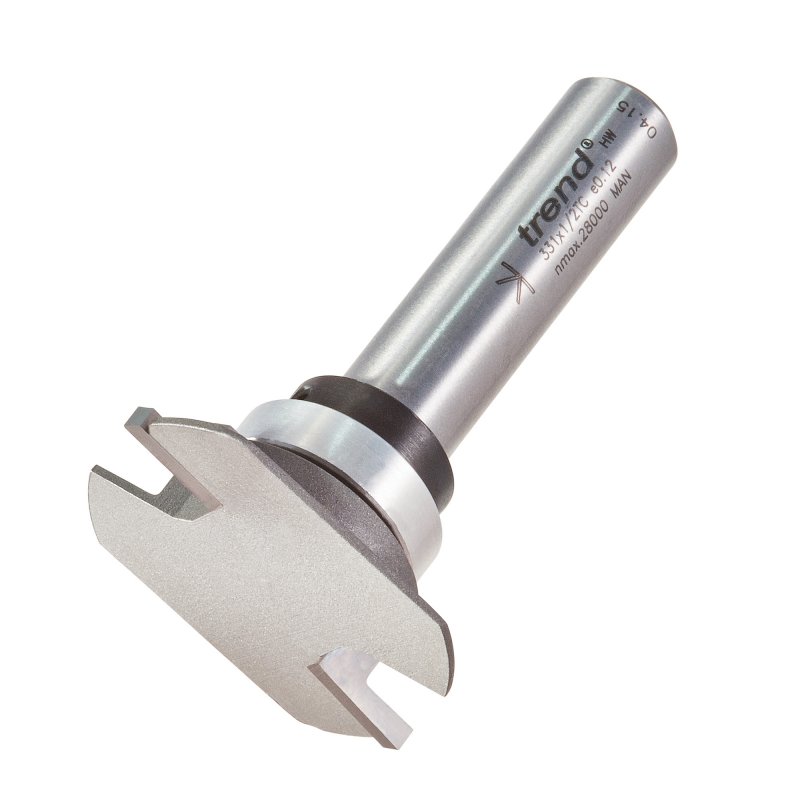

Trend 331x1/2TC Pro Guided Aquamac 63 / Aquatex P6 Recesser Router Cutter 1/2 shank

Trend Professional Weatherseal Router Cutters
Bearing Guided Aquamac 63 & Aquatex P6 Style Recesser
Ref: 331X1/2TC

• Trend Aquamac 63 Recessing sets Ref.330 and 331 are designed to accomodate the popular Schlegel Aquamac 63 weather strip system and allows for a particuraly small gap between the sash and frame
• The slot can be positioned part way down the side of the rebate, or at the bottom of the rebate
• Ref. 330 has no bearing guide
• Ref. 331 comes complete with a guide-bearing to reduce setting-up time
• MEC mechanical feed only

• D: 41.3 mm (metric diameter)
• D2: 28.3 mm (metric diameter)
• C: 4.8 mm (metric cut length)
• C2: 2.7 mm (metric cut length)
• OL: 67 mm (overall length)
• B: 22 mm (metric bearing diameter)
• Shank Diameter: 1/2 inch
