Trend 342X1/2TC Pro Guided Biscuit Jointer Router Cutter Set - 1/2 shank

Trend Professional Slotting & Grooving Cutters

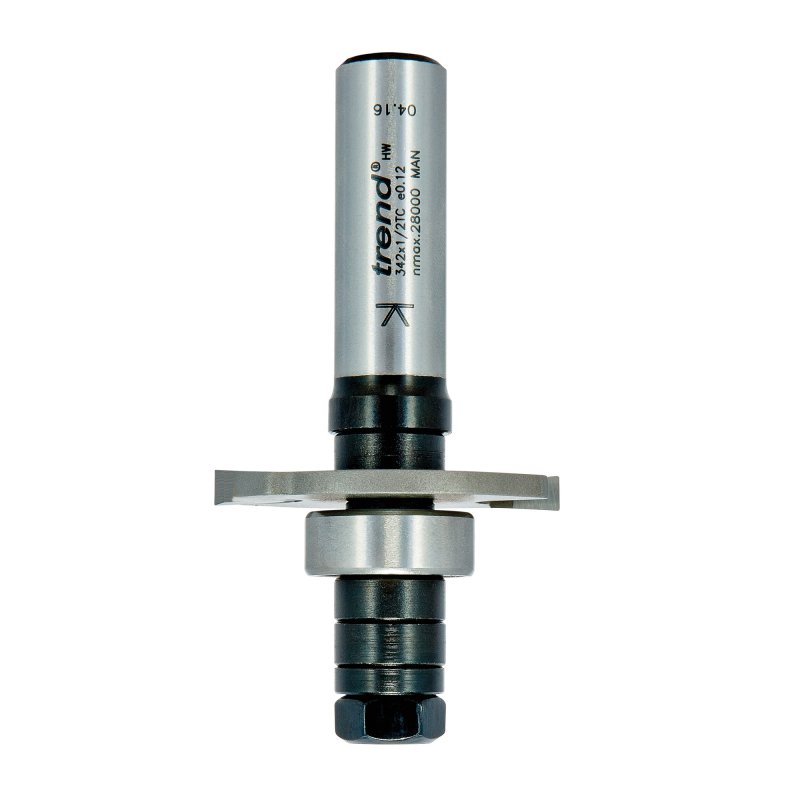

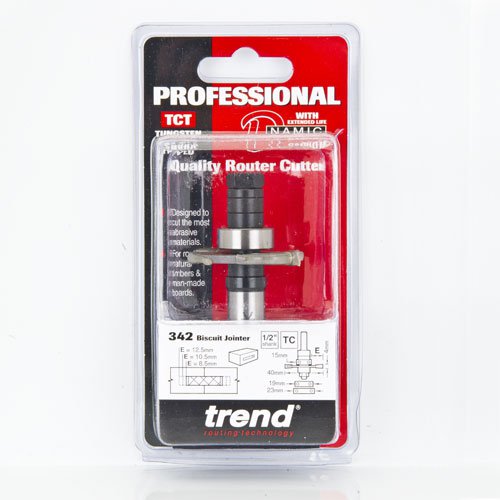

342X1/2TC - Guided Biscuit Jointer Set

• For biscuit jointing of timber, man-made fibre and particle board with the router
• The set includes three sizes of bearing which set the correct depth of cut for the three sizes available
• A slightly longer cut than the length of the biscuit is required to allow some lateral play for easy alignment during assembley
• A water based glue (PVA) is used with the biscuits which will expand as the moisture is absorbed
• Boards are simply clamped together until glue is cured
• For larger boards, biscuits can be doubled up by making two passes

• D: 40 mm (metric diameter)
• C: 4 mm (metric cut length)
• B: 15 mm (metric bearing diameter)
• B2: 19 mm (metric bearing diameter)
• B3: 23 mm (metric bearing diameter)
• OL: 76 mm (overall length)
• Shank Diameter: 1/2 inch
• Groove Depths: 8.5 mm, 10.5 mm, 12.5 mm
• For biscuit sizes: No.0,10 & 20

Trend 342 Biscuit Jointer Set Instructions
