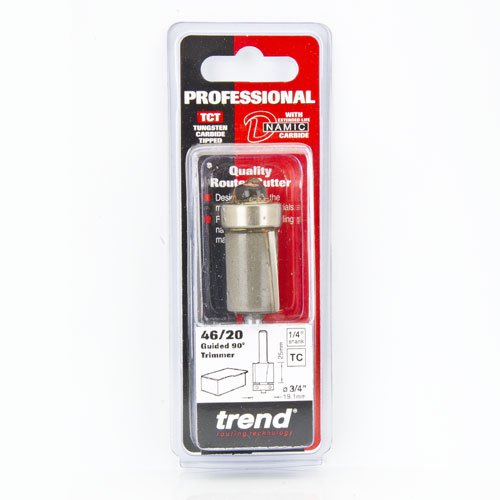

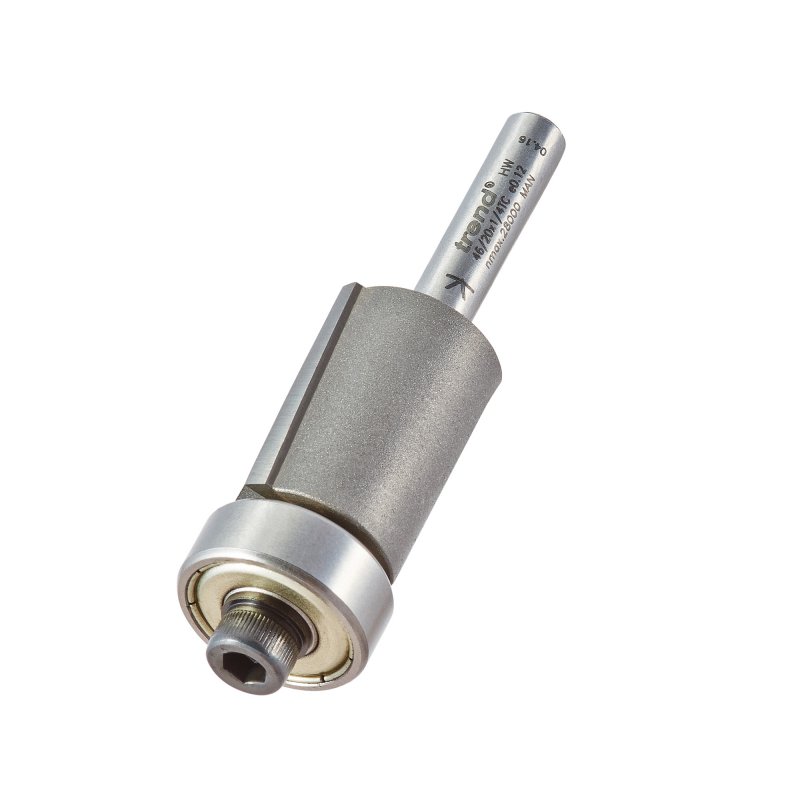

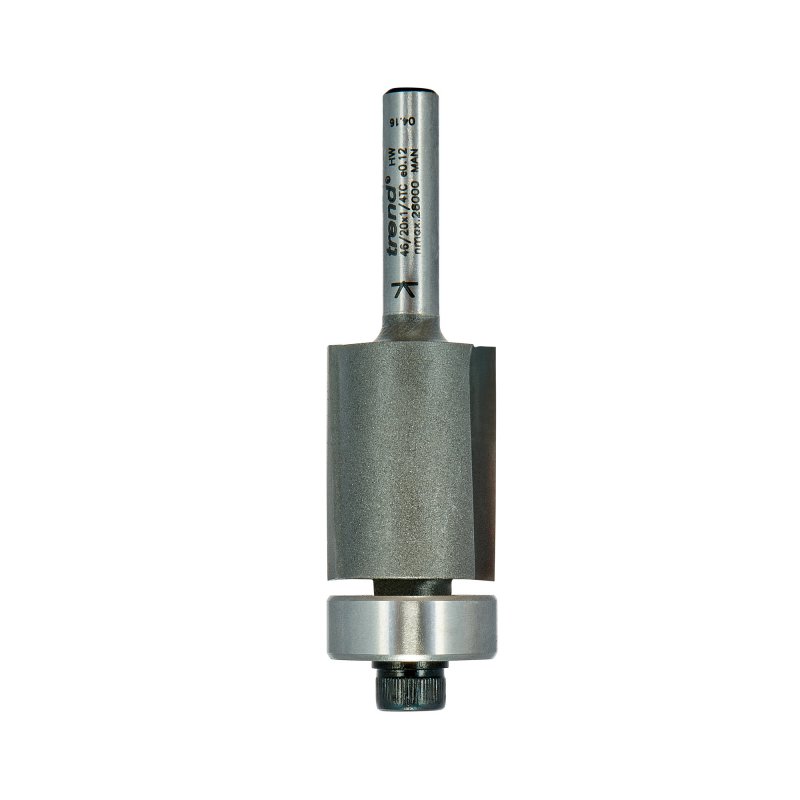

Trend 46/20x1/4TC Pro Guided Trimmer Router Cutter 19.1mm dia x 25mm cut x 1/4 shank

Trend Professional 90 Degree Trimmer
46/20X1/4TC - Trimming Router Cutter
19.1mm Diameter x 25mm Cut x 1/4" Shank

• Self-guiding trimmers with bearings mounted on end of cutter
• For trimming plastic or plywood overlay
• For copy profiling, use the bearing to follow a template or base edge of board
• An approximate 3mm overlap should be left before copy profiling. When using plastic laminate adhesive to dry before trimming. This avoids clogging the guide bearing
• Refs. T46/1, 46/2 and 46/20 are downcut to prevent breakout on veneer
• Ref. 46/211 has a sleeved bearing to allow for regrinds in case of resharpening

• D: 3/4 inch (imperial diameter)
• D: 19.1 mm (metric diameter)
• C: 25 mm (metric cut length)
• OL: 69 mm (overall length)
• A; 90 degrees (angle)
• B: 19.1 mm (metric bearing diameter)
• Shank Diameter: 1/4 inch
• Shear: 5 degrees
