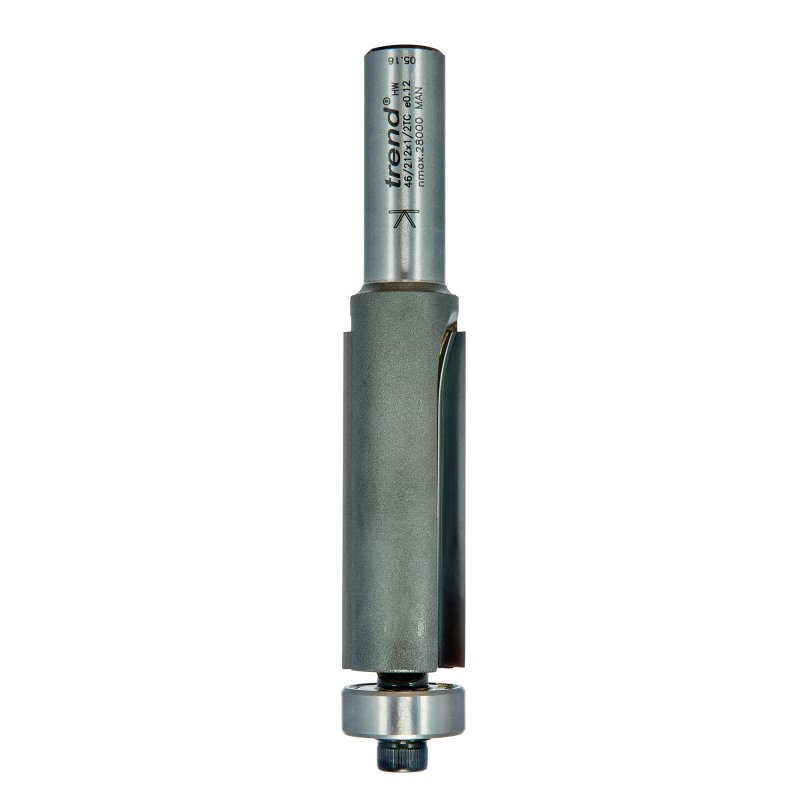

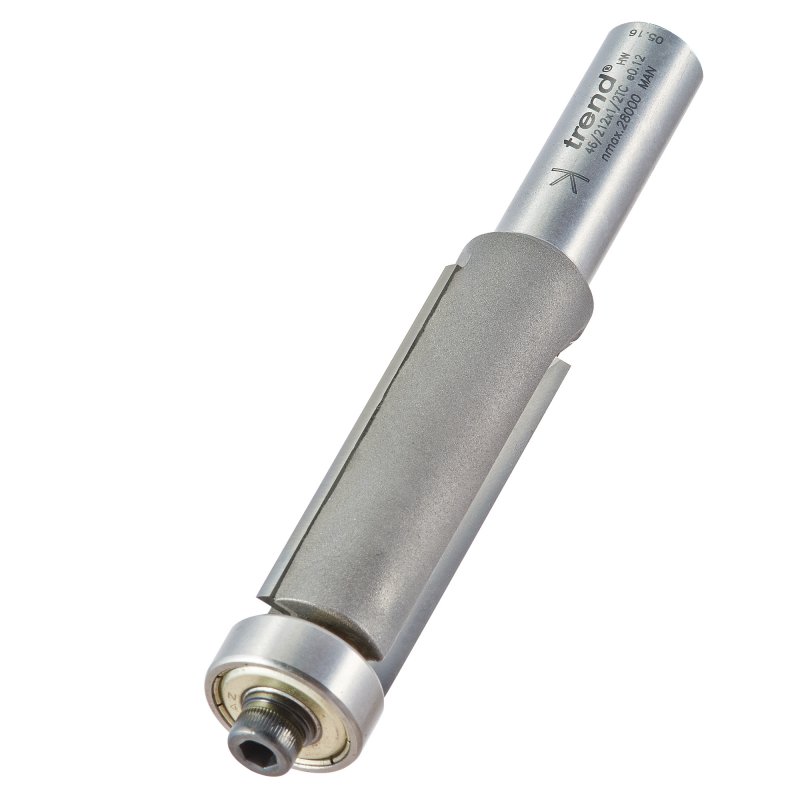

Trend 46/212x1/2TC Pro Guided Trimmer Router Cutter 19.1mm dia x 50mm cut x 1/2 shank

Trend Professional 90 Degree Trimmer
46/212X1/2TC - Trimming Router Cutter
19.1mm Diameter x 50mm Cut x 1/2" Shank

• Self-guiding trimmers with bearings mounted on end of cutter
• For trimming plastic or plywood overlay
• For copy profiling, use the bearing to follow a template or base edge of board
• An approximate 3mm overlap should be left before copy profiling. When using plastic laminate adhesive to dry before trimming. This avoids clogging the guide bearing
• Refs. T46/1, 46/2 and 46/20 are downcut to prevent breakout on veneer
• Ref. 46/211 has a sleeved bearing to allow for regrinds in case of resharpening

• D: 3/4 inch (imperial diameter)
• D: 19.1 mm (metric diameter)
• C: 2 inches (imperial cut length)
• C: 50 mm (metric cut length)
• OL: 116 mm (overall length)
• A; 90 degrees (angle)
• B: 19.1 mm (metric bearing diameter)
• Shank Diameter: 1/2 inch
