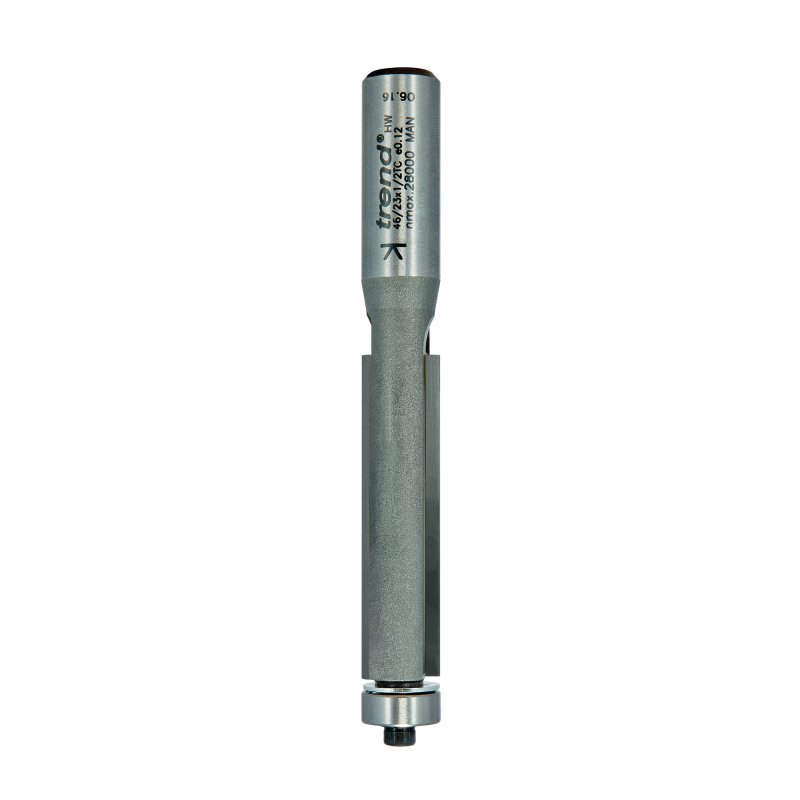

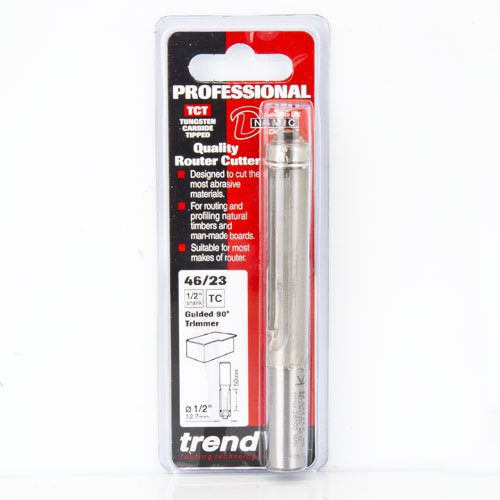

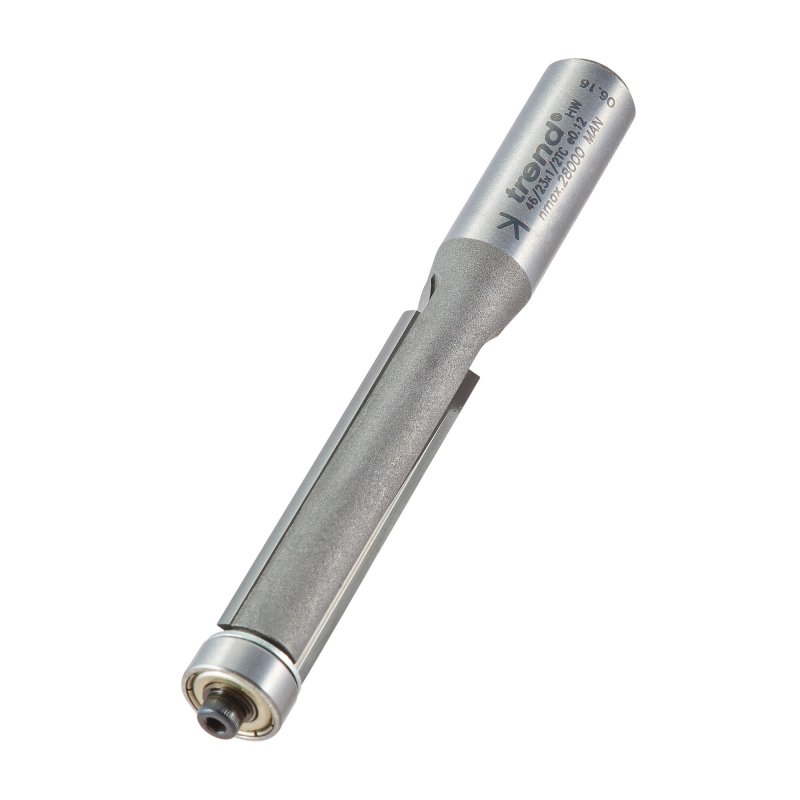

Trend 46/23x1/2TC Pro Guided Trimmer Router Cutter 12.7mm dia x 50mm cut x 1/2 shank

Trend Professional 90 Degree Trimmer
46/23X1/2TC - Trimming Router Cutter
12.7mm Diameter x 50mm Cut x 1/2" Shank

• Self-guiding trimmers with bearings mounted on end of cutter

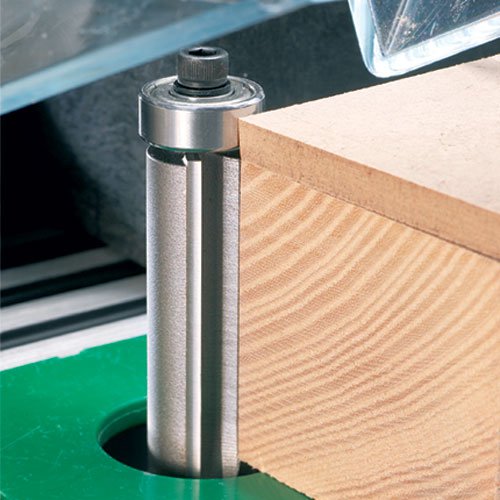

• For trimming plastic or plywood overlay. For copy profiling, use the bearing to follow a template or base edge of board
• An approximate 3mm overlap should be left before copy profiling
• When using plastic laminate adhesive to dry before trimming
• This avoids clogging the guide bearing
• Refs. T46/1, 46/2 and 46/20 are downcut to prevent breakout on veneer
• Ref. 46/211 has a sleeved bearing to allow for regrinds in case of resharpening

• D: 1/2 inch (imperial diameter)
• D: 12.7 mm (metric diameter)
• C: 51 mm (metric cut length)
• B: 12.7 mm (metric bearing diameter)
• A: 90 degrees (angle)
• OL: 106 mm (overall length)
• Shank Diameter: 1/2 inch
• Grade: TCT (Tungsten Carbide Tipped).
