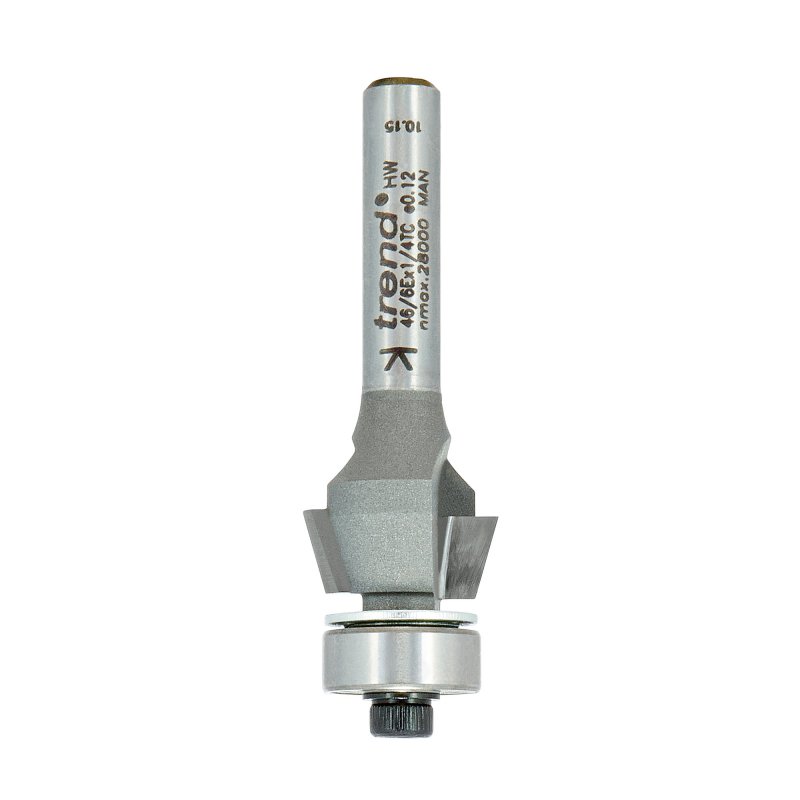

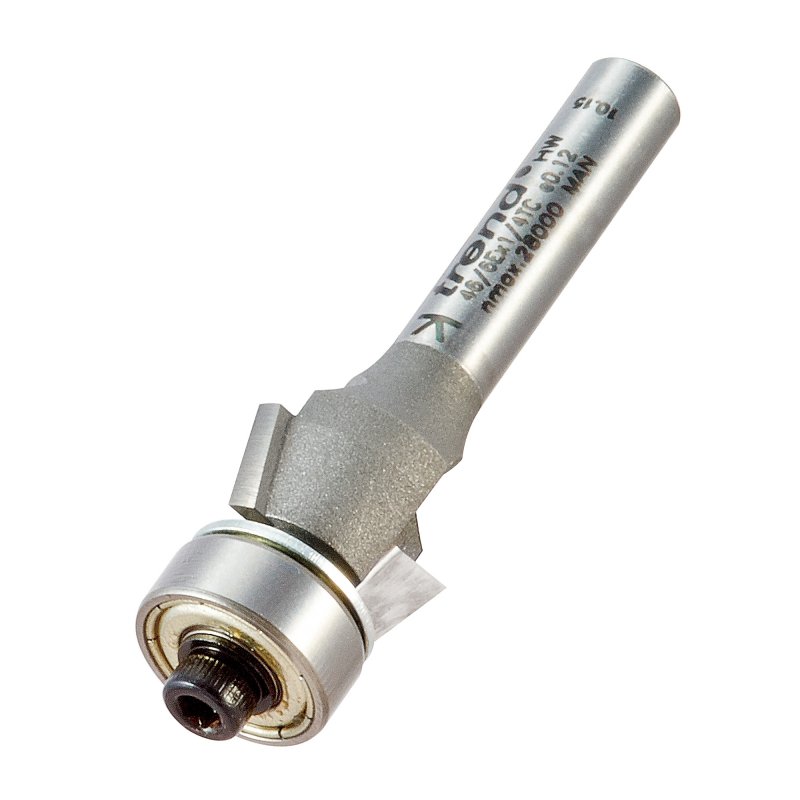

Trend 46/6Ex1/4TC Pro Guided Bevel Trimmer Router Cutter 75 deg x 15.9mm dia x 1/4 shank

Trend Professional Bevel Laminate Trimmer
46/6EX1/4TC - Bevel Trim Cutter
15.9mm Diameter x 6.3mm Cut x 1/4" Shank

• For trimming top & lip
• Economical cutters, perform 3 functions
• 1. To top trim the overlay at 90 degrees
• 2. To trim the overlay at 45 degrees or 60 degrees
• 3. The base of the cutter can trim the vertical lipping at 90 degrees
• Requires side fence or roller bearing

• D: 5/8 inch (imperial diameter)
• D: 15.9 mm (metric diameter)
• C: 1/4 inches (imperial cut length)
• C: 6.3 mm (metric cut length)
• B: 1/2 inches (imperial bearing diameter)
• B: 12.7 mm (metric bearing diameter)

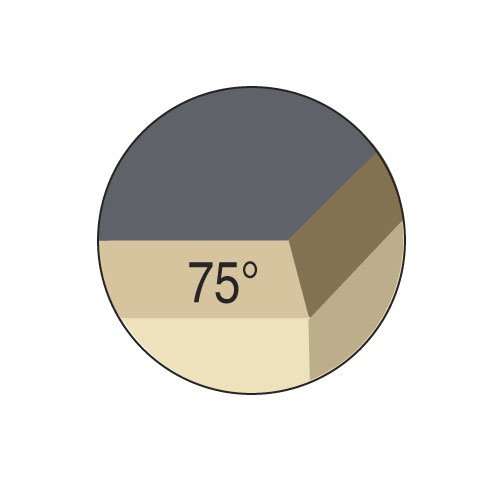

• A: 75 degrees (angle)
• OL: 53 mm (overall length)
• Shank Diameter: 1/4 inch
